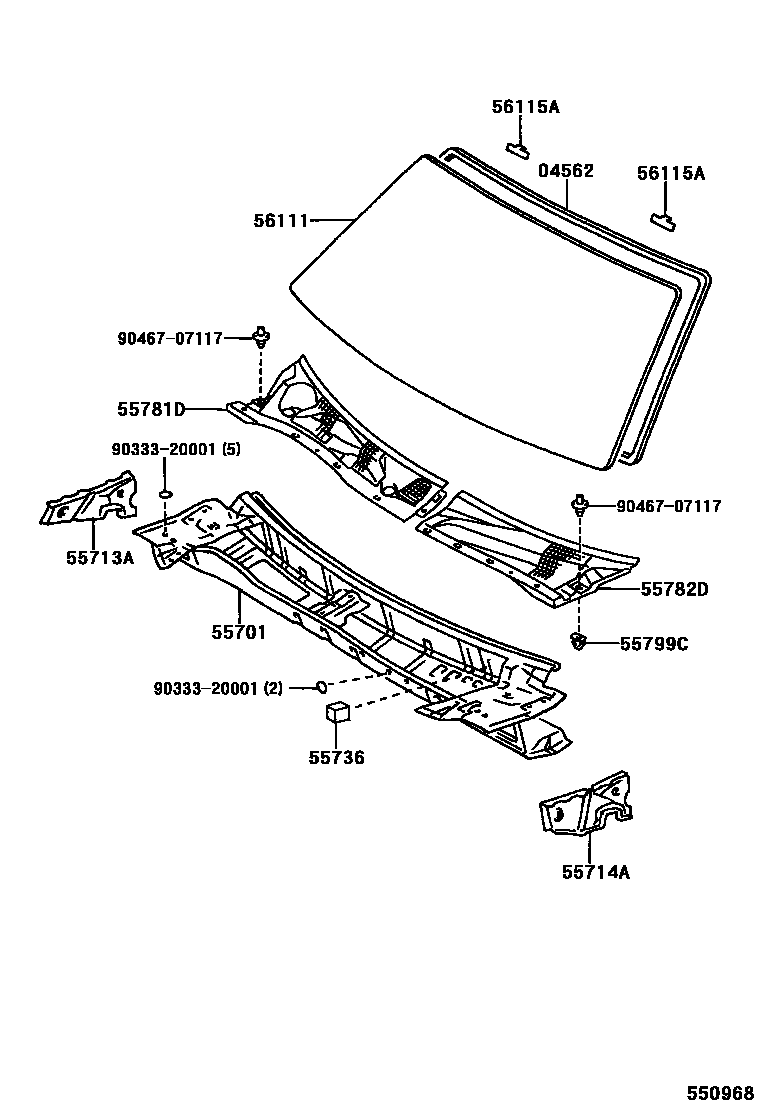

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCV2#,SXV2#199612

55701PANEL SUB-ASSY, COWL

main55700-33100iMCV2#,SXV2#199612

55713APANEL, COWL TOP SIDE, RH

main55713-33020iMCV2#,SXV2#199612

55714APANEL, COWL TOP SIDE, LH

main55714-33020iMCV2#,SXV2#199612

55736SEAL, WATER GUARD PLATE

main55736-33010iMCV2#,SXV2#199810-199902

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-33130iMCV2#,SXV2#199612-199810

sub55781-33131

main55781-33131iMCV2#,SXV2#199810-199908

main55781-33161iMCV2#,SXV2#199908-200109

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-33130iMCV2#,SXV2#199612-199810

sub55782-33131

main55782-33131iMCV2#,SXV2#199810-199901

sub55782-33132

main55782-33132iMCV2#,SXV2#199901-199908

main55782-33162iMCV2#,SXV2#199908

main55782-33211iMCV2#,SXV2#199908

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-33010iMCV21,SXV2#..SED199810-199908

56111GLASS, WINDSHIELD

main56101-0W020iMCV2#,SXV2#199612-199801

sub56101-0W021

sub56115-30100

main56101-0W021iMCV2#,SXV2#199801-200106

sub56101-33290

main56101-33170iMCV2#,SXV2#199612-199801

sub56101-33171

sub56115-30100

main56101-33171iMCV2#,SXV2#199801

main56101-33290iMCV2#,SXV2#200106

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMCV2#,SXV2#199910

main56115-33020iMCV2#,SXV2#199612-199801

main56115-33040iMCV2#,SXV2#199801-199910

sub56115-30100

sub56116-22050

9033320001

main90333-20001

9046707117

main90467-07117

12 parts on this diagram · 1 diagram in section
