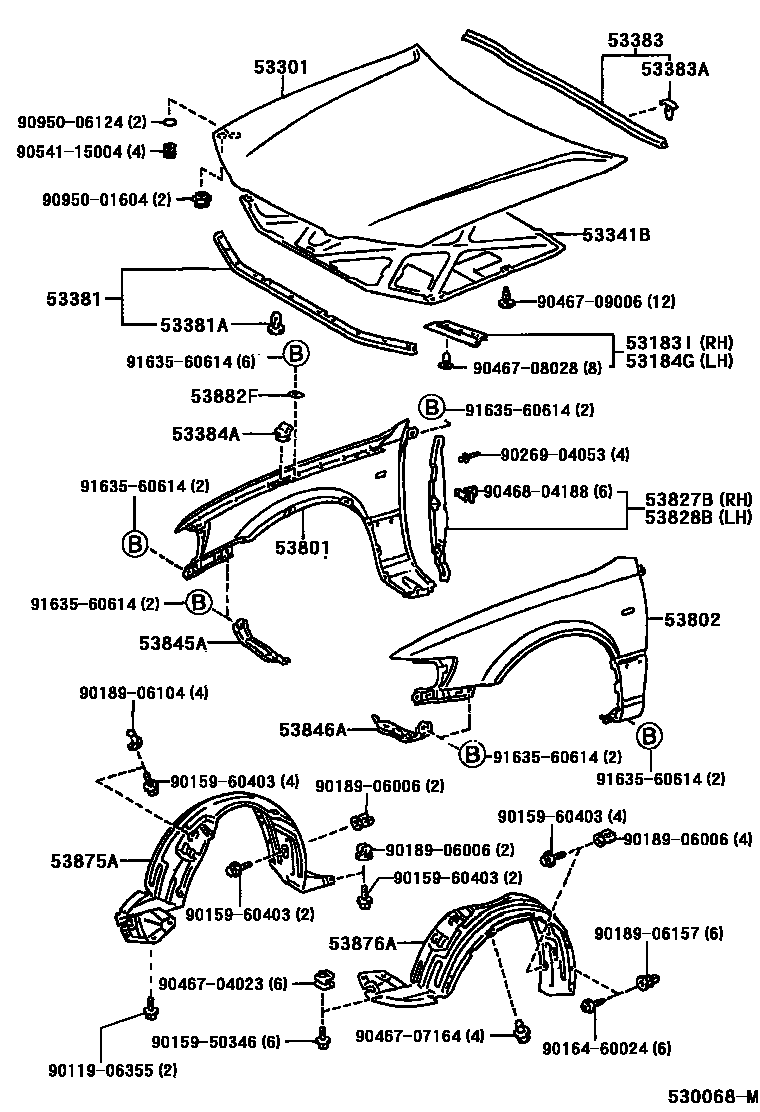

HOOD & FRONT FENDER

53183ISEAL, HEADLAMP COVER, RH

main53183-33040iMCV2#,SXV2#199612

53184GSEAL, HEADLAMP COVER, LH

main53184-33040iMCV2#,SXV2#199612

53301HOOD SUB-ASSY

main53301-33030iMCV2#,SXV2#199612-199805

sub53301-33031

main53301-33031iMCV2#,SXV2#199805-199808

sub53301-33032

main53301-33032iMCV2#,SXV2#199808-199908

sub53301-33060

main53301-33060iMCV2#,SXV2#199908-199911

sub53301-33061

main53301-33061iMCV2#,SXV2#199911

53341BINSULATOR, HOOD

main53341-33070iMCV2#,SXV2#199612-199805

sub53341-33071

main53341-33071iMCV2#,SXV2#199805

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33020iMCV2#,SXV2#199612

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMCV2#,SXV2#199612

53383SEAL, HOOD TO COWL TOP

main53383-33020iMCV2#,SXV2#199612-199908

main53383-33040iMCV2#,SXV2#199908

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08101iMCV2#,SXV2#199612-199908

53384ABUMPER, FENDER TO HOOD

main53384-33010iMCV2#,SXV2#199612-199908

53801FENDER SUB-ASSY, FRONT RH

main53811-33080iMCV2#,SXV2#199612

53802FENDER SUB-ASSY, FRONT LH

main53812-33080iMCV2#,SXV2#199612

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-33040iMCV2#,SXV2#199903-200003

sub53827-33041

main53827-33041iMCV2#,SXV2#200003-200004

sub53827-33042

sub90269-04053

main53827-33042iMCV2#,SXV2#200004

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33040iMCV2#,SXV2#199903-200003

sub53828-33041

main53828-33041iMCV2#,SXV2#200003-200004

sub53828-33042

sub90269-04053

main53828-33042iMCV2#,SXV2#200004

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33040iMCV2#,SXV2#199612

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33030iMCV2#,SXV2#199612

53875ALINER, FRONT FENDER, RH

main53875-33070iMCV2#,SXV2#199612-199908

main53875-33071iMCV2#,SXV2#199908

53876ALINER, FRONT FENDER, LH

main53876-33070iMCV2#,SXV2#199612-199908

main53876-33071iMCV2#,SXV2#199908

53882FSEAL, FRONT FENDER

main53882-16030iMCV2#,SXV2#199612

9011906355

main90119-06355

9015950346

main90159-50346

9015960403

main90159-60403

9016460024

main90164-60024

9018906006

main90189-06006

9018906104

main90189-06104

9018906157

main90189-06157

9026904053

main90269-04053

9046704023

main90467-04023

9046707164

main90467-07164

9046708028

main90467-08028

9046709006

main90467-09006

9046804188

main90468-04188

9054115004

main90541-15004

9095001604

main90950-01604

9095006124

main90950-06124

9163560614

main91635-60614

35 parts on this diagram · 1 diagram in section
