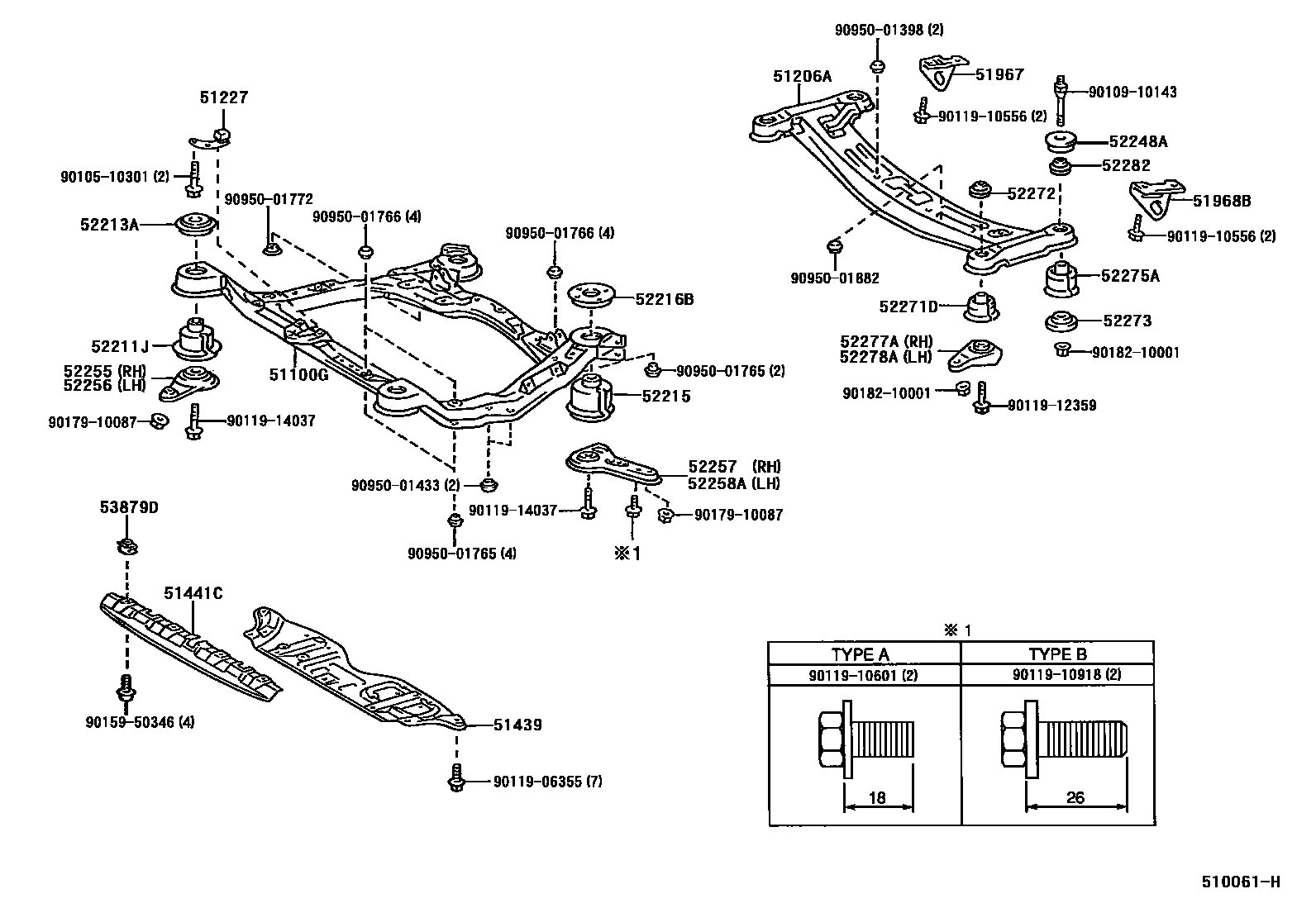

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51100GFRAME ASSY, FRONT

main51100-33020iMCV25,SXV25¥87,000199706-199906

sub51100-48010¥63,200

main51100-33030iMCV21,SXV20¥86,700199612-199906

main51100-33040iMCV25,SXV25¥95,400199906-200105

sub51100-48010¥63,200

main51100-33050iMCV21,SXV20¥86,800199906-200109

sub51100-33030¥86,700

main51100-48010iMCV25,SXV25¥63,200200105-200109

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33020iMCV21,SXV20¥28,700199612-199710

sub51206-33021¥28,800

main51206-33021iMCV21,SXV20¥28,800199710-199808

sub51206-33022¥28,800

main51206-33022iMCV21,SXV20¥28,800199808-199901

sub51206-33040¥28,800

main51206-33030iMCV25,SXV25¥70,600199706-199908

sub51206-33050¥70,800

main51206-33040iMCV21,SXV20¥28,800199901

main51206-33050iMCV25,SXV25¥70,800199908

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-33030iSXV20..WG¥4,150199612-199808

main51227-33060iMCV21¥5,300199808

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-33010iMCV21,SXV20¥10,700199612

main51439-33030iMCV25,SXV25¥10,800199706

51441CCOVER, ENGINE UNDER, RH

main51441-33030iMCV2#,SXV2#¥1,700199612

51967HOOK, TRANSPORT, REAR

main51968-33010iMCV2#,SXV2#..WG¥1,090199612-199908

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iMCV2#,SXV2#¥1,090199612-199908

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33010iMCV21,SXV20¥5,800199612

main52211-33050iMCV25,SXV25¥4,630199706

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33010iMCV21,SXV20¥1,590199612

main52213-33050iMCV25,SXV25¥1,980199706

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33010iMCV21,SXV20¥4,810199612-199908

main52215-33050iMCV25,SXV25¥5,400199706

main52215-33060iMCV21,SXV20¥5,200199908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020iMCV21,SXV20¥1,970199612

main52216-33050iMCV25,SXV25¥2,970199706

52248ACOLLAR, BODY MOUNTING, REAR

main52248-33010iMCV21,SXV20..SED¥320199901

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33020iMCV21,SXV20¥2,130199612-199708

main52255-33020iMCV21,SXV20..WG¥2,130199708-200006

main52255-33030iMCV25,SXV25¥2,410199706

main52255-33040iMCV21,SXV20¥2,150199708-200006

PLANT NO. Q11

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33020iMCV21,SXV20¥2,130199708-200006

main52256-33020iMCV21,SXV20¥2,130199612-199708

main52256-33030iMCV25,SXV25¥2,410199706

main52256-33040iMCV21,SXV20..SED¥2,150199708-200006

PLANT NO. Q11

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV21,SXV20..SED¥3,940199708-200006

main51023-33010iMCV21,SXV20¥3,940199612-199708

main51023-33020iMCV25,SXV25¥3,940199706

main51023-33030iMCV21,SXV20¥3,940199708-200006

PLANT NO. Q11

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV21,SXV20..WG¥3,940199708-200006

main51024-33010iMCV21,SXV20¥3,940199612-199708

main51024-33020iMCV25,SXV25¥3,940199706

main51024-33030iMCV21,SXV20¥3,940199708-200006

PLANT NO. Q11

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32050iMCV21,SXV20¥2,190199612

main52271-33020iMCV25,SXV25¥4,570199706

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iMCV25,SXV25¥810199706

main52272-33010iMCV21,SXV20¥1,000199612-199908

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-32010iMCV21,SXV20¥480199612-200107

main52273-33010iMCV21,SXV20¥690200107-200109

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-32050iMCV21,SXV20..SED¥2,320199612

main52275-33030iMCV21,SXV20..WG¥2,490199612

main52275-33040iMCV25,SXV25¥4,930199706

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV21,SXV20¥2,300199612-200107

main52203-33020iMCV21,SXV20¥2,690200107-200109

main52277-32010iMCV25,SXV25¥1,350199706-200109

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV21,SXV20¥2,300199612-200107

main52204-33020iMCV21,SXV20¥2,690200107-200109

main52277-32010iMCV25,SXV25¥1,350199706-200109

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33030iMCV21,SXV20¥810199612-199908

53879DRETAINER, FRONT FENDER LINER

main53879-20020iMCV2#,SXV2#¥280199612

9010510301

main90105-10301¥110

9010910143

main90109-10143¥520

9011906355

main90119-06355¥160

9011910556

main90119-10556¥230

9011910601

main90119-10601¥90

9011910918

main90119-10918¥100

9011912359

main90119-12359¥410

9011914037

main90119-14037¥610

9015950346

main90159-50346¥60

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

9095001398

main90950-01398¥100

9095001433

main90950-01433¥190

9095001765

main90950-01765¥120

9095001766

main90950-01766¥110

9095001772

main90950-01772¥200

9095001882

main90950-01882¥140

41 parts on this diagram · 2 diagrams in section
