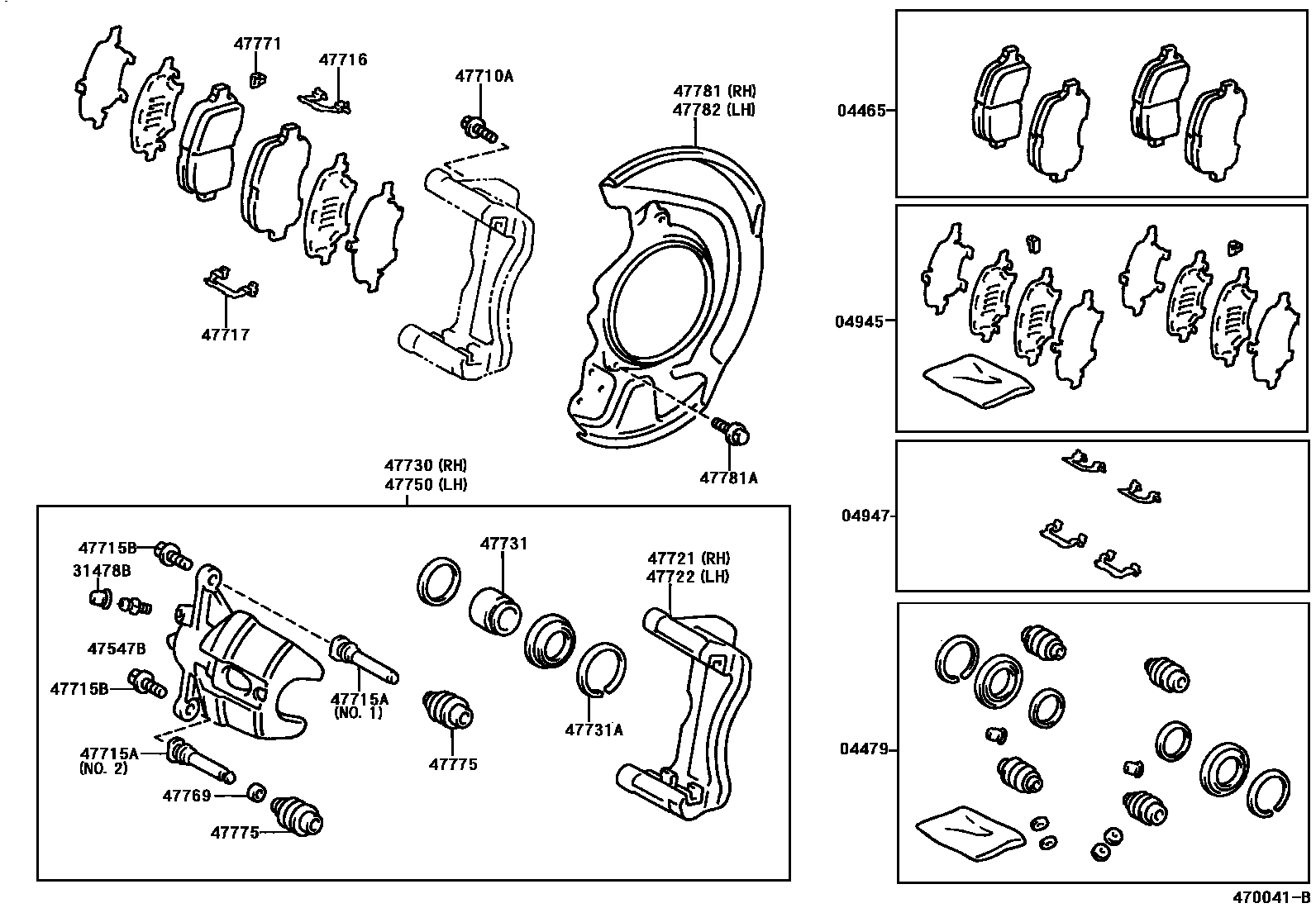

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33020iSXV20..WG199612-199812

main04465-33021iSXV20..WG199812-199908

main04465-33120iMCV2#,SXV25199612-199812

sub04465-33121

main04465-33121iMCV2#,SXV25199812-199908

main04465-33180iMCV2#,SXV25199908

main04465-33210iSXV20..SED199612-199908

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20170iSXV20199612

main04479-33130iMCV2#,SXV25199612

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33030iSXV20199612

main04945-33040iMCV2#,SXV25199612

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33110iSXV20199612

main04947-33120iMCV2#,SXV25199612-199908

main04947-33160iMCV2#,SXV25199908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCV2#,SXV2#199612

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMCV2#,SXV2#199612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMCV2#,SXV2#199612

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iSXV20200103

main47715-22080iSXV20200103

main47715-33030iMCV2#,SXV25199612-199908

sub47715-48010

main47715-33040iMCV2#,SXV25199612-199908

sub47715-48020

main47715-48010iMCV2#,SXV25199908

main47715-48020iMCV2#,SXV25199908

main47715-50010iSXV20199612-200103

main47715-50030iSXV20199612-200103

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iSXV20;MCV21..SED199612-199708

main90105-08346iMCV2#,SXV25199612-199708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33050iSXV20199612

main47716-33080iMCV2#,SXV25199612

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33060iSXV20199612

main47716-33080iMCV2#,SXV25199612-199908

main47717-33070iMCV2#,SXV25199908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33080iMCV2#,SXV25199612

sub47721-33081

main47721-33091iSXV20199612

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33080iMCV2#,SXV25199612

sub47721-33081

main47722-33061iSXV20199612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33111iSXV20199612

main47730-33120iMCV2#,SXV25199612

47731PISTON, FRONT DISC BRAKE

main47731-20190iSXV20199612

main47731-33050iMCV2#,SXV25199612

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iSXV20199612

main90522-67001iMCV2#,SXV25199612

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33111iSXV20199612

main47750-33120iMCV2#,SXV25199612

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020iMCV2#,SXV25199612

main47769-50010iSXV20199612

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010iMCV2#,SXV25199612

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iSXV20199612

sub47775-30070

main47775-33020iMCV2#,SXV25199612

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33010iSXV20199612

main47781-33020iMCV2#,SXV25199612

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iMCV2#,SXV2#199802-200101

main90119-06227iMCV2#,SXV2#199612-199802

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33010iSXV20199612

main47782-33020iMCV2#,SXV25199612

23 parts on this diagram · 2 diagrams in section
