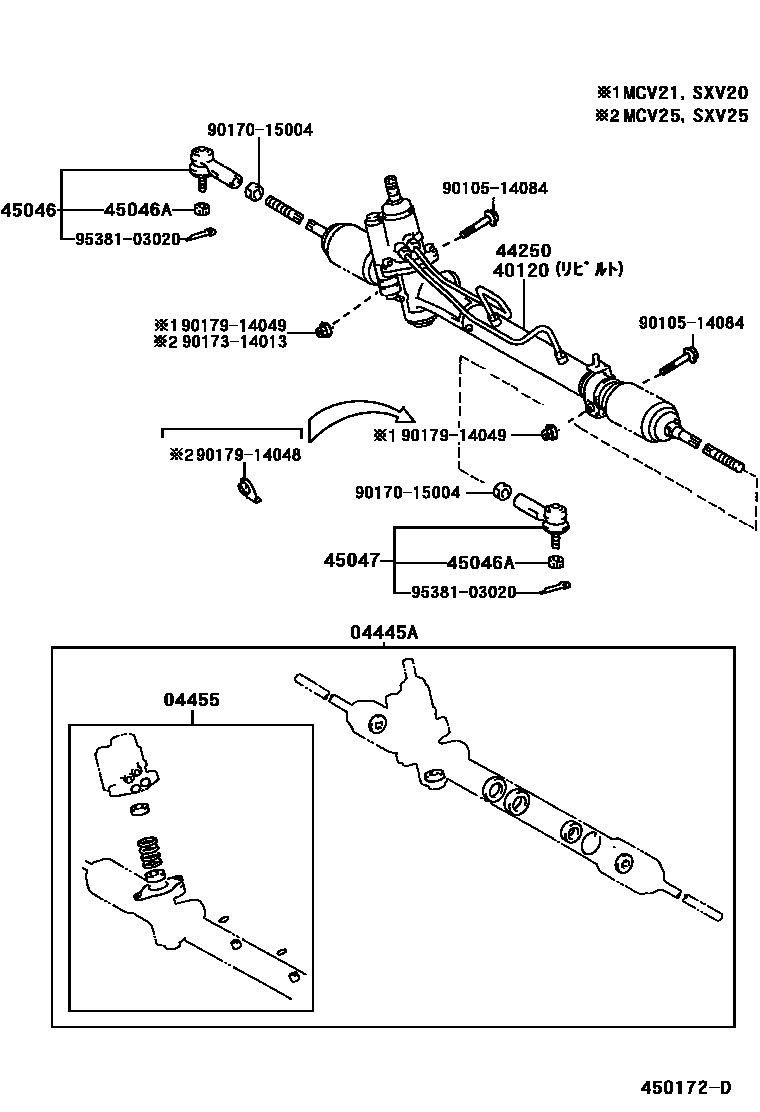

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33070iMCV21,SXV20..SED199612-199908

main04445-33080iSXV25;MCV2#,SXV20..WG199612-199908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCV2#,SXV2#199612

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-33171iSXV20..WG199908

main40120-33181iMCV21;SXV20..SED199612

KOYO

main40120-33271iSXV20..WG199612-199908

KOYO

main40120-33281iMCV25,SXV25199706-199908

KOYO

main40120-33300iSXV25..WG199908

main40120-33310iMCV25;SXV25..SED199908

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33171iSXV20..WG199908

main44250-33180iMCV21;SXV20..SED199612-199710

main44250-33181iMCV21;SXV20..SED199710

main44250-33270iSXV20..WG199612-199710

main44250-33271iSXV20..WG199710-199908

main44250-33280iMCV25,SXV25199706-199710

main44250-33281iMCV25,SXV25199710-199908

main44250-33300iSXV25..WG199908

main44250-33310iMCV25;SXV25..SED199908

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCV2#,SXV2#199612

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMCV2#,SXV2#199612

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCV2#,SXV2#199612

9010514084

main90105-14084

9017015004

main90170-15004

9017314013

main90173-14013

9017914048

main90179-14048

9017914049

main90179-14049

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
