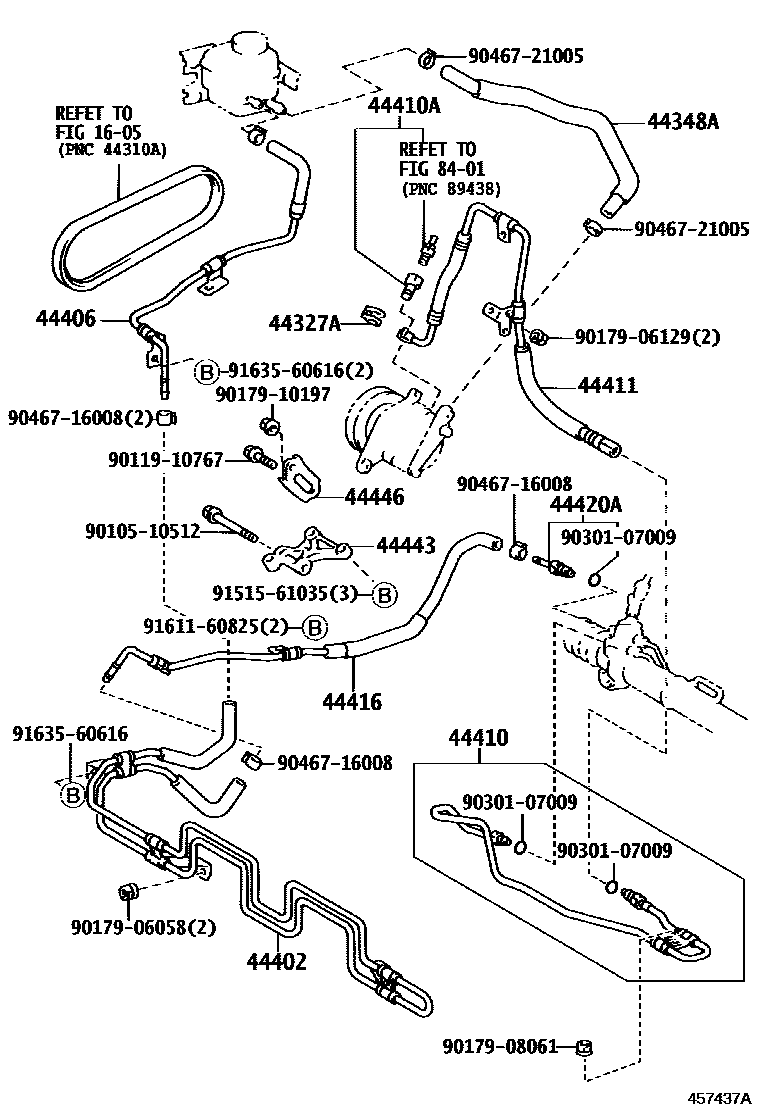

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV2#,SXV2#199612-199712

main44327-30030iMCV2#,SXV2#199712

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33130iMCV2#199612

main44348-33140iSXV20199612

main44348-33170iSXV25199706

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-33030iSXV2#199612

main44402-33040iMCV2#199612

44406TUBE SUB-ASSY, RETURN

main44406-33050iMCV2#,SXV2#199612-199808

main44406-33051iMCV2#,SXV2#199808

44410TUBE ASSY, PRESSURE FEED

main44410-33110iSXV20199612

main44410-33130iMCV21199612

main44410-33150iSXV25199706

main44410-33160iMCV25199706

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV2#,SXV2#199612

44411HOSE, PRESSURE FEED

main44411-33060iMCV21199612

main44411-33090iMCV25199706

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33070iMCV21,SXV20199612

main44416-33120iMCV25,SXV25199706

44420ATUBE ASSY, RETURN

main44420-17010iMCV2#,SXV2#199612

44443BRACKET, PUMP

main44443-33020iSXV2#199612

main44443-33040iMCV2#199612-199708

main44443-33041iMCV2#199708

44446STRUT, ADJUSTING

main44446-33010iMCV2#199612

9010510512

main90105-10512

9011910767

main90119-10767

9017906058

main90179-06058

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9030107009

main90301-07009

9046716008

main90467-16008

9046721005

main90467-21005

9151561035

main91515-61035

9161160825

main91611-60825

9163560616

main91635-60616

23 parts on this diagram · 4 diagrams in section
