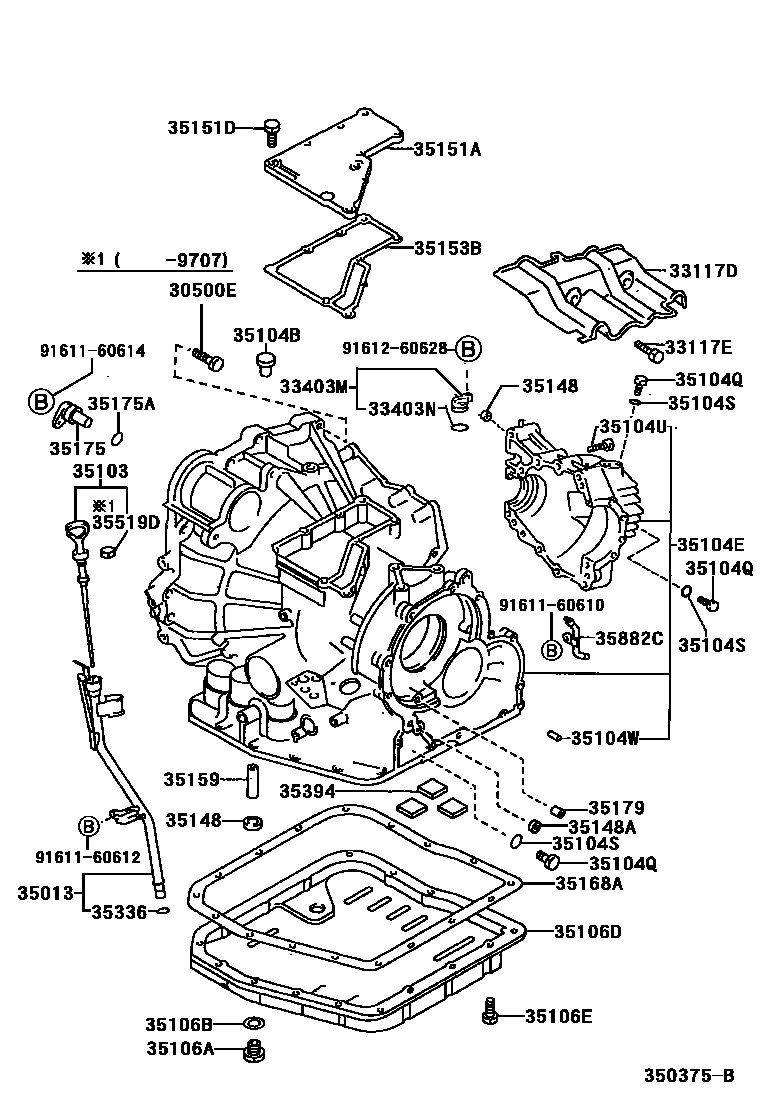

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A541E 0002 1A140E 0003 1A541F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXV2#199612

sub91641-H0820

main90105-10077iSXV20199612

main90105-10425iSXV25199908

main90119-12168×4iMCV2#199612

main90119-12250×3iSXV25199706

main91619-61245×3iSXV20199612

main91619-61265iMCV2#199612

main91651-61022×2iSXV2#199612

main92412-H1055iMCV2#199908

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-32040iMCV2#,SXV25199612

main33117-32060iSXV20199612

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iMCV2#,SXV2#199612

sub91641-H0820

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iMCV21,SXV20199808

main90341-18002iMCV25,SXV25199706

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iMCV21,SXV20..WG199612-199808

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-33080iSXV20199612

main35013-33090iMCV2#,SXV25199612

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-33100iSXV20199612

main35103-33120iMCV21199612-199702

main35103-33160iMCV21199702-199808

main35103-33170iMCV21199808

main35103-33180iMCV25,SXV25199706-199808

main35103-33190iMCV25199808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCV2#,SXV25199612

main90930-03089iSXV20199612

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-32170iSXV20199612-200109

main35104-33901iMCV21199612-199808

sub35405-33021

sub90501-21032

sub90501-21033

main35104-33902iMCV25,SXV25199706-199808

sub35405-33021

sub90501-21032

sub90501-21033

main35104-33903iMCV21199808-200109

main35104-33904iMCV25,SXV25199808-200109

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iMCV2#,SXV25199612

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iMCV2#,SXV25199612

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222×6iMCV21199612

main90105-10223×2iMCV2#,SXV25199612

main90105-10224×2iMCV21199612

main90105-10426iMCV25,SXV25199706

main90105-12052×2iSXV20199612

sub90105-12263

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10232×2iMCV2#,SXV25199612

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCV2#,SXV2#199612

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCV2#,SXV2#199612

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-32012iSXV20199612

main35106-33010iMCV21199612-199702

main35106-33020iMCV2#,SXV25199702

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iMCV2#,SXV25199612

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010×2iMCV2#,SXV2#199612

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-16010iMCV2#,SXV25199612

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33020iMCV21199612-199706

main35151-33021iMCV2#,SXV25199706-199709

main35151-33022iMCV2#,SXV25199709

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113×8iMCV2#,SXV25199612

sub91511-H0620

main90109-08235iMCV2#,SXV25199612

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-33020iMCV2#,SXV25199612

35159GASKET, BRAKE DRUM

main35159-32011iMCV2#,SXV2#199612

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32010iSXV20199612

main35168-33030iMCV2#,SXV25199612

sub35168-33031

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iSXV20199612

main35175-33010iMCV2#,SXV25199612

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCV2#,SXV25199612

main90301-21002iSXV20199612

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCV2#,SXV2#199612

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCV2#,SXV2#199612

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iMCV2#,SXV25199612

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iSXV25199808

main35519-21020iMCV25199808

main35519-30010iMCV21199808

main35519-32040iSXV20199707

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCV21199612

9161160610

main91611-60610

9161160612

main91611-60612

9161160614

main91611-60614

9161260628

main91612-60628
