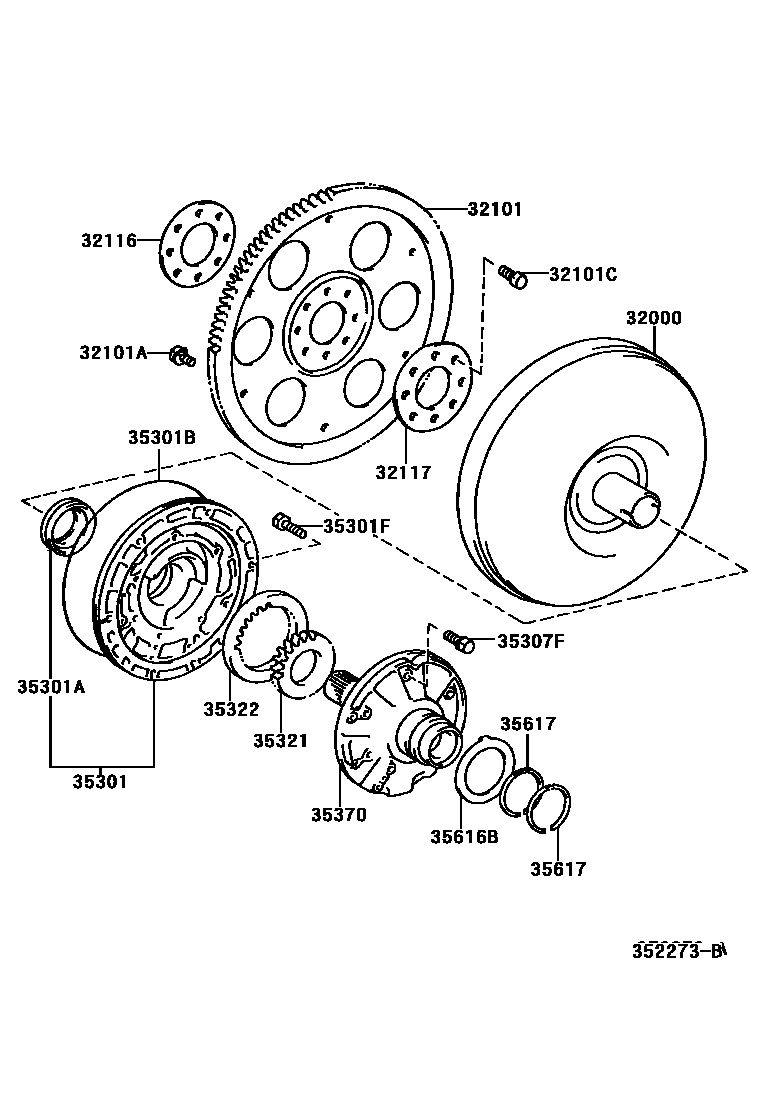

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A541E,A541F 0002 1A140E

32000CONVERTER ASSY, TORQUE

main32000-20190iSXV20199612-200109

main32000-33040iMCV2#199612-199808

sub32000-33050

main32000-33050iMCV2#199907-200109

main32000-33060iMCV2#199808-199907

sub32000-33050

main32000-42020iSXV25199706-200109

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32051iSXV2#199612

main32101-33010iMCV2#199612

sub32101-48010

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSXV2#199612

main90109-09001iMCV2#199708

main90119-08498iSXV2#199612

main90119-09018iMCV2#199612-199708

sub90119-09025

main90119-09019iMCV2#199612-199708

sub90109-09001

main90119-09025iMCV2#199708

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iMCV2#199612

main90109-10054iSXV2#199612

32116SPACER, DRIVE PLATE, FRONT

main32116-32011iSXV2#199612

main32116-32020iMCV2#199612

32117SPACER, DRIVE PLATE, REAR

main32117-32010iSXV2#199612

main32117-32020iMCV2#199612

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iSXV20199612

main35035-32020iSXV20199612

sub35035-32H00

main35301-33010iMCV2#,SXV25199612

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iMCV2#,SXV2#199612-200011

main90311-38082iMCV2#,SXV2#200011

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iSXV20199612

main90301-99079iMCV2#,SXV25199612

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iMCV2#,SXV2#199612

35307FBOLT (FOR STATOR SHAFT)

main90119-06808iMCV2#,SXV2#199612

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iSXV20199612

main35321-12080iSXV20199612

main35321-12090iSXV20199612

main35321-12100iSXV20199612

main35321-12110iSXV20199612

main35321-33010iMCV2#,SXV25199612

main35321-33030iMCV2#,SXV25199612

main35321-33050iMCV2#,SXV25199612

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iSXV20199612

main35322-12070iSXV20199612

main35322-12080iSXV20199612

main35322-12090iSXV20199612

main35322-12100iSXV20199612

main35322-33010iMCV2#,SXV25199612

main35322-33030iMCV2#,SXV25199612

main35322-33050iMCV2#,SXV25199612

35370SHAFT ASSY, STATOR

main35370-12040iSXV20199612

main35370-32050iSXV20199612

sub35035-32H00

main35370-33020iMCV2#,SXV25199612

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iMCV2#,SXV2#199612

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iMCV2#,SXV2#199612
