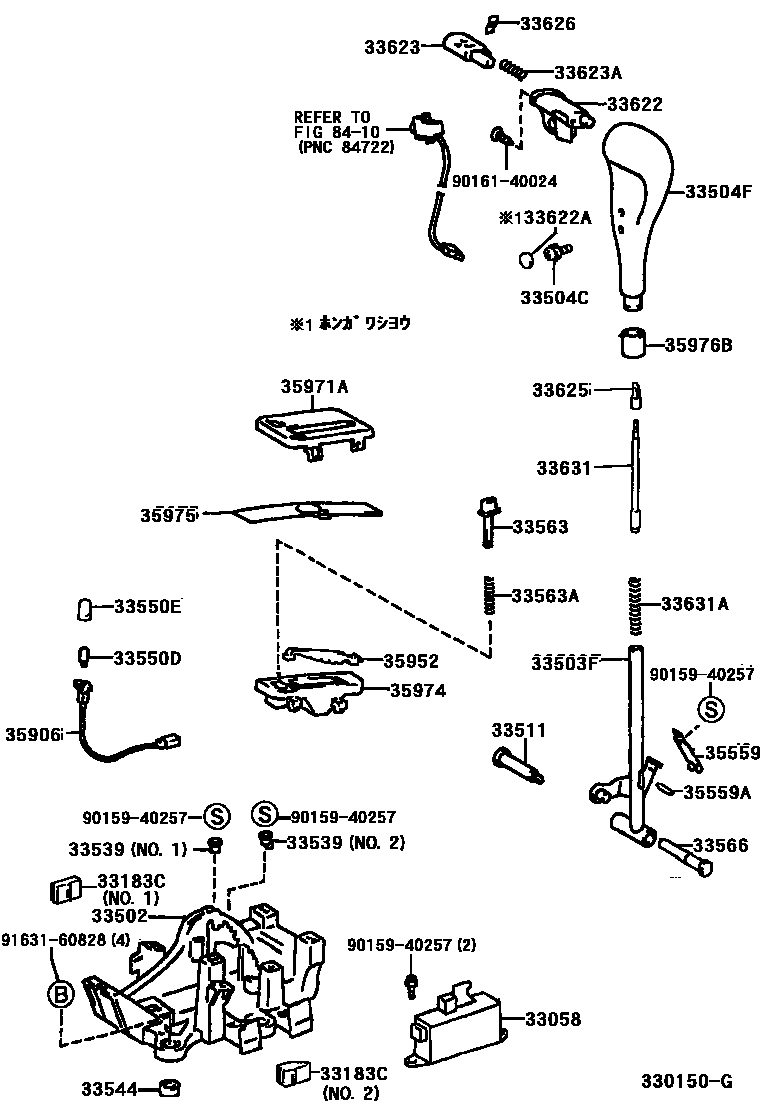

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33560-33020iMCV2#,SXV2#199612

33183CDAMPER, DYNAMIC

main33183-33020iMCV2#,SXV2#199706

main33183-33030iMCV2#,SXV2#199706

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-33040iMCV2#,SXV2#199612

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-33100iMCV2#,SXV2#199612

main33055-33100iMCV21,SXV20..SED199712

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238iMCV2#,SXV2#199612

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-33050-B1iSXV20;SXV25..WG199612-199908

sub33542-33050

main33542-33050-B1iSXV25..SED199808-199908

BLUISH GRAY,TRIM1#

sub33542-33050

main33542-33050-G0iSXV25..SED199808-199908

DK.SAGE,TRIM6#

sub33542-33050

main33542-33050-G0iSXV20;SXV25..WG199612-199908

sub33542-33050

main33542-33060-B1iMCV2#,SXV2#199612-199908

sub33542-33060

main33542-33060-C0iMCV21,SXV20..SED199808-199908

sub33542-33060

main33542-33060-G0iMCV2#,SXV2#199612-199908

sub33542-33060

main33542-33120-G0iSXV2#199908

DK.SAGE,TRIM6#

sub33542-33120

main33542-33130-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub33542-33130

main33542-33130-G0iMCV2#,SXV2#199908

sub33542-33130

main33542-33130-G0iMCV21,SXV20..SED199712

sub33542-33130

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-33020iMCV2#,SXV2#199612

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-33010iMCV2#,SXV2#199612

main33539-33030iMCV2#,SXV2#199612

33544INSERT, SHIFT LEVER, NO.1

main33544-33010iMCV2#,SXV2#199612

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iMCV2#,SXV2#199612

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iMCV2#,SXV2#199612

33563BUTTON, SHIFT LOCK RELEASE

main33563-33080iMCV2#,SXV2#199612

sub33563-33130

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05042iMCV2#,SXV2#199612

33566PIN, SHIFT LEVER STOP

main90256-04008iMCV2#,SXV2#199612

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-33060-B1iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub33622-33060

main33622-33060-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub33622-33060

main33622-33060-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub33622-33060

33622ACOVER, SHIFT LEVER KNOB, NO.2

main33622-20050-B1iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub33622-20050

main33622-20050-C0iMCV2#,SXV2#..WG199908

BLACK,TRIM2#

sub33622-20050

main33622-20050-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub33622-20050

33623BUTTON, SHIFT LEVER KNOB

main33623-33060-B0iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub33623-33060

main33623-33060-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub33623-33060

main33623-33090iMCV21,SXV20..SED199712

main33623-33090iMCV2#,SXV2#199908

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07116iMCV2#,SXV2#199612

33625SLEEVE, SHIFT LEVER KNOB

main33625-33040iMCV2#,SXV2#199612

33626STOPPER, SHIFT LEVER BUTTON

main33626-20010iMCV2#,SXV2#199612

33631ROD, DETENT

main33631-33060iMCV2#,SXV2#199612

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-06091iMCV2#,SXV2#199612

35559SPRING, MANUAL DETENT

main35559-33030iMCV2#,SXV2#199612

35559APIN (FOR MANUAL DETENT SPRING)

main90249-02005iMCV2#,SXV2#199612

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33040iMCV2#,SXV2#199612

sub35906-33060

35952LENS, POSITION INDICATOR

main35952-33010iMCV2#,SXV2#199612

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-33050iMCV2#,SXV2#199612

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33070iMCV2#,SXV2#199612

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33030iMCV2#,SXV2#199612

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-33020-B1iMCV2#,SXV2#199612-199908

BLUISH GRAY,TRIM1#

sub35976-33020

main35976-33020-G0iMCV2#,SXV2#199612

DK.SAGE,TRIM6#

sub35976-33020

main35976-33050iMCV21,SXV20..SED199712

main35976-33050iMCV2#,SXV2#199908

8410

9015940257

main90159-40257

9016140024

main90161-40024

9163160828

main91631-60828

34 parts on this diagram · 4 diagrams in section
