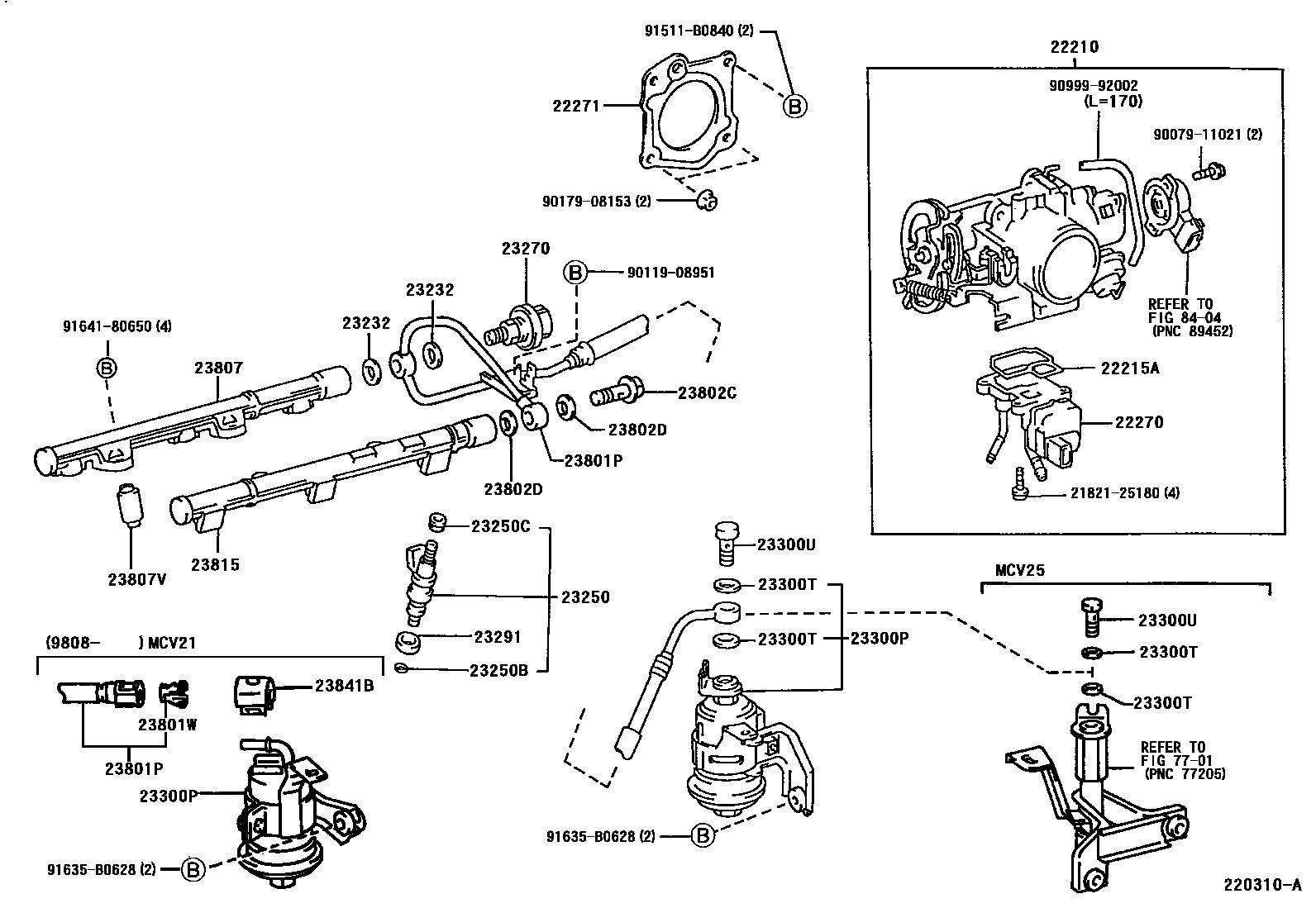

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

22210BODY ASSY, THROTTLE

main22210-20110i2MZFE..MCV2#199612

main22210-7A580i5SFE..SXV20;5SFE..SXV25..SED199612

main22210-7A730i5SFE..SXV25..WG199706

22215GASKET, THROTTLE BODY COVER

main22215-74400i5SFE..SXV2#199612

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i2MZFE..MCV2#199612

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-20030i2MZFE..MCV21199612-199704

sub22270-20031

main22270-20031i2MZFE..MCV2#199704

main22270-74340i5SFE..SXV2#199612

22271GASKET, THROTTLE BODY

main22271-20010i2MZFE..MCV2#199612

main22271-74070i5SFE..SXV2#199612

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i2MZFE..MCV2#199612

main23279-74010i5SFE..SXV2#199612

23250INJECTOR ASSY, FUEL

main23209-11070i2MZFE..MCV2#199612

main23209-74170i5SFE..SXV2#199612

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i2MZFE..MCV2#199612-199812

main90301-07024i5SFE..SXV2#199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i5SFE..SXV2#199612

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i5SFE..SXV2#199612

sub23207-20011

main23270-62010i2MZFE..MCV2#199612

sub23270-62011

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2MZFE..MCV2#199612

23300PFILTER, FUEL(FOR EFI)

main23300-20040i2MZFE..MCV21199808

main23300-79545i2MZFE..MCV21199612-199808

23300TGASKET(FOR FUEL FILTER)

main90430-12026i5SFE..SXV2#199612-199808

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i2MZFE..MCV2#199612-199808

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20030i2MZFE..MCV2#199612-199808

main23801-20041i2MZFE..MCV21199808

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i2MZFE..MCV21199808

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i2MZFE..MCV2#199612

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026i2MZFE..MCV2#199612

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i2MZFE..MCV2#199612

sub23814-20021

main23814-74110i5SFE..SXV2#199612

sub23814-74080

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i2MZFE..MCV2#199612

main90561-08053i5SFE..SXV2#199612

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i2MZFE..MCV2#199612

sub23815-20021

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-20020i2MZFE..MCV21199808

7701

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911021

main90079-11021

9011908951

main90119-08951

9017908153

main90179-08153

9099992002

main90999-92002

91511B0840

main91511-B0840

91635B0628

main91635-B0628

9164180650

main91641-80650

32 parts on this diagram · 8 diagrams in section
