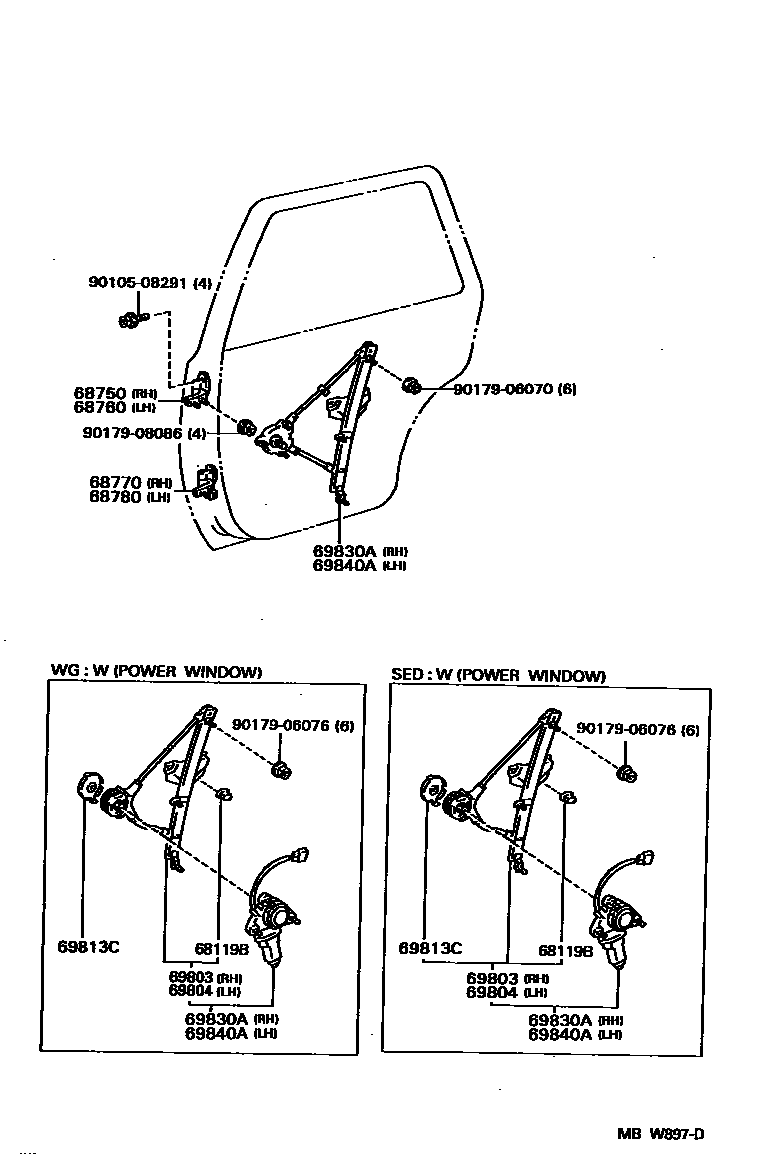

REAR DOOR WINDOW REGULATOR & HINGE

68119BCUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2

main69888-33011×2iSXV10,VCV10199211-199608

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32041iSXV10,VCV10199211-199608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32041iSXV10,VCV10199211-199608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32041iSXV10,VCV10199211-199608

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32041iSXV10,VCV10199211-199608

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32050iSXV10,VCV10199211-199608

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32050iSXV10,VCV10199211-199608

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-32010×2iSXV10,VCV10199211-199408

main69813-32040iSXV10,VCV10199408-199608

main69814-32010iSXV10,VCV10199408-199608

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-32090iSXV10,VCV10199211-199608

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-32090iSXV10,VCV10199211-199608

9010508291

main90105-08291

9017906070

main90179-06070

9017906076

main90179-06076

9017908086

main90179-08086

14 parts on this diagram · 1 diagram in section
