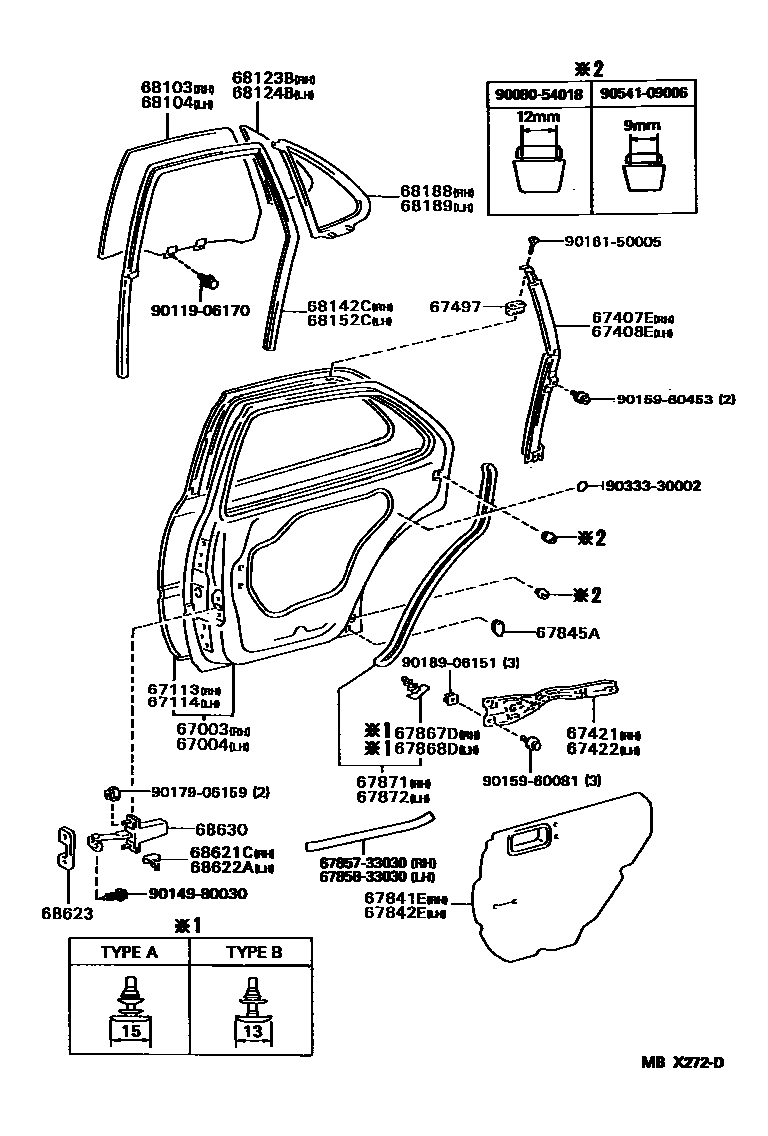

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-33010iSXV10,VCV10199211-199408

sub67003-33011

main67003-33011iSXV10,VCV10199408-199608

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-33010iSXV10,VCV10199211-199408

sub67004-33011

main67004-33011iSXV10,VCV10199408-199608

67113PANEL, REAR DOOR, OUTER RH

main67113-32090iSXV10,VCV10199211-199408

sub67113-32091

main67113-32091iSXV10,VCV10199408-199608

67114PANEL, REAR DOOR, OUTER LH

main67114-32090iSXV10,VCV10199211-199408

sub67114-32091

main67114-32091iSXV10,VCV10199408-199608

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-32060iSXV10,VCV10199211-199608

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-32060iSXV10,VCV10199211-199608

67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH

main67421-32050iSXV10,VCV10199211-199608

67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH

main67422-32050iSXV10,VCV10199211-199608

67497BRACKET, REAR DOOR FRAME

main67497-33020iSXV10,VCV10199211-199608

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-32100iSXV10,VCV10199211-199608

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-32070iSXV10,VCV10199211-199608

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67845-32010iSXV10,VCV10199211-199608

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iSXV10,VCV10199408-199608

main67868-22020iSXV10,VCV10199211-199408

sub67867-12150

main67868-30050iSXV10,VCV10199211-199608

sub67867-12150

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iSXV10,VCV10199408-199608

main67868-22020iSXV10,VCV10199211-199408

sub67867-12150

main67868-30050iSXV10,VCV10199211-199608

sub67867-12150

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32090iSXV10,VCV10199211-199608

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32090iSXV10,VCV10199211-199608

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-32110iSXV10,VCV10199211-199608

main68103-32120iSXV10,VCV10199211-199308

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-32110iSXV10,VCV10199211-199608

main68104-32120iSXV10,VCV10199211-199308

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-32010iSXV10,VCV10199211-199608

main68123-32020iSXV10,VCV10199211-199308

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-32010iSXV10,VCV10199211-199608

main68124-32020iSXV10,VCV10199211-199308

68142CRUN, REAR DOOR GLASS, RH

main68142-32060iSXV10,VCV10199211-199608

68152CRUN, REAR DOOR GLASS, LH

main68152-32020iSXV10,VCV10199211-199608

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-32010iSXV10,VCV10199211-199512

sub68188-32011

main68188-33010iSXV10,VCV10199512-199608

sub68188-32010

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-32010iSXV10,VCV10199211-199512

sub68189-32011

main68189-33010iSXV10,VCV10199512-199608

sub68189-32010

68621CCOVER, REAR DOOR CHECK, RH

main68621-32010iSXV10,VCV10199211-199308

sub68621-30020

68622ACOVER, REAR DOOR CHECK, LH

main68622-32010iSXV10,VCV10199211-199308

sub68622-30020

68623COVER, DOOR CHECK, RH

main68623-32010iSXV10,VCV10199211-199308

68630CHECK ASSY, REAR DOOR

main68630-32050iSXV10,VCV10199211-199308

main68630-33011iSXV10,VCV10199308-199608

main68640-32040iSXV10,VCV10199211-199308

main68640-33011iSXV10,VCV10199308-199608

6785733030COVER, FRONT DOOR SERVICE HOLE, NO.1

main67857-33030

6785833030COVER, FRONT DOOR HINGE SERVICE HOLE, NO.2

main67858-33030

9008054018

main90080-54018

9011906170

main90119-06170

9014980030

main90149-80030

9015960081

main90159-60081

9015960453

main90159-60453

9016150005

main90161-50005

9017906159

main90179-06159

9018906151

main90189-06151

9033330002

main90333-30002

9054109006

main90541-09006

40 parts on this diagram · 2 diagrams in section
