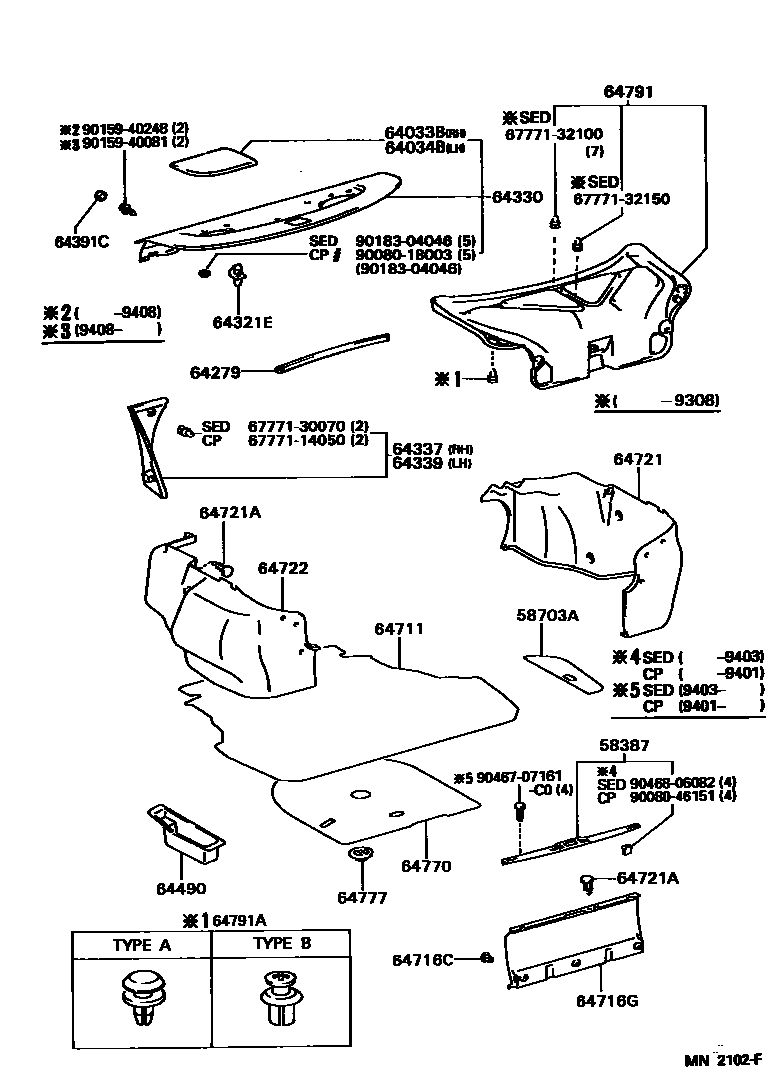

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-33010-01iSXV10,VCV10199211-199308

BLACK,TRIM1#,4#

sub58387-33011

sub90467-07161

main58387-33010-01iSXV10,VCV10199308-199403

BLACK,TRIM1#

sub58387-33011

sub90467-07161

main58387-33011-22iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub58387-33011

main58387-33011-C0iSXV10,VCV10199403-199408

BLACK,TRIM1#

sub58387-33011

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-33010iSXV10,VCV10199211-199608

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-33020-03iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

sub64033-33020

main64033-33020-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

sub64033-33020

main64033-33040-B0iSXV10,VCV10199408-199608

MD.GRAY,TRIM1#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-33010-03iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

sub64034-33010

main64034-33010-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

sub64034-33010

main64034-33040-B0iSXV10,VCV10199408-199608

MD.GRAY,TRIM1#

64279PROTECTOR, ROOM PARTITION

main64279-33010-C0iSXV10,VCV10199211-199304

BLACK,TRIM1#,4#

sub64279-33011

main64279-33011-C0iSXV10,VCV10199304-199307

BLACK,TRIM1#

sub64279-33012

main64279-33012-C0iSXV10,VCV10199307-199408

BLACK,TRIM1#

sub64279-33012

main64279-33012-C1iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub64279-33012

64321EBRACKET, PACKAGE TRAY TRIM

main64321-32010iSXV10,VCV10199211-199608

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-33041-E0iSXV10,VCV10199211-199308

main64330-33041-S0iSXV10,VCV10199211-199408

main64330-33042-S0iSXV10,VCV10199408-199608

main64330-33051-B0iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

main64330-33051-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main64330-33052-B0iSXV10,VCV10199408-199608

MEDIUM GRAY,TRIM1#

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-33010-03iSXV10,VCV10199211-199308

MEDIUM GRAY,TRIM1#

main64337-33010-C0iSXV10,VCV10199308-199408

OFF BLACK,TRIM1#

main64337-33010-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main64337-33011-C1iSXV10,VCV10199408-199608

BLACK,TRIM1#

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-33010-03iSXV10,VCV10199211-199308

MEDIUM GRAY,TRIM1#

main64339-33010-C0iSXV10,VCV10199308-199408

OFF BLACK,TRIM1#

main64339-33010-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

main64339-33011-C1iSXV10,VCV10199408-199608

BLACK,TRIM1#

64391CCAP

main90339-10005-13iSXV10,VCV10199211-199408

MEDIUM GRAY,TRIM1#

sub90339-10005

main90339-10005-E0iSXV10,VCV10199211-199308

OAK,TRIM4#

sub90339-10005

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-32010-C0iSXV10,VCV10199211-199608

BLACK,TRIM1#

sub64490-32010

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06021-C1iSXV10,VCV10199501-199608

BLACK,TRIM1#

main64711-33020-20iSXV10,VCV10199308-199501

OFF BLACK,TRIM1#

sub64711-33021

main64711-33020-20iSXV10,VCV10199211-199308

OFF BLACK,TRIM1#,4#

sub64711-33021

main64711-33021-20iSXV10,VCV10199501-199608

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05085-01iSXV10,VCV10199211-199308

BLACK,TRIM1#,4#

sub90467-05085

main90467-05085-01iSXV10,VCV10199308-199408

BLACK,TRIM1#

sub90467-05085

main90467-05085-C2iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub90467-05085

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-33010-01iSXV10,VCV10199211-199308

OFF BLACK,TRIM1#,4#

sub64716-33010

main64716-33010-01iSXV10,VCV10199308-199408

OFF BLACK,TRIM1#

sub64716-33010

main64716-33010-C0iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub64716-33010

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-33010-01iSXV10,VCV10199211-199308

OFF BLACK,TRIM1#,4#

sub64721-33010

main64721-33010-01iSXV10,VCV10199308-199408

OFF BLACK,TRIM1#

sub64721-33010

main64721-33010-C0iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub64721-33010

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0iSXV10,VCV10199211-199308

BLACK,TRIM1#,4#

sub90467-07042

sub90467-06175

main90467-07042-C0iSXV10,VCV10199308-199608

BLACK,TRIM1#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-33010-01iSXV10,VCV10199211-199308

OFF BLACK,TRIM1#,4#

sub64722-33010

main64722-33010-01iSXV10,VCV10199308-199408

OFF BLACK,TRIM1#

sub64722-33010

main64722-33010-C0iSXV10,VCV10199408-199608

BLACK,TRIM1#

sub64722-33010

64770COVER ASSY, SPARE WHEEL

main64770-33010iSXV10,VCV10199211-199408

sub64770-33011

main64770-33011iSXV10,VCV10199408-199608

main64770-33020iSXV10199211-199408

sub64770-33011

64777CLAMP, SPARE WHEEL COVER

main64777-32030iSXV10,VCV10199211-199608

64791COVER, BACK DOOR TRIM

main64791-33010-01iSXV10,VCV10199211-199308

OFF BLACK,TRIM1#,4#

sub64791-33060

sub90467-08076

main64791-33060-C0iSXV10,VCV10199308-199608

OFF BLACK,TRIM1#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07059-22iSXV10,VCV10199211-199308

BLACK,TRIM1#,4#

sub90467-07059

main90467-07059-22iSXV10,VCV10199308-199608

sub90467-07059

main90467-08076-C0iSXV10,VCV10199308-199608

sub90467-08076

6777114050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14050

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777132100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32100

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9008018003

main90080-18003

9008046151

main90080-46151

9015940081

main90159-40081

9015940248

main90159-40248

9018304046

main90183-04046

9046707161C0

main90467-07161C0

9046806082

main90468-06082

32 parts on this diagram · 1 diagram in section
