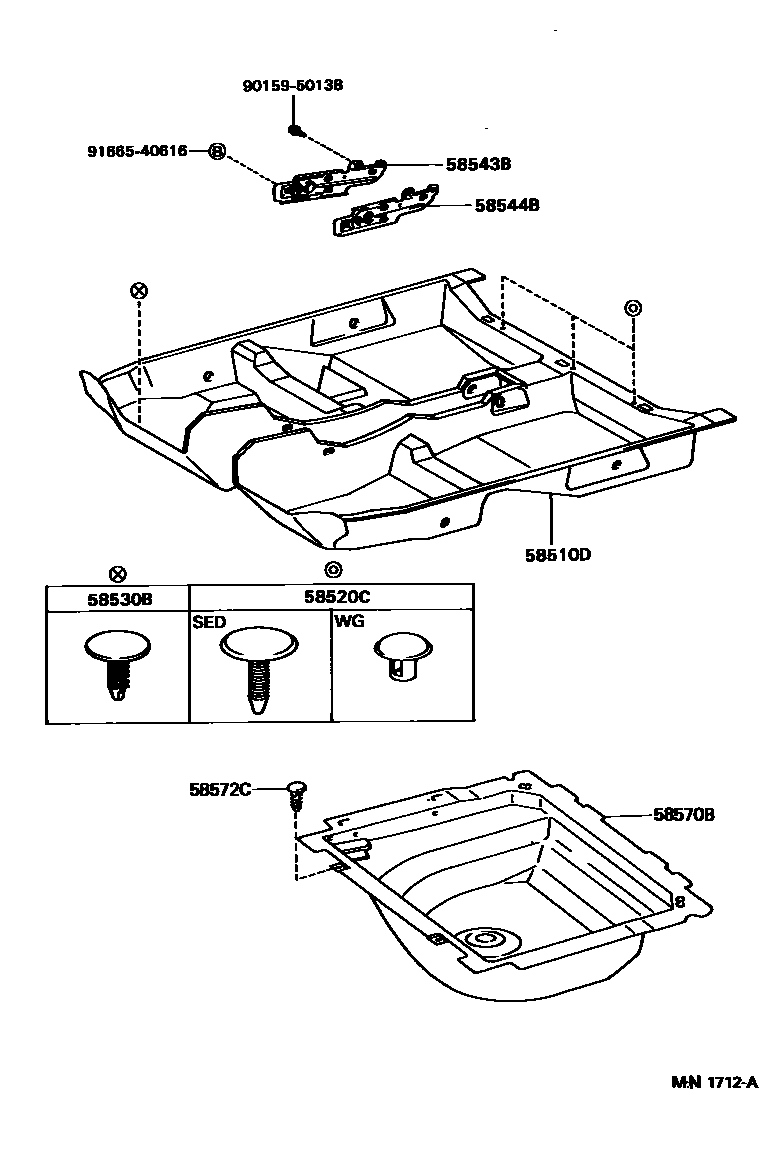

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-33070-B0iSXV10,VCV10199211-199303

MEDIUM GRAY,TRIM1#

main58510-33070-E0iSXV10,VCV10199211-199303

MEDIUM OAK,TRIM4#

main58510-33071-B0iSXV10,VCV10199303-199308

MEDIUM GRAY,TRIM1#

sub58510-33050

main58510-33071-E0iSXV10,VCV10199303-199308

MEDIUM OAK,TRIM4#

sub58510-33050

main58510-33240-B0iSXV10,VCV10199308-199608

MEDIUM GRAY,TRIM1#

sub58510-33250

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01iSXV10,VCV10199211-199308

BLACK,TRIM1#,4#

sub90467-06016

sub90467-07049

main90467-06016-01iSXV10,VCV10199308-199406

BLACK,TRIM1#

sub90467-06016

sub90467-07049

main90467-06166-C0iSXV10,VCV10199406-199608

BLACK,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06089-B0iSXV10,VCV10199211-199308

MEDIUM GRAY,TRIM1#,4#

sub90467-06089

main90467-06089-B0iSXV10,VCV10199308-199608

MEDIUM GRAY,TRIM1#

sub90467-06089

58543BBRACKET, FLOOR CARPET, RH

main58543-33010iSXV10,VCV10199211-199608

58544BBRACKET, FLOOR CARPET, LH

main58544-33010iSXV10,VCV10199211-199608

58570BMAT ASSY, REAR FLOOR

58572CCLIP, REAR FLOOR MAT SET

9015950138

main90159-50138

9166540616

main91665-40616

9 parts on this diagram · 1 diagram in section
