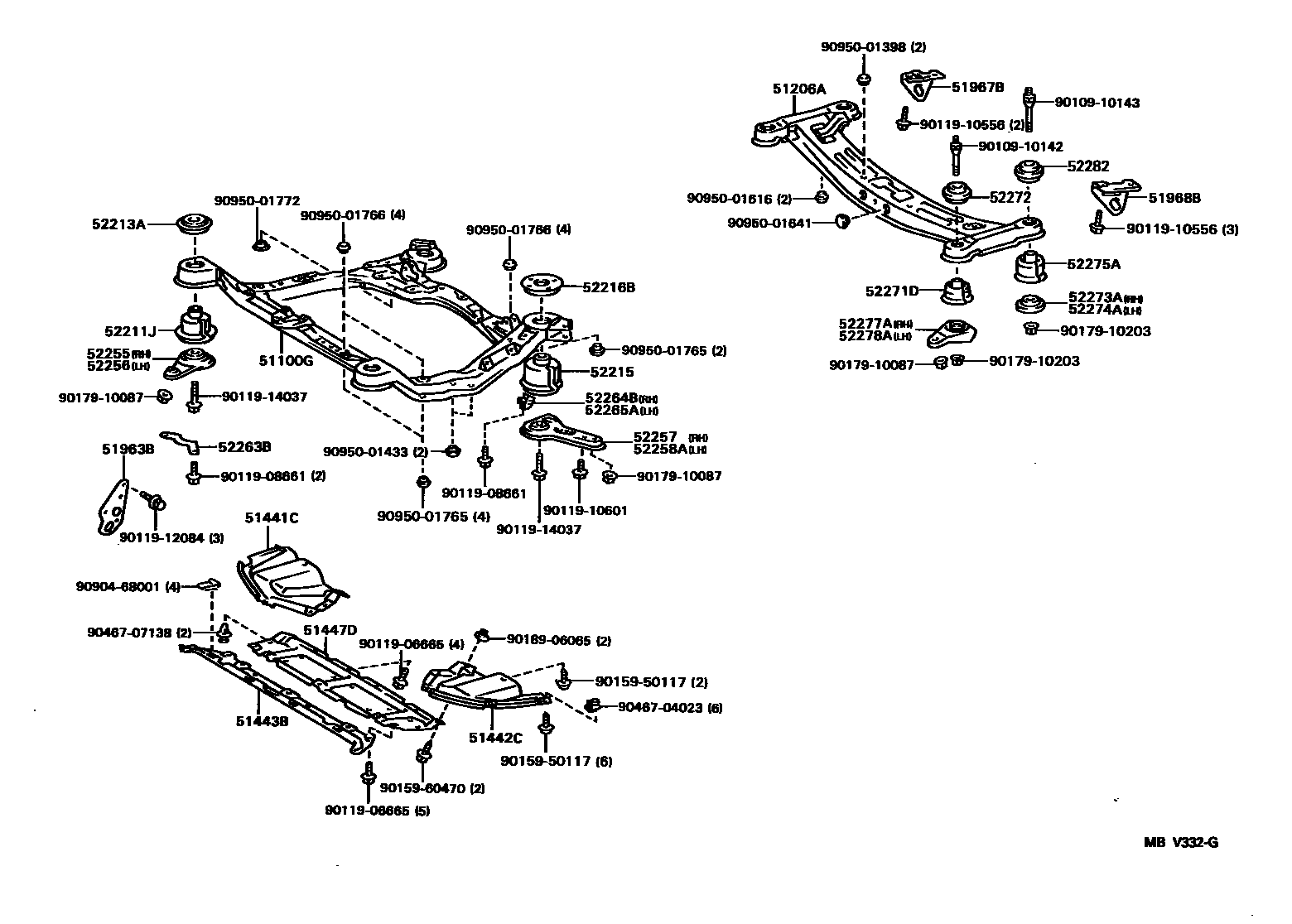

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-33010iSXV10,VCV10¥87,000199211-199608

sub51100-33030¥86,700

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33010iSXV10,VCV10¥29,100199211-199408

sub51206-33011¥28,700

main51206-33011iSXV10,VCV10¥28,700199408-199608

sub51206-33012¥28,700

51441CCOVER, ENGINE UNDER, RH

main51441-33010iSXV10,VCV10¥4,190199211-199608

51442CCOVER, ENGINE UNDER, LH

main51442-33010iSXV10,VCV10¥4,190199211-199608

51443BCOVER, ENGINE UNDER, NO.3

main51443-33010iSXV10,VCV10¥5,100199211-199608

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-33010iSXV10,VCV10¥5,000199211-199608

51963BHOOK, TRANSPORT, FRONT RH

main51963-33010iSXV10,VCV10¥1,220199211-199608

51967BHOOK, TRANSPORT, REAR RH

main51967-33010iSXV10,VCV10¥1,090199211-199212

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iSXV10,VCV10¥1,090199211-199608

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33010iSXV10,VCV10¥5,800199211-199608

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33010iSXV10,VCV10¥1,590199211-199608

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33010iSXV10,VCV10¥4,810199211-199608

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020iSXV10,VCV10¥1,970199211-199608

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iSXV10,VCV10¥2,150199211-199608

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iSXV10,VCV10¥2,150199211-199608

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iSXV10,VCV10¥3,940199605-199608

main52257-33010iSXV10,VCV10¥3,680199211-199605

sub51023-33010¥3,940

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iSXV10,VCV10¥3,940199605-199608

main52258-33010iSXV10,VCV10¥3,680199211-199605

sub51024-33010¥3,940

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-33010iSXV10,VCV10¥1,120199211-199307

52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2

main52264-33010iSXV10,VCV10¥470199211-199307

52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3

main52265-33010iSXV10,VCV10¥470199211-199307

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32020iSXV10,VCV10¥2,190199211-199311

sub52271-32050¥2,190

main52271-32050iSXV10,VCV10¥2,190199311-199608

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iSXV10,VCV10¥480199211-199608

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iSXV10,VCV10¥480199211-199608

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-32030iSXV10,VCV10¥2,320199211-199311

sub52275-32050¥2,320

main52275-32050iSXV10,VCV10¥2,320199311-199608

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iSXV10,VCV10¥2,300199211-199608

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iSXV10,VCV10¥2,300199211-199608

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

9010910142

main90109-10142¥400

9010910143

main90109-10143¥520

9011906665

main90119-06665¥160

9011908661

main90119-08661¥140

9011910556

main90119-10556¥230

9011910601

main90119-10601¥90

9011912084

main90119-12084¥320

9011914037

main90119-14037¥610

9015950117

main90159-50117¥120

9015960470

main90159-60470¥120

9017910087

main90179-10087¥110

9017910203

main90179-10203¥170

9018906065

main90189-06065¥80

9046704023

main90467-04023¥240

9046707138

main90467-07138¥260

9090468001

main90904-68001¥240

9095001398

main90950-01398¥100

9095001433

main90950-01433¥190

9095001616

main90950-01616¥200

9095001641

main90950-01641¥200

9095001765

main90950-01765¥120

9095001766

main90950-01766¥110

9095001772

main90950-01772¥200

51 parts on this diagram · 1 diagram in section
