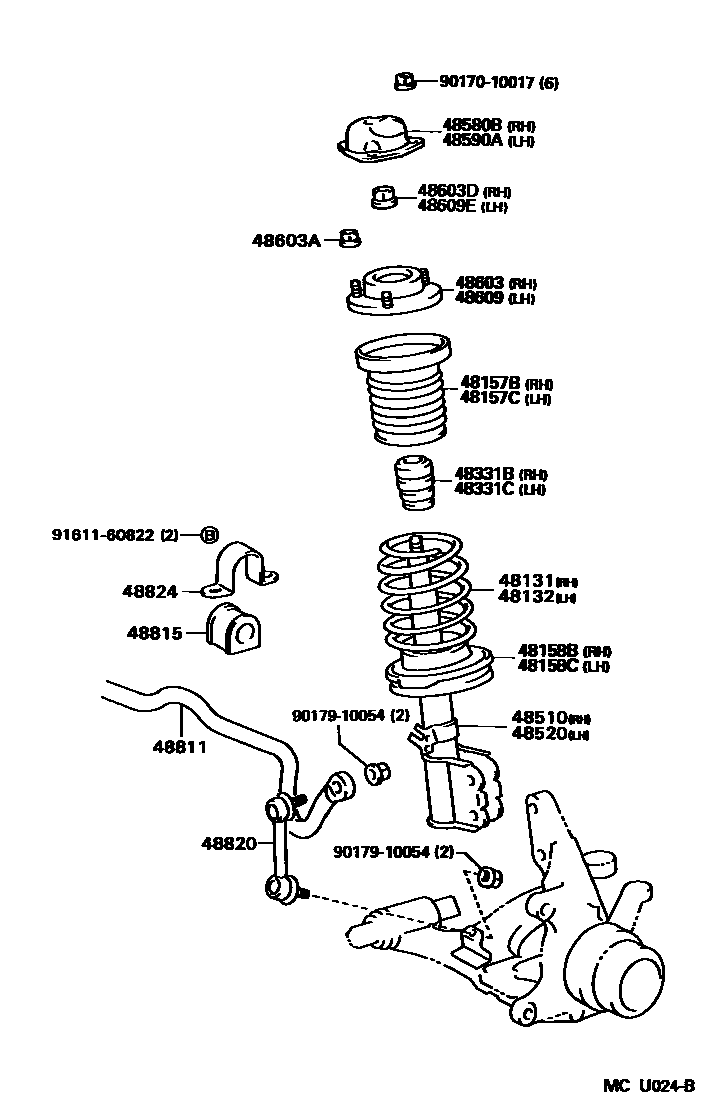

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-33250iVCV10199211-199408

sub48131-33290

main48131-33410iSXV10199211-199408

main48131-33530iVCV10199408-199608

main48131-33590iSXV10199408-199608

48132SPRING, FRONT COIL, LH

main48131-33250iVCV10199211-199408

sub48131-33290

main48131-33410iSXV10199211-199408

main48131-33530iVCV10199408-199608

main48131-33590iSXV10199408-199608

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33020iSXV10,VCV10199211-199408

main48157-33030iSXV10,VCV10199408-199608

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33020iSXV10,VCV10199211-199408

main48157-33030iSXV10,VCV10199408-199608

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33010iVCV10199211-199408

3.0G

main48158-33020iSXV10,VCV10199408-199608

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33010iVCV10199211-199408

3.0G

main48158-33020iSXV10,VCV10199408-199608

48331BBUMPER, FRONT SPRING, RH

main48331-33020iSXV10,VCV10199211-199608

sub48331-33021

48331CBUMPER, FRONT SPRING, LH

main48331-33020iSXV10,VCV10199211-199608

sub48331-33021

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-33060iSXV10,VCV10199211-199408

sub48510-80141

main48510-33070iSXV10,VCV10199211-199408

main48510-39295iSXV10,VCV10199408-199608

sub48510-80134

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-33060iSXV10,VCV10199211-199408

sub48520-39675

main48520-33070iSXV10,VCV10199211-199408

main48520-39115iSXV10,VCV10199408-199608

sub48520-39655

48580BCAP ASSY, FRONT SHOCK ABSORBER, RH

main48580-33010iSXV10,VCV10199211-199408

48590ACAP ASSY, FRONT SHOCK ABSORBER, LH

main48590-33010iSXV10,VCV10199211-199408

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06010iVCV10199211-199306

sub48609-06011

main48609-06011iVCV10199306-199408

main48609-07010iSXV10,VCV10199411-199608

main48609-33010iVCV10199211-199306

sub48609-33011

main48609-33011iVCV10199211-199408

main48609-33050iSXV10199211-199306

sub48609-33051

main48609-33051iSXV10199211-199408

main48609-33070iSXV10,VCV10199408-199608

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iSXV10,VCV10199211-199608

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iSXV10,VCV10199211-199608

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06010iVCV10199211-199306

sub48609-06011

main48609-06011iVCV10199306-199408

main48609-07010iSXV10,VCV10199411-199608

main48609-33010iVCV10199211-199306

sub48609-33011

main48609-33011iVCV10199211-199408

main48609-33050iSXV10199211-199306

sub48609-33051

main48609-33051iSXV10199211-199408

main48609-33070iSXV10,VCV10199408-199608

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iSXV10,VCV10199211-199608

48811BAR, STABILIZER, FRONT

main48811-06020iSXV10,VCV10199211-199608

GREEN PAINTED

main48811-06040iSXV10,VCV10199405-199408

NO PAINTED

sub48811-33010

main48811-33010iSXV10,VCV10199211-199608

WHITE PAINTED

main48811-33010iSXV10,VCV10199408-199501

main48811-33010iSXV10,VCV10199501-199608

GREEN PAINTED

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33010iSXV10,VCV10199211-199405

sub48815-33011

main48815-33011iSXV10,VCV10199405-199608

48820LINK ASSY, FRONT STABILIZER

main48820-33010iSXV10,VCV10199211-199608

48824BRACKET, STABILIZER, FRONT

main48824-33010iSXV10,VCV10199211-199403

main48824-33020iSXV10,VCV10199403-199608

9017010017

main90170-10017

9017910054

main90179-10054

9161160822

main91611-60822

24 parts on this diagram · 2 diagrams in section
