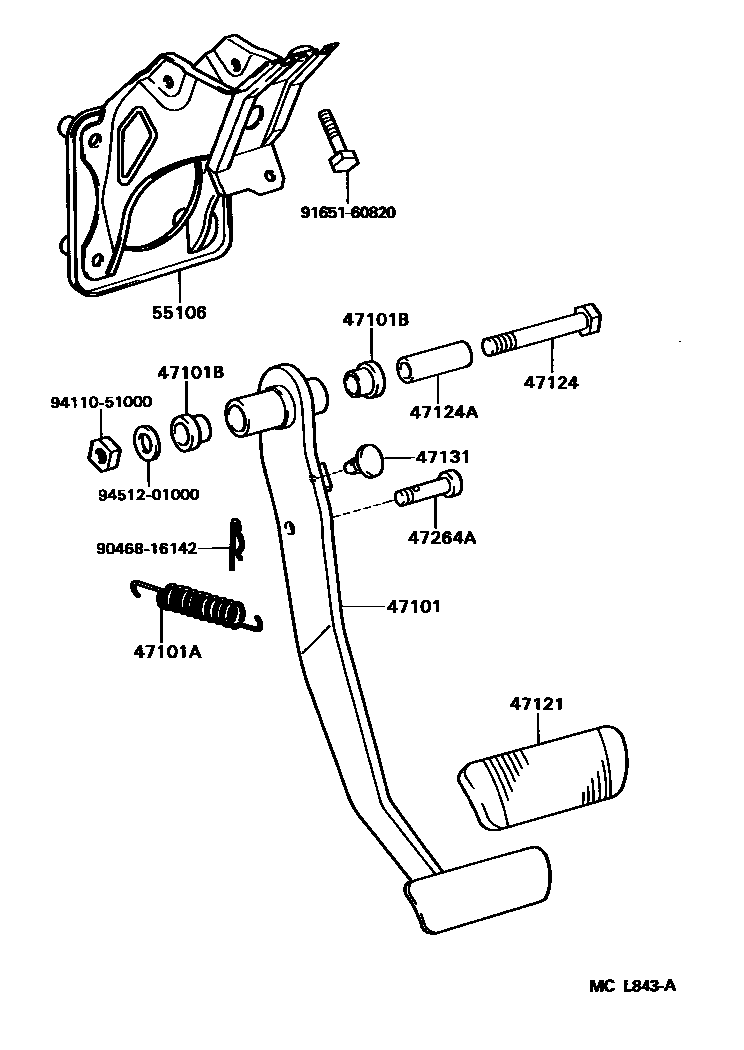

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33040iSXV10,VCV10199211-199608

sub47101-33050

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iSXV10,VCV10199211-199608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSXV10,VCV10199211-199608

47121PAD, BRAKE PEDAL

main47121-14010iSXV10,VCV10199211-199608

47124SHAFT, BRAKE PEDAL

main90101-10039iSXV10,VCV10199211-199608

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSXV10,VCV10199211-199608

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iSXV10,VCV10199211-199408

sub90541-06036

main90541-06036iSXV10,VCV10199408-199608

47264APIN(FOR PUSH ROD)

main90249-08256iSXV10,VCV10199211-199608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33020iSXV10,VCV10199211-199608

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
