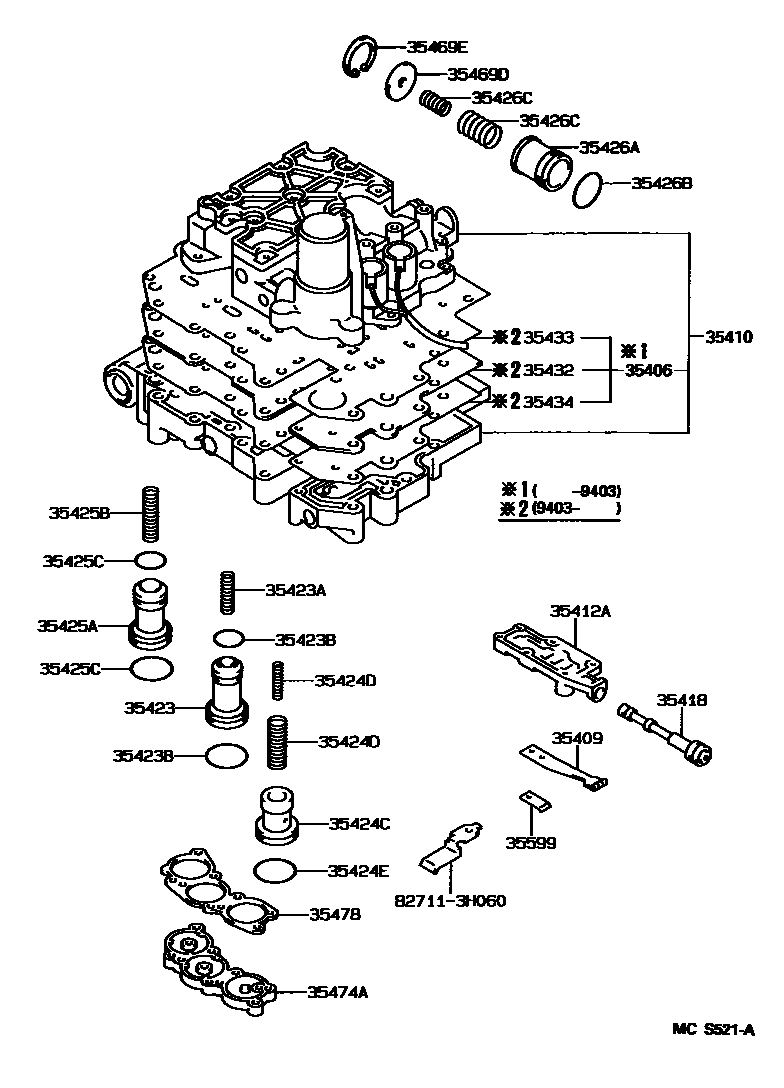

VALVE BODY & OIL STRAINER (ATM)
35406PLATE SUB-ASSY, VALVE BODY
sub04032-32H01
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35469DSPACER (FOR C-0 ACCUMULATOR PISTON)
35469ERING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35599COVER, MANUAL DETENT SPRING
827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H060
26 parts on this diagram · 9 diagrams in section
