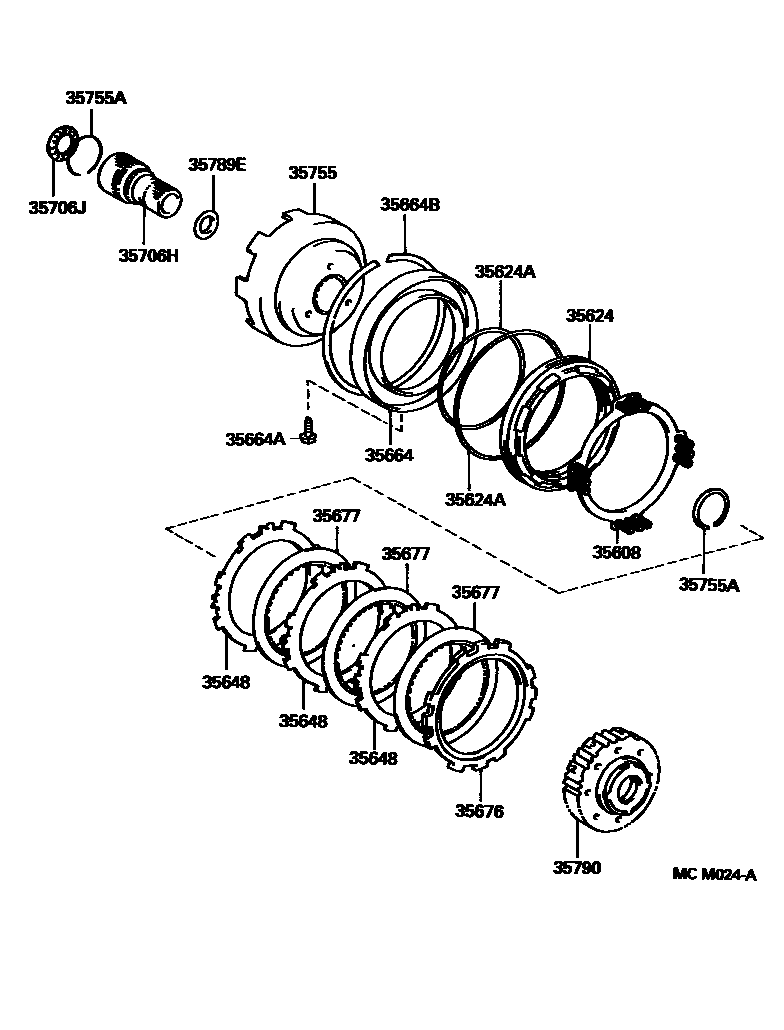

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iSXV10,VCV10199211-199608

35624PISTON, 2ND BRAKE

main35624-32010iSXV10,VCV10199211-199608

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iSXV10,VCV10199211-199608

main90301-99023iSXV10,VCV10199211-199608

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010×3iSXV10199211-199608

main35648-32030×3iVCV10199211-199608

35664CYLINDER, 2ND BRAKE

main35664-32010iSXV10,VCV10199211-199608

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iSXV10,VCV10199211-199608

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iSXV10,VCV10199211-199608

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iSXV10,VCV10199211-199608

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-32050×3iSXV10199211-199608

main35677-33020×3iVCV10199211-199411

main35677-33021×3iVCV10199411-199608

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iSXV10199211-199608

main35706-33010iVCV10199211-199212

main35706-33011iVCV10199212-199608

sub35706-33012

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iSXV10199211-199608

main90374-30008iVCV10199211-199608

sub90374-30014

35755DRUM, SUN GEAR INPUT

main35755-32020iSXV10199211-199608

main35755-32030iVCV10199211-199608

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iVCV10199211-199608

main90520-44002iSXV10199211-199408

main90520-47003iSXV10199211-199408

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iSXV10199211-199608

35790CLUTCH ASSY, 1 WAY

main35790-32031iVCV10199211-199608

main35790-32050iSXV10199211-199608

15 parts on this diagram · 1 diagram in section
