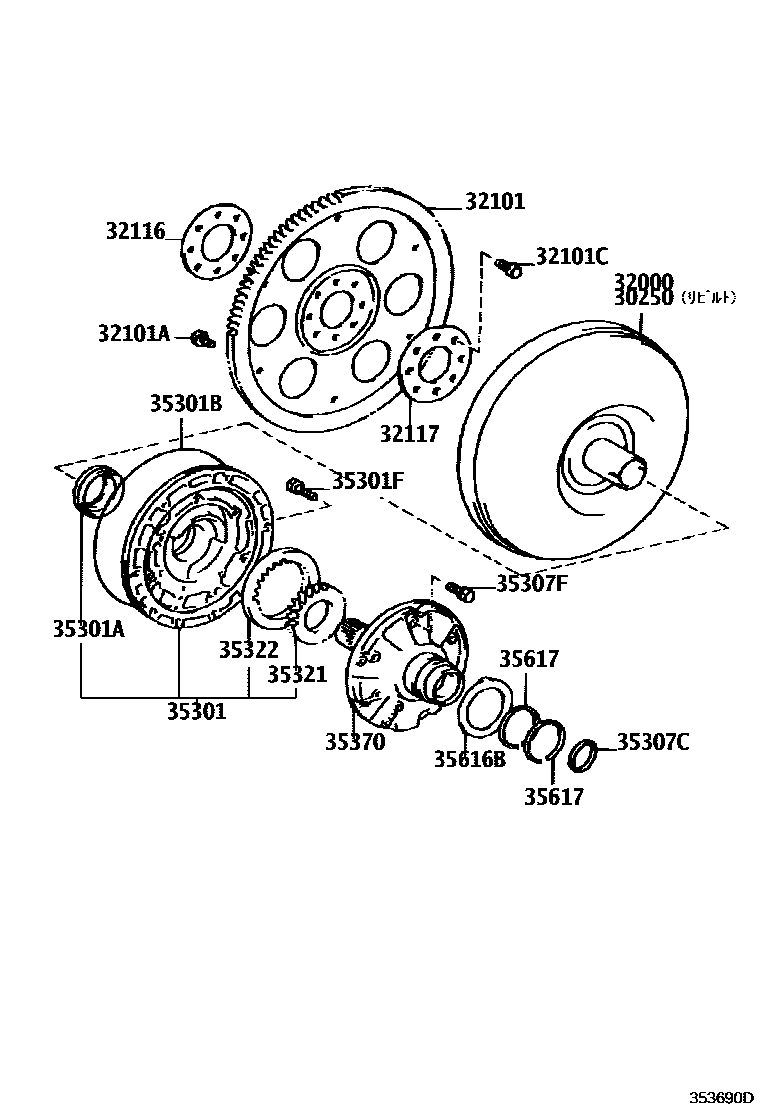

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20190iSXV10199211-199608

main30250-33010iVCV10199211-199608

32000CONVERTER ASSY, TORQUE

main32000-20190iSXV10199211-199608

main32000-33010iVCV10199211-199608

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32050iSXV10199211-199406

sub32101-32051

main32101-32051iSXV10199406-199608

main32101-32080iVCV10199211-199608

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSXV10199211-199608

main90119-08498iSXV10199211-199608

main90119-09018iVCV10199211-199608

sub90119-09025

main90119-09019iVCV10199211-199608

sub90109-09001

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVCV10199211-199608

main90109-10054iSXV10199211-199608

32116SPACER, DRIVE PLATE, FRONT

main32116-32011iSXV10199211-199608

main32116-32020iVCV10199211-199608

32117SPACER, DRIVE PLATE, REAR

main32117-32010iSXV10199211-199608

main32117-32020iVCV10199211-199608

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iSXV10199211-199608

main35035-32020iSXV10199211-199608

sub35035-32H00

main35035-32030iVCV10199211-199608

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iVCV10199211-199608

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iSXV10,VCV10199211-199608

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iSXV10,VCV10199211-199608

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iSXV10199211-199608

main35789-32030iSXV10199211-199608

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iSXV10,VCV10199211-199512

main90119-06808iSXV10,VCV10199512-199608

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iVCV10199211-199608

main35321-12030iVCV10199211-199608

main35321-12040iVCV10199211-199608

main35321-12050iVCV10199211-199608

main35321-12060iVCV10199211-199608

main35321-12070iSXV10199211-199608

main35321-12080iSXV10199211-199608

main35321-12090iSXV10199211-199608

main35321-12100iSXV10199408-199608

main35321-12110iSXV10199211-199608

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iVCV10199211-199608

main35322-12020iVCV10199211-199608

main35322-12030iVCV10199211-199608

main35322-12040iVCV10199211-199608

main35322-12050iVCV10199211-199608

main35322-12060iSXV10199211-199608

main35322-12070iSXV10199211-199608

main35322-12080iSXV10199211-199608

main35322-12090iSXV10199408-199608

main35322-12100iSXV10199211-199608

35370SHAFT ASSY, STATOR

main35370-12040iSXV10199211-199608

main35370-32050iSXV10199211-199608

sub35035-32H00

main35370-33010iVCV10199211-199608

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iSXV10,VCV10199211-199608

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iSXV10,VCV10199211-199608

18 parts on this diagram · 1 diagram in section
