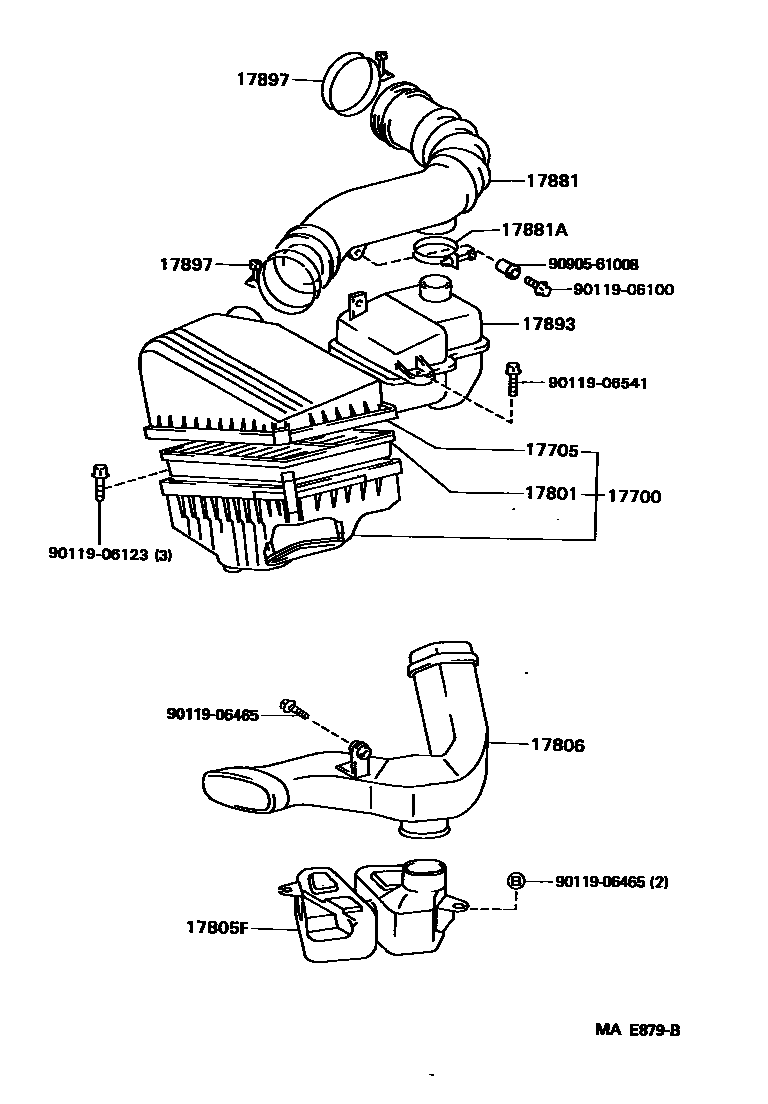

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-62040i3VZFE..VCV10199211-199608

main17700-74380i5SFE..SXV10199211-199608

17705CAP SUB-ASSY, AIR CLEANER

main17705-03030i5SFE..SXV10199211-199508

main17705-62040i3VZFE..VCV10199211-199608

main17705-74260i5SFE..SXV10199211-199608

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-03010i5SFE..SXV10199301-199608

main17801-74060i5SFE..SXV10199211-199608

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-74100i3VZFE..VCV10199211-199608

main17805-74110i5SFE..SXV10199211-199608

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17806-74010i3VZFE..VCV10199211-199608

sub17806-20010

main17806-74020i5SFE..SXV10199211-199608

17881HOSE, AIR CLEANER, NO.1

main17881-62040i3VZFE..VCV10199211-199608

main17881-62060i3VZFE..VCV10199211-199408

main17881-62060i3VZFE..VCV10199408-199608

main17881-74490i5SFE..SXV10199211-199608

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i3VZFE..VCV10199211-199306

THROTTLE BODY SIDE

sub90460-80006

main90460-80001i3VZFE..VCV10199408-199608

sub90460-80006

main90467-41003i3VZFE..VCV10199211-199408

main90467-41003i3VZFE..VCV10199211-199608

RESONATOR SIDE

main96111-10570i5SFE..SXV10199308-199608

main96111-10800i3VZFE..VCV10199306-199608

THROTTLE BODY SIDE

main96111-10900i3VZFE..VCV10199211-199408

main96111-10900i3VZFE..VCV10199211-199608

AIR FLOW METER SIDE

17893RESONATOR, INTAKE AIR

main17893-62030i3VZFE..VCV10199211-199608

main17893-74190i5SFE..SXV10199211-199608

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10710i5SFE..SXV10199211-199608

9011906100

main90119-06100

9011906123

main90119-06123

9011906465

main90119-06465

9011906541

main90119-06541

9090561008

main90905-61008

14 parts on this diagram · 2 diagrams in section
