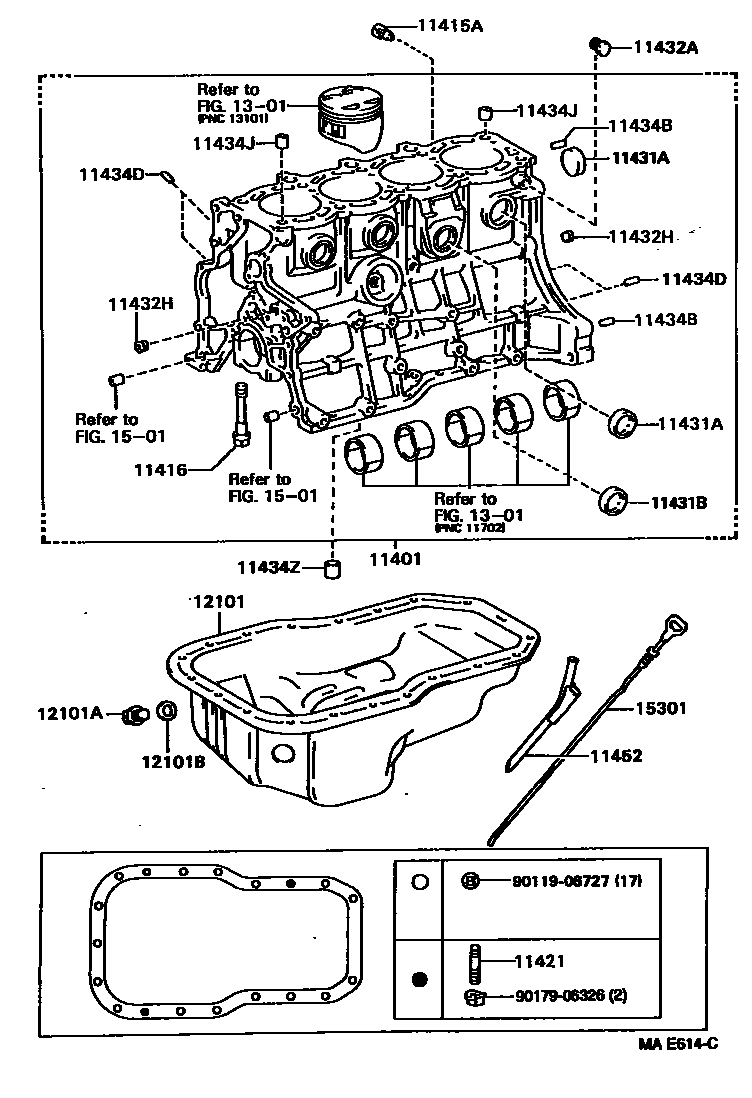

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69457i3VZFE..VCV10199211-199608

main11401-79565i5SFE..SXV10199211-199508

sub11401-79566

main11401-79566i5SFE..SXV10199508-199608

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i3VZFE..VCV10199307-199608

main90910-09100i3VZFE..VCV10199211-199307

sub90910-09095

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i5SFE..SXV10199211-199608

main90910-09087i3VZFE..VCV10199307-199608

main96432-23814i3VZFE..VCV10199211-199307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i5SFE..SXV10199211-199608

main90910-02072i3VZFE..VCV10199211-199608

sub90910-02176

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i5SFE..SXV10199211-199608

main90116-06119i3VZFE..VCV10199211-199608

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-35005i3VZFE..VCV10199406-199608

main96411-43500i5SFE..SXV10199211-199608

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i5SFE..SXV10199211-199608

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i5SFE..SXV10199211-199608

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006i5SFE..SXV10199211-199608

main90344-53015i3VZFE..VCV10199211-199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i5SFE..SXV10199211-199608

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i5SFE..SXV10199211-199608

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i5SFE..SXV10199211-199608

main90253-16001i3VZFE..VCV10199211-199608

11434ZPIN, RING(FOR BALANCER)

main90253-13001i5SFE..SXV10199211-199608

11452GUIDE, OIL LEVEL GAGE

main11452-62030i3VZFE..VCV10199211-199608

main11452-74070i5SFE..SXV10199211-199608

12101PAN SUB-ASSY, OIL

main12101-62050i3VZFE..VCV10199211-199608

main12101-74110i5SFE..SXV10199211-199607

sub12101-74111

main12101-74111i5SFE..SXV10199607-199608

sub12101-74091

sub12129-54010

sub91651-60614

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3VZFE..VCV10199211-199608

main90341-12026i5SFE..SXV10199211-199608

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i3VZFE..VCV10199211-199312

sub90430-12031

main90430-12031i5SFE..SXV10199211-199608

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62040i3VZFE..VCV10199211-199608

main15301-74070i5SFE..SXV10199211-199608

9011906727

main90119-06727

9017906326

main90179-06326

22 parts on this diagram · 2 diagrams in section
