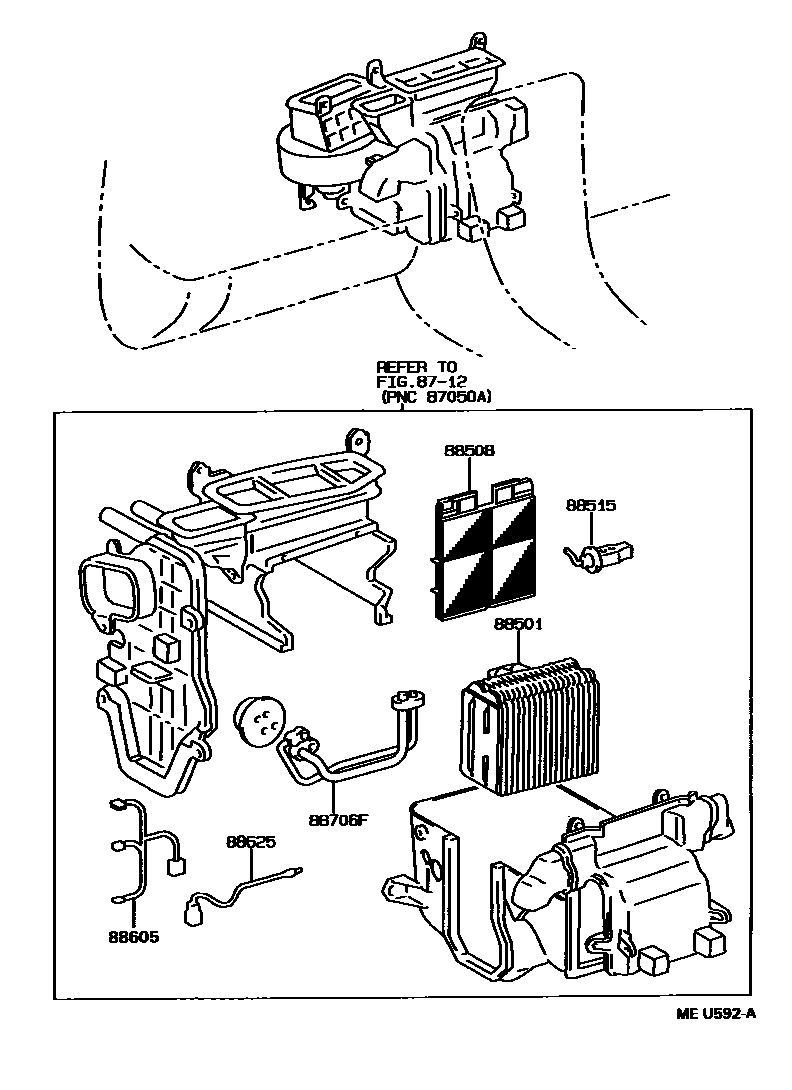

HEATING & AIR CONDITIONING - COOLER UNIT

8712

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33010iSXV15,VCV15199207-199309

main88501-33040iSXV15,VCV15199309-199408

sub88501-33070

main88501-33070iSXV15,VCV15199408-199607

sub88501-33080

88508FILTER SUB-ASSY, CLEAN AIR

main88880-33010iSXV15,VCV15¥4,000199207-199607

sub88880-33060¥3,000

88515VALVE, COOLER EXPANSION

main88515-14062iSXV15,VCV15¥10,500199207-199309

sub88515-33010¥10,300

main88515-20100iSXV15,VCV15¥10,300199309-199607

sub88515-22240¥10,200

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-33010iSXV15..WG199310-199408

main88605-33010iSXV15,VCV15199207-199607

main88605-33010iSXV15..WG199408-199607

main88605-33030iSXV15..WG199309-199607

88625THERMISTOR, COOLER, NO.1

main88625-33060iSXV15,VCV15199309-199607

88706FTUBE SUB-ASSY, LIQUID, F

main88706-33030iSXV15,VCV15¥12,800199207-199309

main88716-33150iSXV15,VCV15¥10,900199309-199607

7 parts on this diagram · 1 diagram in section
