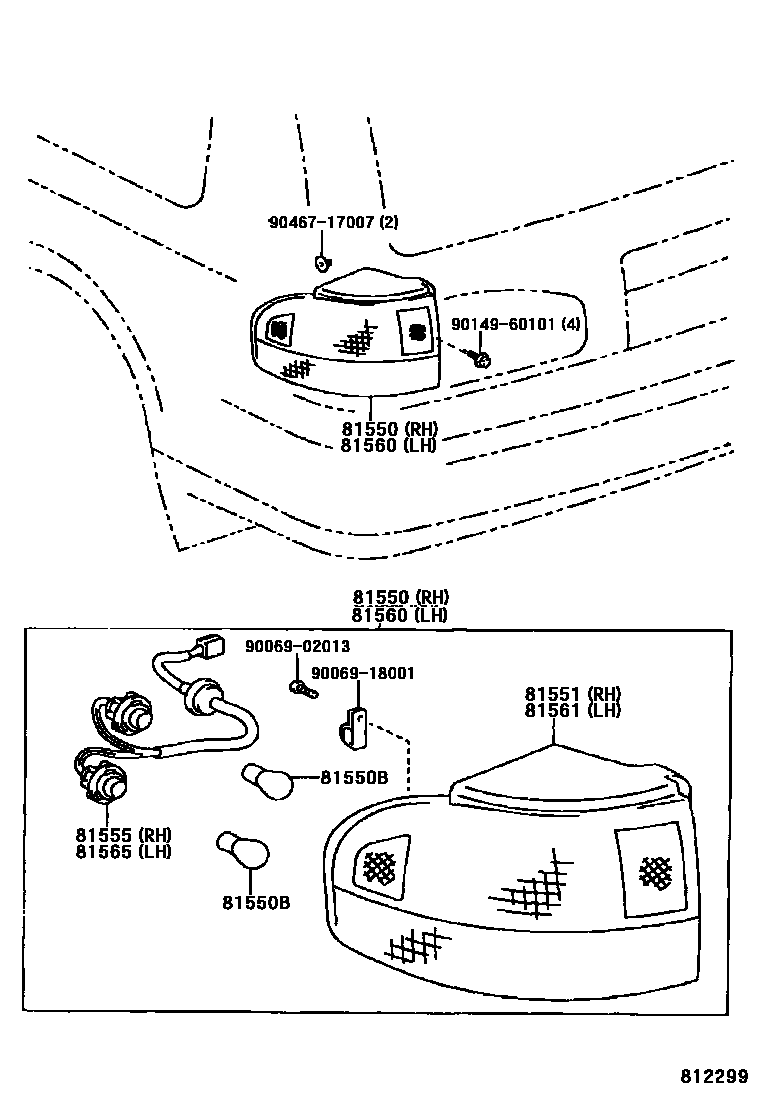

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06040iSXV15,VCV15..WG¥25,200199207-199607

main81550-06061iSXV15,VCV15..CP199310-199408

main81550-06080iSXV15,VCV15..CP¥21,800199408-199607

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iSXV15,VCV15¥170199207-199607

main99132-21210iSXV15,VCV15¥190199207-199607

81551LENS, REAR COMBINATION LAMP, RH

main81551-06040iSXV15,VCV15..WG¥22,200199208-199607

main81551-06061iSXV15,VCV15..CP¥21,800199310-199408

main81551-06080iSXV15,VCV15..CP¥18,700199408-199607

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-06020iSXV15,VCV15..WG¥2,240199208-199607

main81555-06030iSXV15,VCV15..CP¥2,030199310-199607

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06040iSXV15,VCV15..WG¥25,200199207-199607

main81560-06061iSXV15,VCV15..CP199310-199408

main81560-06080iSXV15,VCV15..CP¥21,800199408-199607

81561LENS, REAR COMBINATION LAMP, LH

main81561-06040iSXV15,VCV15..WG¥22,200199208-199607

main81561-06061iSXV15,VCV15..CP¥21,800199310-199408

main81561-06080iSXV15,VCV15..CP¥18,700199410-199607

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-06020iSXV15,VCV15..WG¥2,240199304-199607

main81555-06030iSXV15,VCV15..CP¥2,030199310-199607

main81565-06020iSXV15,VCV15¥2,230199208-199304

sub81555-06020¥2,240

9006902013

main90069-02013¥120

9006918001

main90069-18001¥270

9014960101

main90149-60101¥120

9046717007

main90467-17007¥240

11 parts on this diagram · 3 diagrams in section
