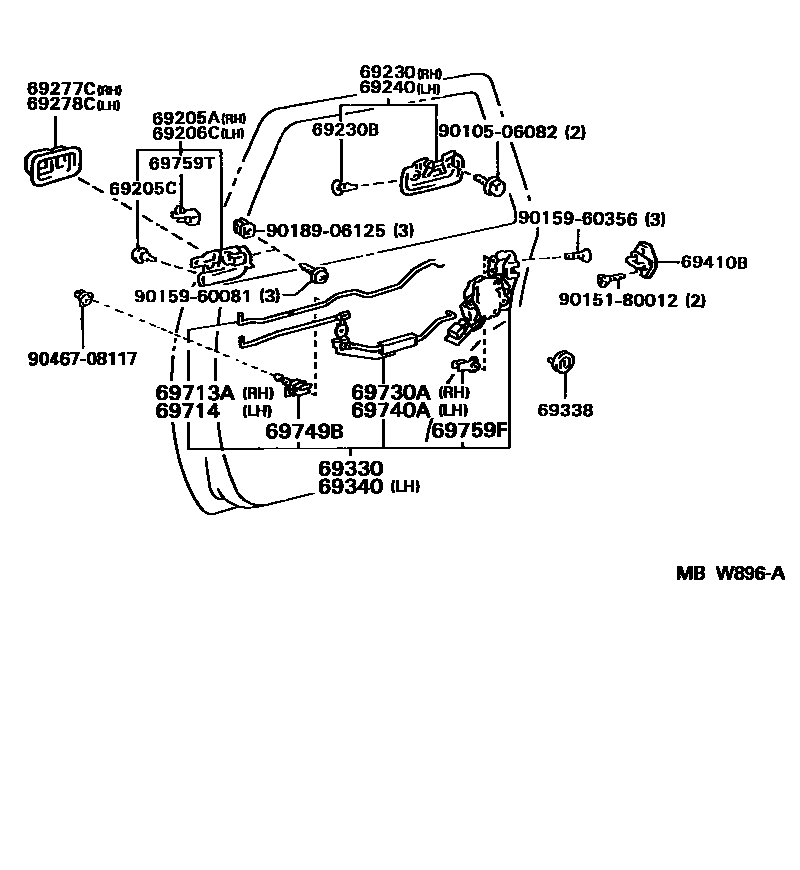

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
RED MM,3K4
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK.BLUE M.M.,8K0
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
RED MM,3K4
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK.BLUE M.M.,8K0
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69330LOCK ASSY, REAR DOOR, RH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
9010506082
main90105-06082
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9018906125
main90189-06125
9046708117
main90467-08117
25 parts on this diagram · 1 diagram in section
