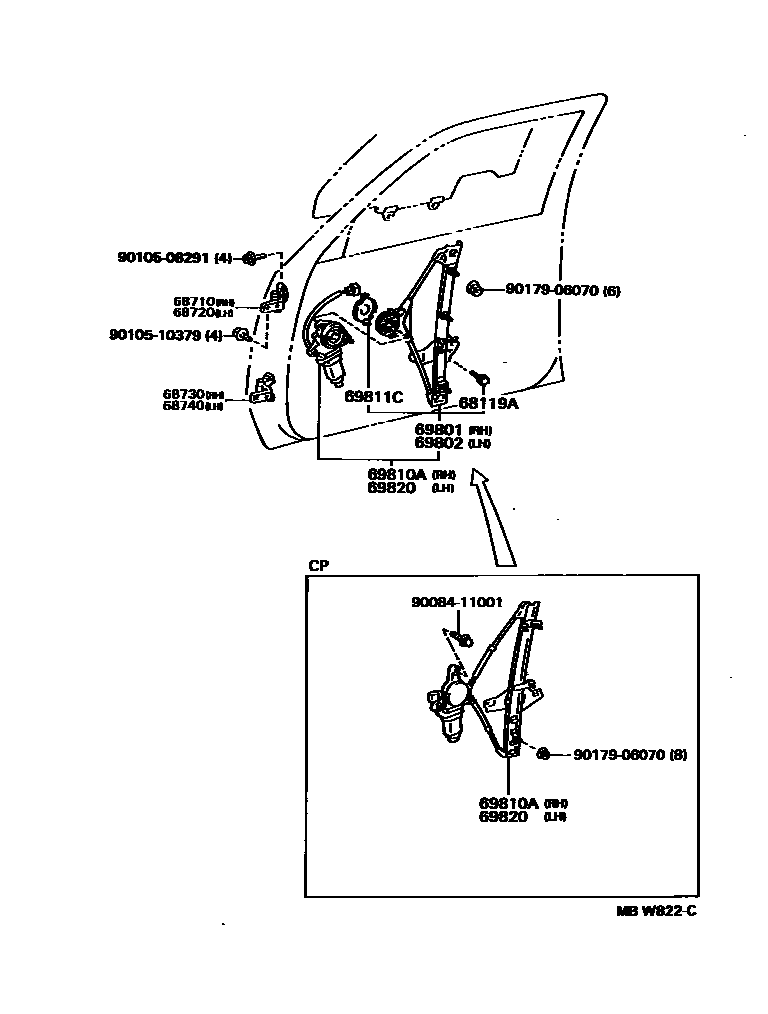

FRONT DOOR WINDOW REGULATOR & HINGE

68119ACUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1

main69888-06010×2iSXV15,VCV15..WG199308-199607

main69888-33010×2iSXV15,VCV15199212-199308

sub69888-33011

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32040iSXV15,VCV15199207-199607

sub68710-32050

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32040iSXV15,VCV15199207-199607

sub68720-32050

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32030iSXV15,VCV15199207-199607

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-32030iSXV15,VCV15199207-199607

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06010iSXV15,VCV15199207-199309

main69801-06011iSXV15,VCV15..WG199309-199607

main69801-AA010iSXV15,VCV15..CP199310-199607

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06010iSXV15,VCV15..WG199207-199607

sub69802-06011

main69802-AA010iSXV15,VCV15..CP199310-199607

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-06020iSXV15,VCV15199207-199309

main69810-06021iSXV15,VCV15..WG199309-199607

main69810-AA020iSXV15,VCV15..CP199310-199607

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-06010×2iSXV15,VCV15..WG199207-199408

main69811-06020iSXV15,VCV15..WG199408-199607

main69812-06010iSXV15,VCV15..WG199408-199607

main69813-06010iSXV15,VCV15..CP199409-199501

main69813-AA010iSXV15,VCV15..CP199501-199607

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-06020iSXV15,VCV15199207-199309

main69820-06021iSXV15,VCV15..WG199309-199607

main69820-AA020iSXV15,VCV15..CP199310-199607

9008411001

main90084-11001

9010508291

main90105-08291

9010510379

main90105-10379

9017906070

main90179-06070

14 parts on this diagram · 1 diagram in section
