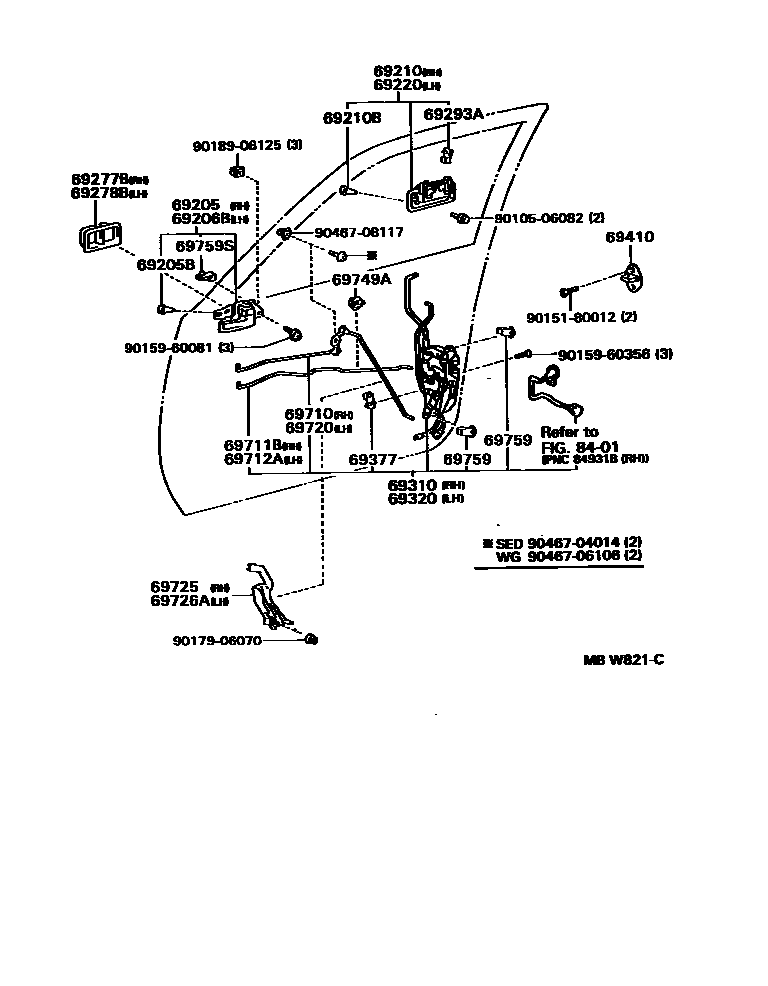

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLUISH SILVER ME.,1A0
SU.RED 3,3J6
RED MM,3K4
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK.BLUE M.M.,8K0
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLUISH SILVER ME.,1A0
SU.RED 3,3J6
RED MM,3K4
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK.BLUE M.M.,8K0
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
GREEN
GRAY
GREEN
GRAY
8401
9010506082
main90105-06082
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9017906070
main90179-06070
9018906125
main90189-06125
9046704014
main90467-04014
9046706106
main90467-06106
9046708117
main90467-08117
32 parts on this diagram · 2 diagrams in section
