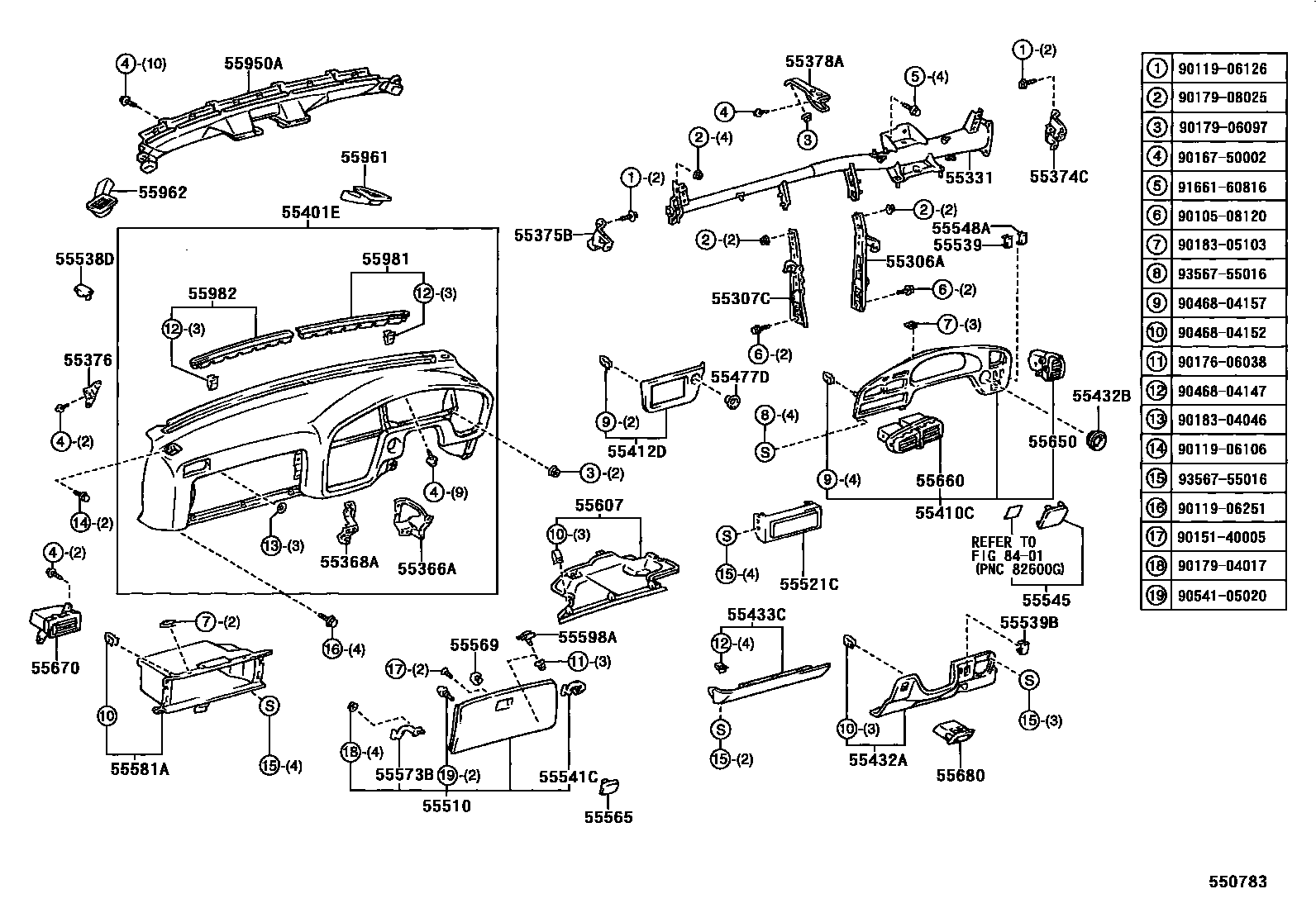

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55366ABRACKET, RADIO MOUNTING, NO.1
55368ABRACKET, RADIO MOUNTING, NO.2
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
55477DCOVER, CIGARETTE LIGHTER HOLE
55510DOOR ASSY, GLOVE COMPARTMENT
55521CCOVER, STEREO OPENING
sub55521-32020
55538DCOVER, SUNSHINE SENSOR HOLE
55539COVER, SPARE SWITCH HOLE
55539BCOVER, SPARE SWITCH HOLE, NO.2
55541CARM, GLOVE COMPARTMENT HINGE, RH
55545COVER, FUSE BOX OPENING
55548ACOVER, INSTRUMENT PANEL HOLE
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH
55581ACOMPARTMENT, GLOVE
55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
MEDIUM GRAY,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#
OAK,TRIM4#
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
8401
9010508120
main90105-08120
9011906106
main90119-06106
9011906126
main90119-06126
9011906251
main90119-06251
9015140005
main90151-40005
9016750002
main90167-50002
9017606038
main90176-06038
9017904017
main90179-04017
9017906097
main90179-06097
9017908025
main90179-08025
9018304046
main90183-04046
9018305103
main90183-05103
9046804147
main90468-04147
9046804152
main90468-04152
9046804157
main90468-04157
9054105020
main90541-05020
9166160816
main91661-60816
9356755016
main93567-55016
58 parts on this diagram · 1 diagram in section
