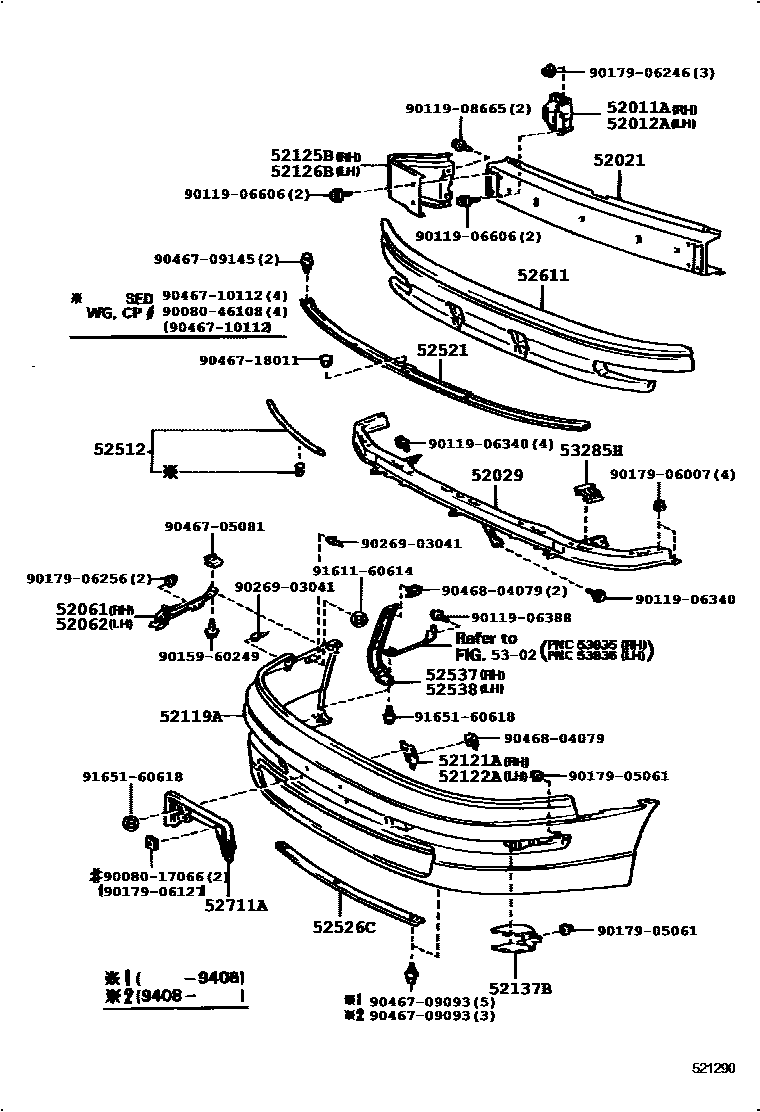

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
BLUISH SILVER ME.,1A0
SU.RED 3,3J6
RED MM,3K4
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK.BLUE M.M.,8K0
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52137BPLATE, FRONT BUMPER BRACKET, NO.1
52512FILLER, FRONT BUMPER, RH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52526CRETAINER, FRONT BUMPER, LOWER
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52611ABSORBER, FRONT BUMPER ENERGY
52711AGARNISH, FRONT BUMPER
5302
53285HSEAL, RADIATOR SIDE AIR, NO.1
9008017066
main90080-17066
9008046108
main90080-46108
9011906340
main90119-06340
9011906388
main90119-06388
9011906606
main90119-06606
9011908665
main90119-08665
9015960249
main90159-60249
9017905061
main90179-05061
9017906007
main90179-06007
9017906127
main90179-06127
9017906246
main90179-06246
9017906256
main90179-06256
9026903041
main90269-03041
9046705081
main90467-05081
9046709093
main90467-09093
9046709145
main90467-09145
9046710112
main90467-10112
9046718011
main90467-18011
9046804079
main90468-04079
9161160614
main91611-60614
9165160618
main91651-60618
42 parts on this diagram · 1 diagram in section
