FRONT AXLE ARM & STEERING KNUCKLE

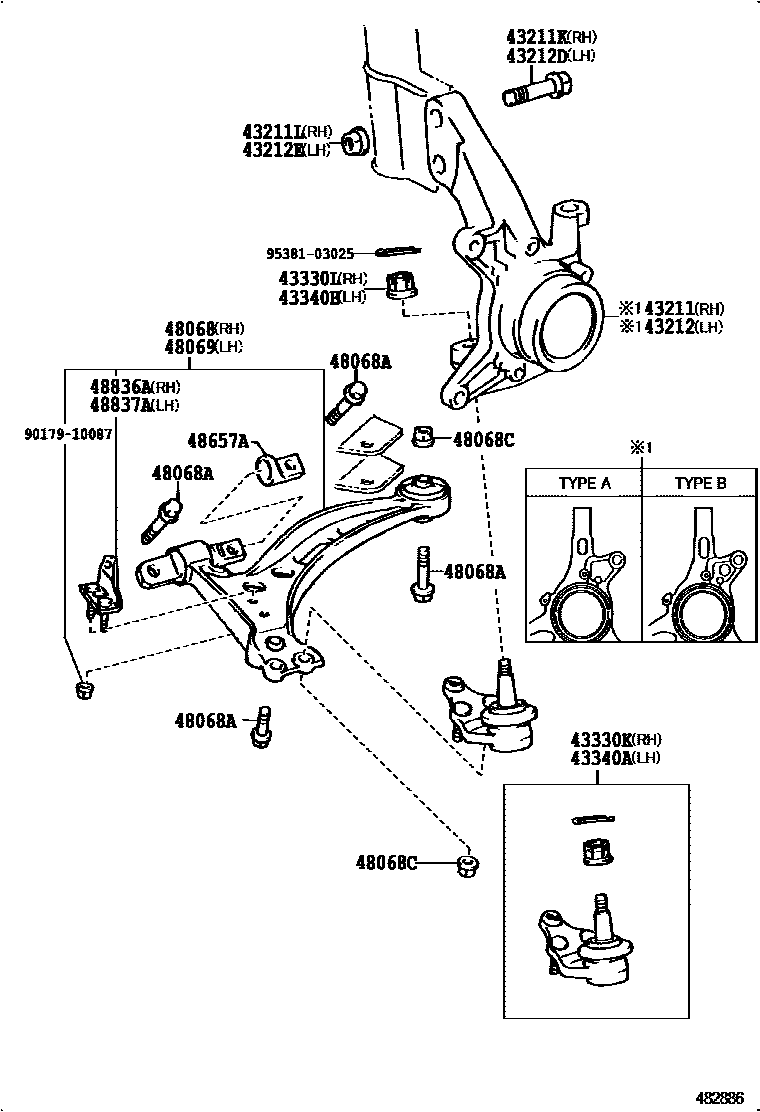

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-06010i199207-199408
main43211-06010i199408-199607
main43211-06020i199408-199505
sub43211-06021
sub90389-16020
main43211-06020i199408-199505
sub43211-06021
sub90389-16020
main43211-06020i199408-199505
sub43211-06021
sub90389-16020
main43211-06020i199207-199408
sub43211-06021
sub90389-16020
main43211-06020i199310-199408
sub43211-06021
sub90389-16020
main43211-06021i199505-199607
main43211-06021i199505-199508
main43211-06021i199505-199607
main43211-06021i199508-199607
main43211-06050i199408-199505
sub43211-06051
sub90389-16020
main43211-06050i199408-199505
sub43211-06051
sub90389-16020
main43211-06050i199408-199505
sub43211-06051
sub90389-16020
main43211-06051i199508-199607
main43211-06051i199505-199607
main43211-06051i199505-199508
main43211-33020i199408-199607
sub43211-33011
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-17001i199207-199607
main90105-17003i199207-199607
main90105-17004i199207-199607
main90105-17005i199207-199607
43211LNUT (FOR STEERING KNUCKLE RH)
main90179-17001i199207-199607
43212KNUCKLE, STEERING, LH
main43212-06010i199408-199607
main43212-06010i199207-199408
main43212-06020i199408-199505
sub43212-06021
sub90389-16020
main43212-06020i199207-199408
sub43212-06021
sub90389-16020
main43212-06020i199310-199408
sub43212-06021
sub90389-16020
main43212-06020i199408-199505
sub43212-06021
sub90389-16020
main43212-06020i199408-199505
sub43212-06021
sub90389-16020
main43212-06021i199505-199607
main43212-06021i199505-199508
main43212-06021i199508-199607
main43212-06021i199505-199607
main43212-06050i199408-199505
sub43212-06051
sub90389-16020
main43212-06050i199408-199505
sub43212-06051
sub90389-16020
main43212-06050i199408-199505
sub43212-06051
sub90389-16020
main43212-06051i199505-199607
main43212-06051i199505-199508
main43212-06051i199505-199607
main43212-06051i199508-199607
main43212-33020i199408-199607
sub43212-33011
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-17001i199207-199607
main90105-17003i199207-199607
main90105-17004i199207-199607
main90105-17005i199207-199607
43212ENUT (FOR STEERING KNUCKLE LH)
main90179-17001i199207-199607
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-09050i199304-199607
main43330-39285i199207-199408
sub43330-39435
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-14003i199207-199607
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43330-09050i199304-199607
main43330-39285i199207-199408
sub43330-39435
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-14003i199207-199607
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-06010i199207-199408
sub48068-07010
main48068-06050i199605-199607
main48068-07010i199408-199605
sub48068-06050
main48068-33020i199408-199607
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
main90105-12216i199207-199607
BALL JOINT SIDE
main90105-14081i199207-199607
BODY SIDE(FR)
main90105-14084i199207-199607
BODY SIDE(CTR & RR)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
main90179-12103i199207-199607
BALL JOINT SIDE
main90179-14048i199207-199607
BODY SIDE
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-06010i199207-199408
sub48069-07010
main48069-06050i199605-199607
main48069-07010i199408-199605
sub48069-06050
main48069-33020i199408-199607
48657ASTOPPER, FRONT LOWER ARM BUSH
main48657-33010i199207-199604
sub48657-33020
main48657-33020i199604-199607
48836ABRACKET, FRONT STABILIZER END, RH
main48836-33010i199207-199408
sub48836-33011
main48836-33011i199408-199607
48837ABRACKET, FRONT STABILIZER END, LH
main48837-33010i199207-199408
sub48837-33011
main48837-33011i199408-199607
9017910087
main90179-10087
9538103025
main95381-03025

19 parts on this diagram · 1 diagram in section
