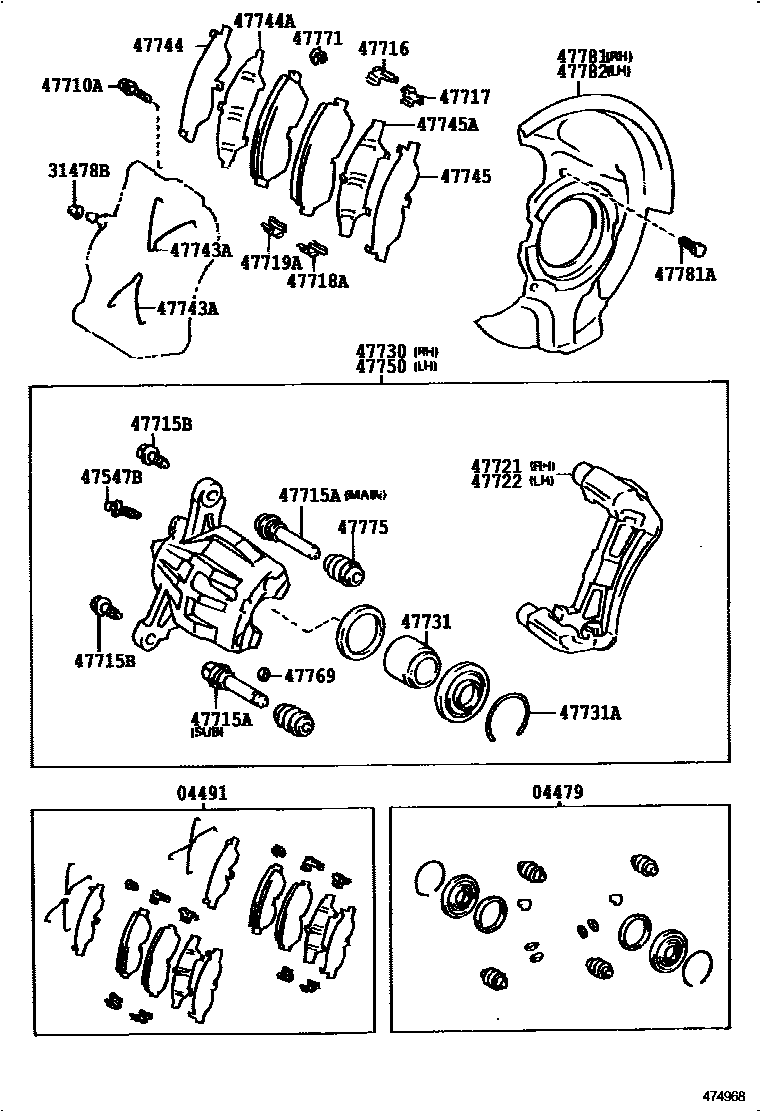

FRONT DISC BRAKE CALIPER & DUST COVER

Parts diagram
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-06010i199207-199309
main04479-07030i199408-199607
main04479-33010i199408-199607
main04479-50080i199309-199408
04491PAD KIT, DISC BRAKE, FRONT
main04491-06020i199207-199309
main04491-06060i199212-199309
main04491-06070i199312-199505
main04491-06080i199312-199408
main04491-07010i199408-199505
main04491-33011i199309-199312
main04491-33100i199309-199312
main04491-33110i199309-199408
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010×2i199207-199607
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-03010×2i199207-199309
main47547-20010×2i199309-199607
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12208×4i199207-199607
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-02010×2i199510-199607
SUB PIN SIDE
main47715-02020×2i199510-199607
MAIN PIN SIDE
main47715-06010×4i199207-199208
main47715-06020×2i199412-199607
SUB PIN SIDE
main47715-06030×2i199412-199607
MAIN PIN SIDE
main47715-24010×4i199309-199408
main47715-50010×2i199408-199412
SUB PIN SIDE
main47715-50030×2i199208-199408
MAIN PIN SIDE
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
main90080-10034×4i199207-199309
main90080-10043×4i199408-199607
main90080-10050×4i199312-199408
main90105-08164×4i199309-199312
main90109-08214×4i199309-199408
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-06010×2i199212-199309
main47716-06030×2i199207-199309
main47716-33010×2i199309-199607
main47716-33031×2i199309-199607
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47716-06020×2i199212-199309
main47716-06040×2i199207-199309
main47716-33020×2i199309-199607
main47716-33041×2i199309-199607
47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
main47717-06010×2i199212-199309
main47717-06030×2i199207-199309
main47717-33010×2i199309-199607
main47717-33031×2i199309-199607
47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
main47717-06020×2i199212-199309
main47717-06040×2i199207-199309
main47717-33020×2i199309-199607
main47717-33041×2i199309-199607
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-06010i199212-199607
main47721-06020i199207-199408
main47721-07010i199408-199607
main47721-33050i199309-199408
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47722-06010i199212-199607
main47722-06020i199207-199408
main47722-07010i199408-199607
main47722-33050i199309-199408
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-06010i199212-199607
main47730-06020i199207-199408
main47730-07020i199408-199607
main47730-33080i199309-199408
47731PISTON, FRONT DISC BRAKE
main47731-06010×2i199207-199309
main47731-06020×2i199408-199607
sub47731-06030
main47731-07020×4i199408-199607
main47731-33010×2i199309-199312
main47731-33030×4i199309-199408
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90080-52009×2i199207-199309
main90080-52064×4i199408-199607
sub90080-52104
main90522-49001×4i199309-199408
main90522-66001×2i199309-199312
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
main47743-07010×4i199408-199607
main47743-33010×4i199310-199408
main47743-50030×4i199408-199607
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
main47745-06010×2i199212-199309
main47745-06020×2i199207-199309
main47745-06030×2i199312-199607
main47745-06040×2i199312-199408
main47745-07010×2i199408-199607
main47745-33010×2i199309-199312
main47745-33020×2i199309-199312
main47745-33030×2i199309-199408
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
main47744-06010×2i199212-199309
main47744-06020×2i199207-199309
main47744-06030×2i199312-199607
main47744-06040×2i199312-199408
main47744-07010×2i199408-199607
main47744-33010×2i199309-199312
main47744-33020×2i199309-199312
main47744-33030×2i199309-199408
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
main47745-06010×2i199212-199309
main47745-06020×2i199207-199309
main47745-06030×2i199312-199607
main47745-06040×2i199312-199408
main47745-07010×2i199408-199607
main47745-33010×2i199309-199312
main47745-33020×2i199309-199312
main47745-33030×2i199309-199408
47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
main47744-06010×2i199212-199309
main47744-06020×2i199207-199309
main47744-06030×2i199312-199607
main47744-06040×2i199312-199408
main47744-07010×2i199408-199607
main47744-33010×2i199309-199312
main47744-33020×2i199309-199312
main47744-33030×2i199309-199408
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-06010i199212-199607
main47750-06020i199207-199408
main47750-07020i199408-199607
main47750-33080i199309-199408
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-06010×2i199207-199309
main47769-50010×2i199309-199607
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-06010×2i199207-199309
main47771-33010×2i199408-199607
main47771-50010×2i199309-199408
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-50010×4i199207-199607
47781COVER, DISC BRAKE DUST, FRONT RH
main47703-06030i199207-199308
main47703-33040i199212-199308
main47781-06010i199412-199607
main47781-06020i199412-199607
sub47781-33020
main47781-06030i199308-199412
sub47781-33020
main47781-32070i199308-199412
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
main90119-06227×8i199207-199607
47782COVER, DISC BRAKE DUST, FRONT LH
main47704-06030i199207-199308
main47704-33040i199212-199308
main47782-06010i199412-199607
main47782-06020i199412-199607
main47782-06030i199308-199412
sub47782-33020
main47782-32070i199308-199412

28 parts on this diagram · 3 diagrams in section
