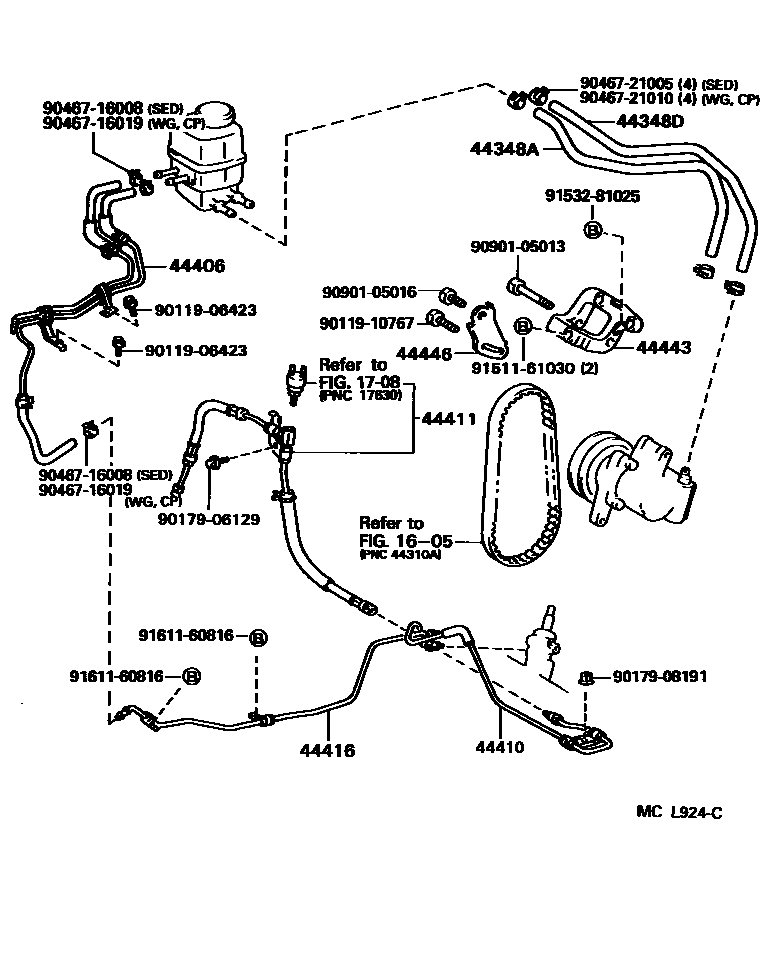

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605

1708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06060iVCV15199408-199607

main44348-06130iSXV15199408-199607

main44348-33030iVCV15199207-199607

main44348-33080iSXV15199212-199409

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-06070iVCV15199408-199607

main44348-33040iVCV15199207-199607

44406TUBE SUB-ASSY, RETURN

main44406-06011iVCV15199207-199308

sub44406-06012

main44406-06012iVCV15199308-199607

main44406-06020iSXV15199212-199607

44410TUBE ASSY, PRESSURE FEED

main44410-06041iSXV15199408-199607

main44410-06050iVCV15199207-199607

main44410-06070iSXV15199212-199408

44411HOSE, PRESSURE FEED

main44411-06010iVCV15199207-199607

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06031iSXV15199212-199607

main44416-06040iVCV15199207-199210

sub44416-06041

main44416-06041iVCV15199210-199607

44443BRACKET, PUMP

main44443-20050iSXV15199408-199607

main44443-33010iVCV15199207-199607

main44443-33020iSXV15199212-199408

44446STRUT, ADJUSTING

main44446-32020iVCV15199207-199607

9011906423

main90119-06423

9011910767

main90119-10767

9017906129

main90179-06129

9017908191

main90179-08191

9046716008

main90467-16008

9046716019

main90467-16019

9046721005

main90467-21005

9046721010

main90467-21010

9090105013

main90901-05013

9090105016

main90901-05016

9151161030

main91511-61030

9153281025

main91532-81025

9161160816

main91611-60816

23 parts on this diagram · 3 diagrams in section
