TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

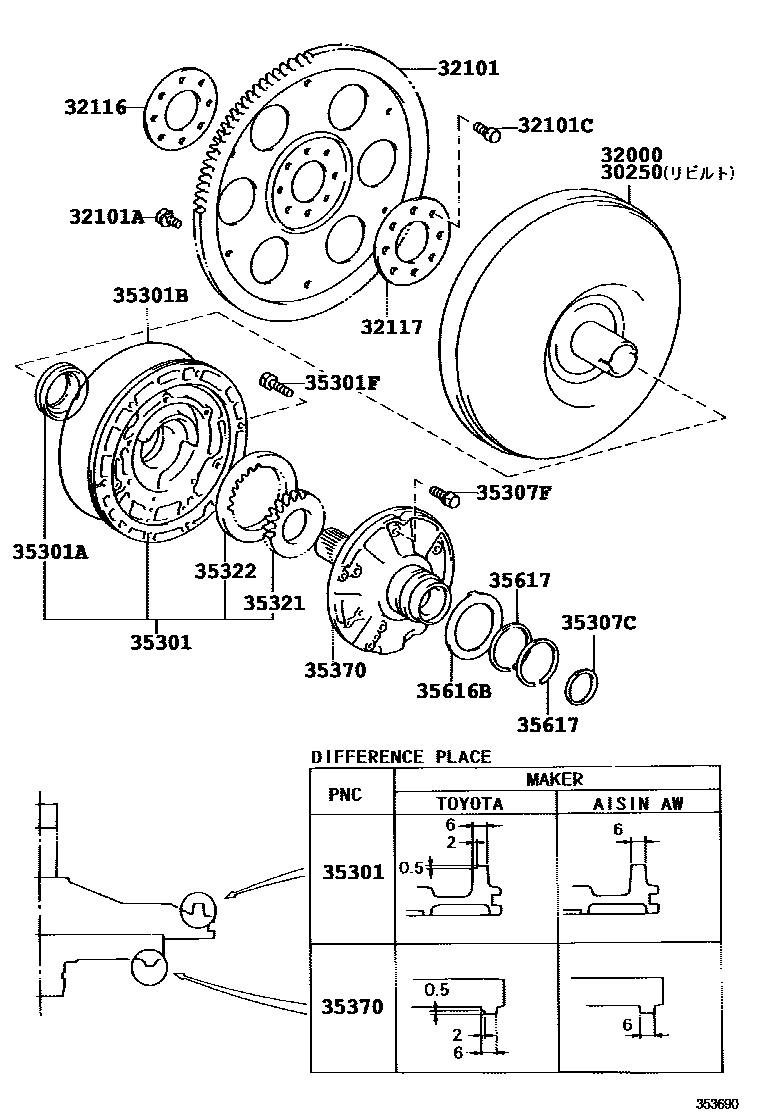

Parts diagram
30250CONVERTER ASSY, TORQUE, REBUILT
main30250-20190i199212-199607
main30250-33010i199207-199607
32000CONVERTER ASSY, TORQUE
main32000-20190i199212-199607
main32000-33010i199207-199607
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-32050i199212-199406
sub32101-32051
main32101-32051i199406-199607
main32101-32080i199207-199607
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08113i199212-199607
main90119-08498i199212-199607
main90119-09018i199207-199607
sub90119-09025
main90119-09019i199207-199607
sub90109-09001
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199207-199607
main90109-10054i199212-199607
32116SPACER, DRIVE PLATE, FRONT
main32116-32011i199212-199607
main32116-32020i199207-199607
32117SPACER, DRIVE PLATE, REAR
main32117-32010i199212-199607
main32117-32020i199207-199607
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-32010i199212-199607
main35035-32020i199212-199607
sub35035-32H00
main35035-32030i199207-199607
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199207-199607
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i199207-199607
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199207-199607
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-32020i199212-199607
main35789-32030i199212-199607
35307FBOLT (FOR STATOR SHAFT)
main90119-06180i199207-199512
main90119-06808i199512-199607
sub90119-06559
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i199207-199607
main35321-12030i199207-199607
main35321-12040i199207-199607
main35321-12050i199207-199607
main35321-12060i199207-199607
main35321-12070i199212-199607
main35321-12080i199212-199607
main35321-12090i199212-199607
main35321-12100i199408-199607
main35321-12110i199212-199607
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i199207-199607
main35322-12020i199207-199607
main35322-12030i199207-199607
main35322-12040i199207-199607
main35322-12050i199207-199607
main35322-12060i199212-199607
main35322-12070i199212-199607
main35322-12080i199212-199607
main35322-12090i199408-199607
main35322-12100i199212-199607
35370SHAFT ASSY, STATOR
main35370-12040i199212-199607
main35370-32050i199212-199607
sub35035-32H00
main35370-33010i199207-199607
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i199207-199607
35617RING, CLUTCH DRUM OIL SEAL
main35617-32011i199207-199607

18 parts on this diagram · 1 diagram in section
