IGNITION COIL & SPARK PLUG / GLOW PLUG

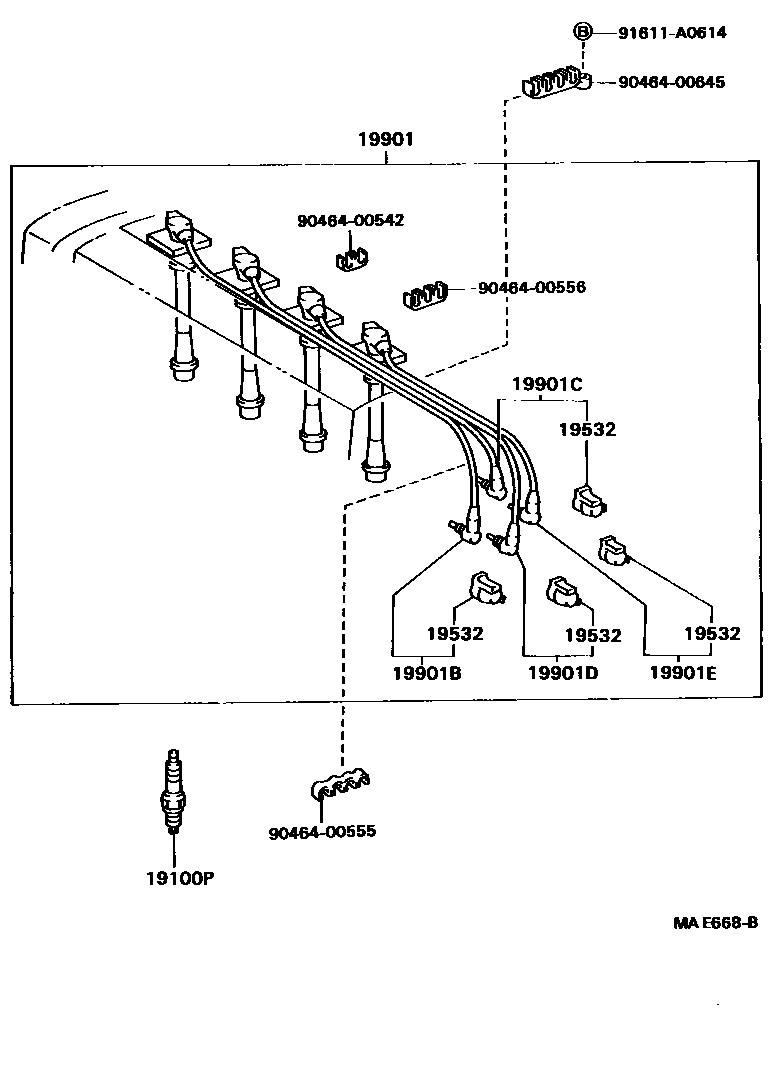

Parts diagram

19100PPLUG, SPARK

main90919-01127i199207-199607

main90919-01128i199207-199607

main90919-01178i199212-199607

main90919-01179i199408-199607

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i199212-199309

main19532-46010i199309-199607

main19532-50010i199309-199408

main19539-74030i199408-199607

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21519i199207-199607

main90919-22319i199212-199309

main90919-22370i199309-199607

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15165i199212-199309

main90919-15169i199212-199309

main90919-15173i199207-199607

main90919-15406i199309-199407

main90919-15409i199408-199607

main90919-15409i199309-199407

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15166i199212-199309

main90919-15170i199212-199309

main90919-15176i199207-199607

main90919-15408i199309-199312

main90919-15411i199309-199408

main90919-15411i199312-199607

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15167i199212-199309

main90919-15171i199212-199309

main90919-15174i199207-199607

main90919-15407i199309-199312

main90919-15410i199312-199607

main90919-15410i199309-199408

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15168i199212-199309

main90919-15172i199212-199309

main90919-15177i199207-199607

main90919-15259i199309-199312

main90919-15261i199309-199312

main90919-15261i199312-199607

9046400542

main90464-00542

9046400555

main90464-00555

9046400556

main90464-00556

9046400645

main90464-00645

91611A0614

main91611-A0614

12 parts on this diagram · 3 diagrams in section
