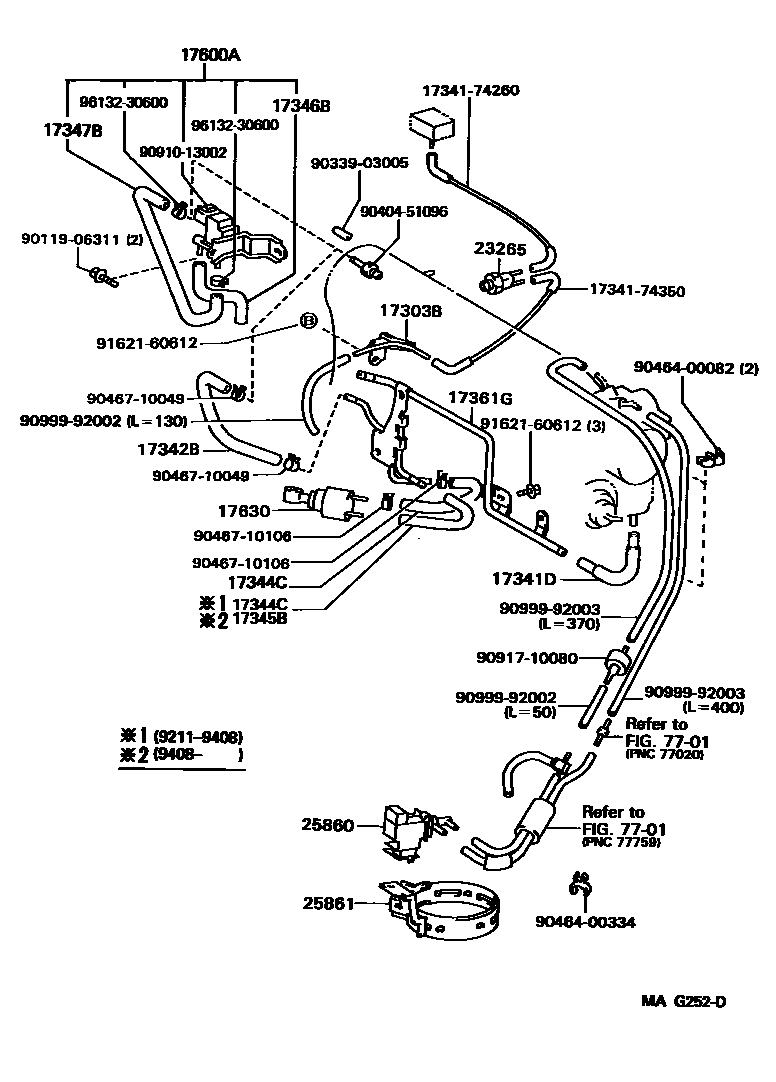

VACUUM PIPING
17303BPIPE SUB-ASSY, AIR, NO.1
17341DHOSE, NO.1(FOR IDLE-UP)
17342BHOSE, NO.2(FOR IDLE-UP)
17344CHOSE, NO.4(FOR IDLE-UP)
17345BHOSE, NO.5(FOR IDLE-UP)
17346BHOSE, AIR, NO.6
17347BHOSE, AIR, NO.7
17361GTUBE, AIR(FOR IDLE-UP)
17600AVALVE ASSY, AIR BY-PASS W/HOSE
17630VALVE ASSY, AIR CONTROL
23265FILTER, GAS, NO.1
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25861BRACKET, VACUUM SWITCHING VALVE
7701
1734174260HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-74260
1734174350HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-74350
9011906311
main90119-06311
9033903005
main90339-03005
9040451096
main90404-51096
9046400082
main90464-00082
9046400334
main90464-00334
9046710049
main90467-10049
9046710106
main90467-10106
9091013002
main90910-13002
9091710080
main90917-10080
9099992002
main90999-92002
9099992003
main90999-92003
9162160612
main91621-60612
9613230600
main96132-30600
29 parts on this diagram · 3 diagrams in section
