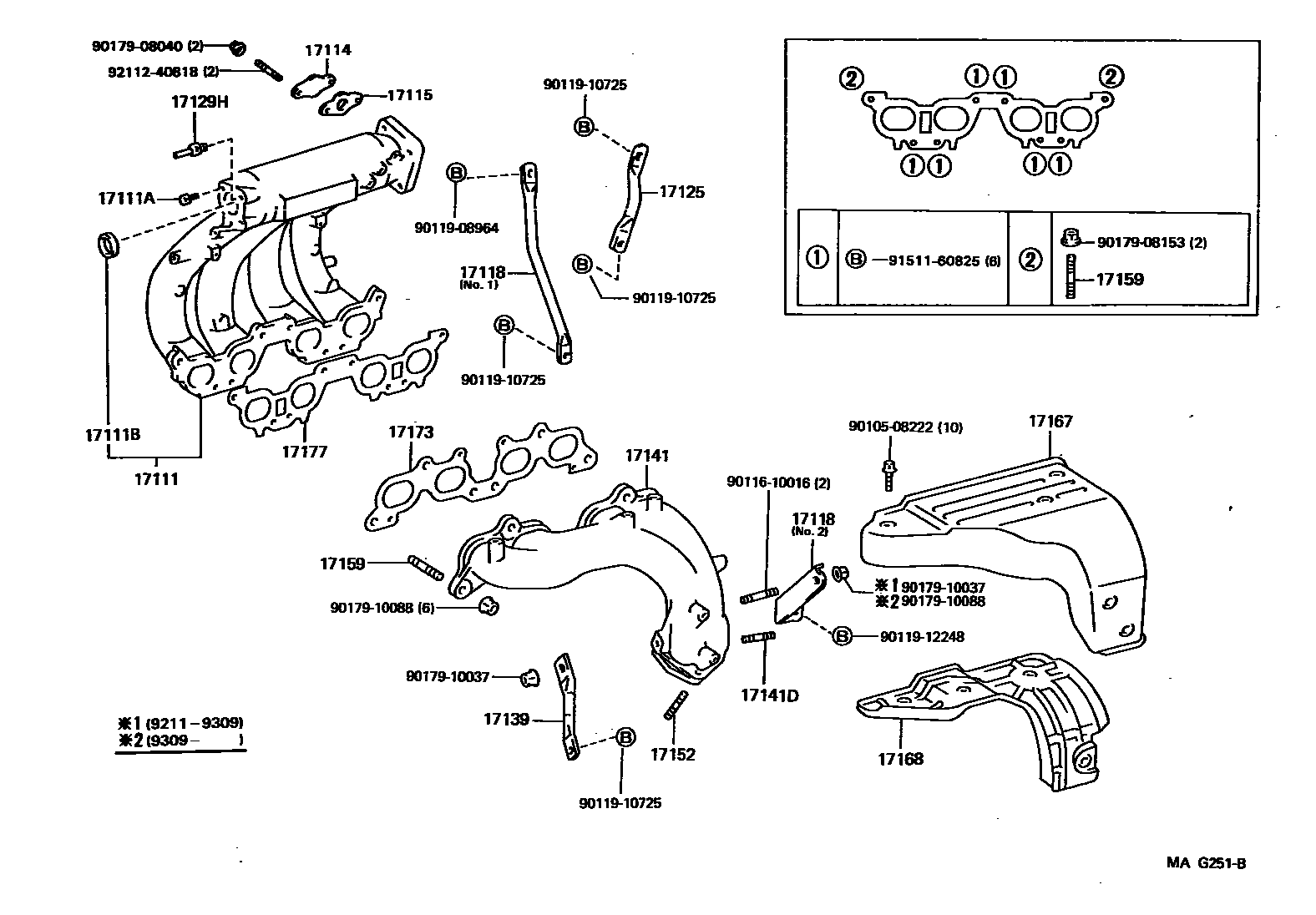

MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17114PLATE, INTAKE MANIFOLD HOLE COVER
17115GASKET, INTAKE MANIFOLD HOLE COVER
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17129HUNION, NO.4
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
EXHAUST SIDE
INTAKE SIDE
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010508222
main90105-08222
9011610016
main90116-10016
9011908964
main90119-08964
9011910725
main90119-10725
9011912248
main90119-12248
9017908040
main90179-08040
9017908153
main90179-08153
9017910037
main90179-10037
9017910088
main90179-10088
9151160825
main91511-60825
9211240818
main92112-40818
29 parts on this diagram · 2 diagrams in section
