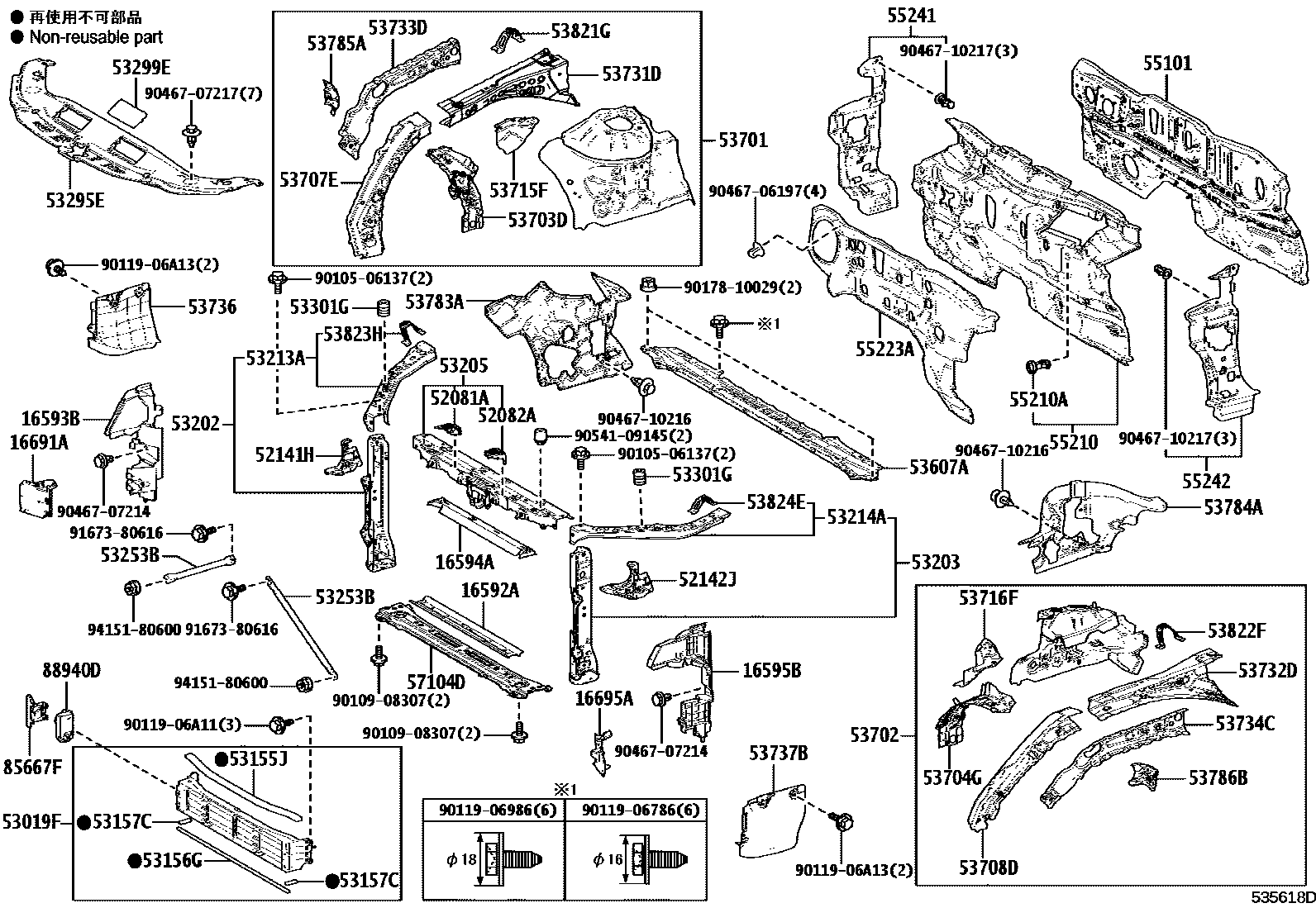

FRONT FENDER APRON & DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010i¥1,830201810-202108

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25090i¥2,900201810-202108

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25010i¥1,540201810-202108

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25080i¥2,840201810-202108

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25060i¥1,430201810-202108

main16691-25130i¥1,180202108

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25060i¥1,610201810-202002

sub16695-25061¥1,340

main16695-25061i¥1,340202003-202108

main16695-25120i¥1,160202108

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-33040i¥1,150201810-202108

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-33030i¥1,150201810-202108

52141HARM, FRONT BUMPER, UPPER RH

main52141-33140i¥1,380201810-202108

52142JARM, FRONT BUMPER, UPPER LH

main52142-33120i¥1,380201810-202108

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020i¥9,100202108

main53019-33060i¥12,100201810-201812

sub53019-33061¥10,100

main53019-33061i¥10,100201901-202108

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120i¥550201810-202108

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010i¥370201810-202108

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010i¥370201810-202108

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-33110i¥7,200201810-202108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33180i¥7,200201810-202108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33902i¥10,100201810-202108

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33903i¥2,810201810-202108

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33903i¥2,810201810-202108

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-33010i¥1,350201810-202108

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33140i¥5,900201810-202108

53299EPLATE, COOL AIR INTAKE DUCT

main53299-33020i¥590201810-202108

53301GCUSHION, HOOD BUMPER

main90541-15033i¥200201810-202108

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-33020i¥9,500201810-202108

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33200i¥27,600201810-202108

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33160i¥27,600201810-202108

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-33060i¥2,440201810-202108

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-33060i¥2,440201810-202108

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-33020i¥3,980201810-202108

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-33010i¥3,980201810-202108

53715FAPRON, FENDER SIDE, RH

main53715-33010i¥1,680201810-202108

53716FAPRON, FENDER SIDE, LH

main53716-33010i¥1,680201810-202108

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33100i¥4,110201810-202108

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33090i¥4,110201810-202108

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33060i¥1,980201810-202108

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33060i¥1,980201810-202108

53736SEAL, FRONT FENDER APRON, RH

main53736-33050i¥1,820201810-202108

53737BSEAL, FRONT FENDER APRON, LH

main53737-33030i¥1,820201810-202108

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-33030i¥2,350201810-202108

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-33040i¥2,210201810-202108

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-33010i¥970201810-202108

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-33010i¥970201810-202108

53821GBRACKET, FRONT FENDER, REAR RH

main53821-33090i¥310201810-202108

53822FBRACKET, FRONT FENDER, REAR LH

main53822-33080i¥310201810-202108

53823HGUSSET, FRONT FENDER, RH

main53823-33060i¥380201810-202108

53824EGUSSET, FRONT FENDER, LH

main53824-33060i¥380201810-202108

55101PANEL SUB-ASSY, DASH

main55101-33480i¥19,100201810-202108

55210INSULATOR ASSY, DASH PANEL

main55210-33350i¥11,400201810-202108

55210ACLIP

main90467-11122i¥100201810-202108

55223AINSULATOR, DASH PANEL, OUTER

main55223-33270i¥5,100201810-202108

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-33040i¥1,460201810-202108

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-33040i¥1,460201810-202108

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-33080i¥6,500201810-202108

85667FCOVER, MOTOR

main85667-10010i¥890201810-202108

88940DACTUATOR ASSY, SWING GRILLE

main88940-33070i¥14,500201810-202007

sub88940-33121¥14,500

main88940-33120i¥14,500202008-202105

sub88940-33121¥14,500

main88940-33121i¥14,500202106-202108

sub88940-33122¥14,500

9010506137

main90105-06137¥70

9010908307

main90109-08307¥80

9011906786

main90119-06786¥90

9011906986

main90119-06986¥60

9011906A11

main90119-06A11¥60

9011906A13

main90119-06A13¥60

9017810029

main90178-10029¥100

9046706197

main90467-06197¥120

9046707214

main90467-07214¥70

9046707217

main90467-07217¥80

9046710216

main90467-10216¥100

9046710217

main90467-10217¥100

9054109145

main90541-09145¥160

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

70 parts on this diagram · 4 diagrams in section
