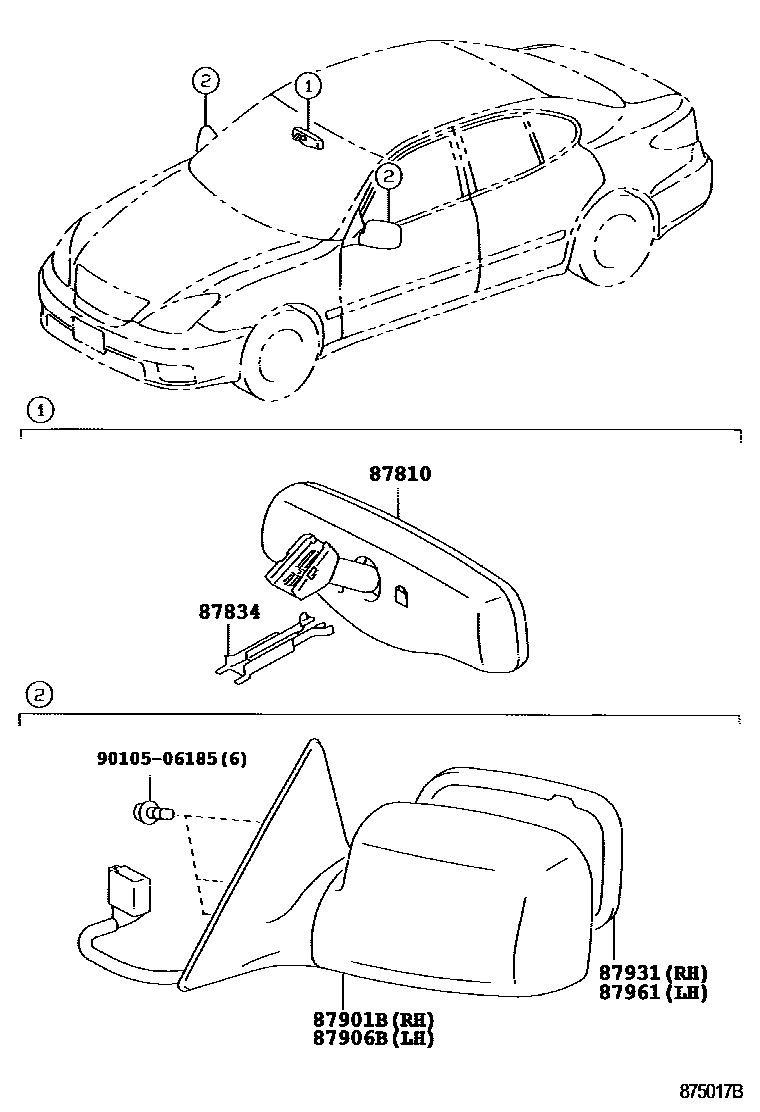

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-AC040iMCV30200107-200406

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-48010iMCV30200408-200603

main87818-AC010iMCV30200107-200406

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-33060-A0iMCV30200406-200603

main87901-33060-B0iMCV30200406-200603

main87901-33060-B1iMCV30200406-200603

main87901-33060-C0iMCV30200406-200603

main87901-33060-D0iMCV30200406-200603

main87901-33060-J0iMCV30200406-200603

main87901-33150-A0iMCV30200107-200406

WHITE PEARL CS.,062

sub87901-33160

main87901-33150-B0iMCV30200107-200406

SILVER ME.,1C0

sub87901-33160

main87901-33150-B1iMCV30200406-200603

GRAY M.M.,1F5

sub87901-33160

main87901-33150-B2iMCV30200406-200603

SILVER ME.,1F7

sub87901-33160

main87901-33150-C0iMCV30200107-200406

BLACK,202

sub87901-33160

main87901-33150-D0iMCV30200107-200406

DK.RED MC.,3Q2

sub87901-33160

main87901-33150-H0iMCV30200107-200406

LT. AQUA M.M.,772

sub87901-33160

main87901-33150-J0iMCV30200406-200603

DARK BLUE MC.,8P8

sub87901-33160

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-33070-A0iMCV30200406-200603

main87906-33070-B0iMCV30200406-200603

main87906-33070-B1iMCV30200406-200603

main87906-33070-C0iMCV30200406-200603

main87906-33070-D0iMCV30200406-200603

main87906-33070-J0iMCV30200406-200603

main87906-33160-A0iMCV30200107-200406

WHITE PEARL CS.,062

main87906-33160-B0iMCV30200107-200406

SILVER ME.,1C0

main87906-33160-B1iMCV30200406-200603

GRAY M.M.,1F5

main87906-33160-B2iMCV30200406-200603

SILVER ME.,1F7

main87906-33160-C0iMCV30200107-200406

BLACK,202

main87906-33160-D0iMCV30200107-200406

DK.RED MC.,3Q2

main87906-33160-H0iMCV30200107-200406

LT. AQUA M.M.,772

main87906-33160-J0iMCV30200406-200603

DARK BLUE MC.,8P8

87931OUTER MIRROR, RH

main87931-33600iMCV30200107-200307

main87931-41090iMCV30200406-200603

87961MIRROR OUTER, LH

main87961-3A170iMCV30200107-200307

main87961-41080iMCV30200307-200406

9010506185

main90105-06185

7 parts on this diagram · 1 diagram in section
