SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1COWL 0005 1COLLUME 0006 1COLLUME 0007 1INSTRUMENT PANEL 0008 1DOOR,FLOOR,SEAT

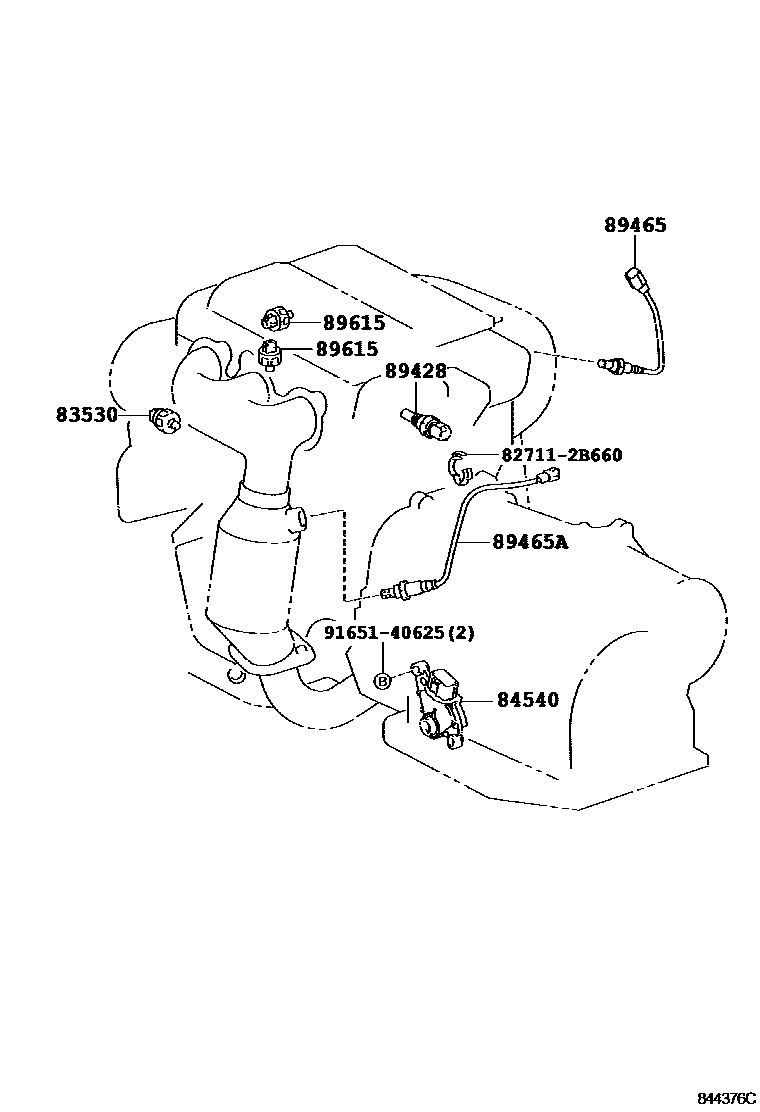

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCV30200107-200406

main83530-60020iMCV30200107-200406

main83530-AA011iMCV30200406

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-12230iMCV30200107-200307

sub84540-32110

main84540-48010iMCV30200307-200603

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-41010iMCV30200107-200406

89465SENSOR, OXYGEN

main89465-33280iMCV30200107-200603

89465ASENSOR, OXYGEN NO.2

main89465-33270iMCV30200107-200307

main89465-33390iMCV30200307-200603

89615SENSOR, KNOCK CONTROL

main89615-12090iMCV30200107-200406

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

9165140625

main91651-40625

8 parts on this diagram · 8 diagrams in section
