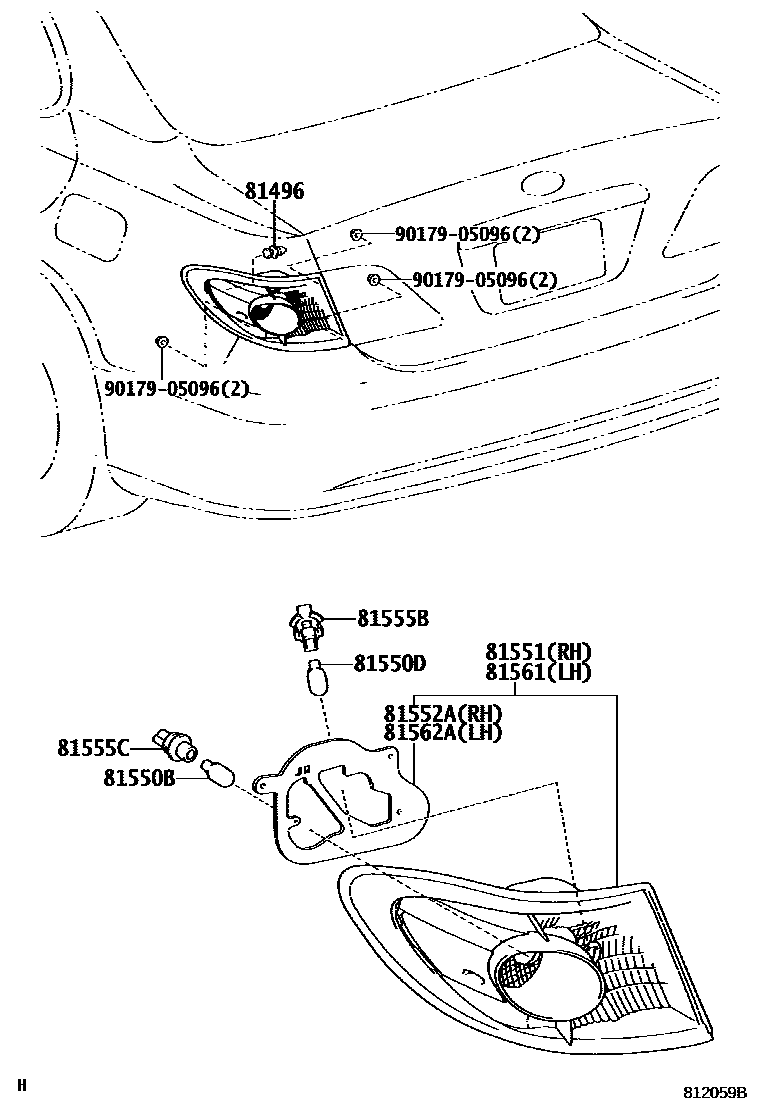

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iMCV30200107-200406

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15011iMCV30200107-200408

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044iMCV30200107-200603

81551LENS, REAR COMBINATION LAMP, RH

main81551-33290iMCV30200107-200406

main81551-33300iMCV30200107-200406

main81551-33440iMCV30200406

main81551-33450iMCV30200406

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-33280iMCV30200211-200406

main81552-33430iMCV30200406-200409

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33440iMCV30200406-200409

sub81555-33441

main81555-33441iMCV30200409

81555BSOCKET PLUG, NO.1

main90075-60002iMCV30200107-200406

81555CSOCKET PLUG, NO.2

main90075-60026iMCV30200107-200406

81561LENS, REAR COMBINATION LAMP, LH

main81561-33290iMCV30200107-200406

main81561-33300iMCV30200107-200406

main81561-33440iMCV30200406

main81561-33450iMCV30200406

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-33280iMCV30200211-200406

main81562-33430iMCV30200406-200409

9017905096

main90179-05096

11 parts on this diagram · 2 diagrams in section
