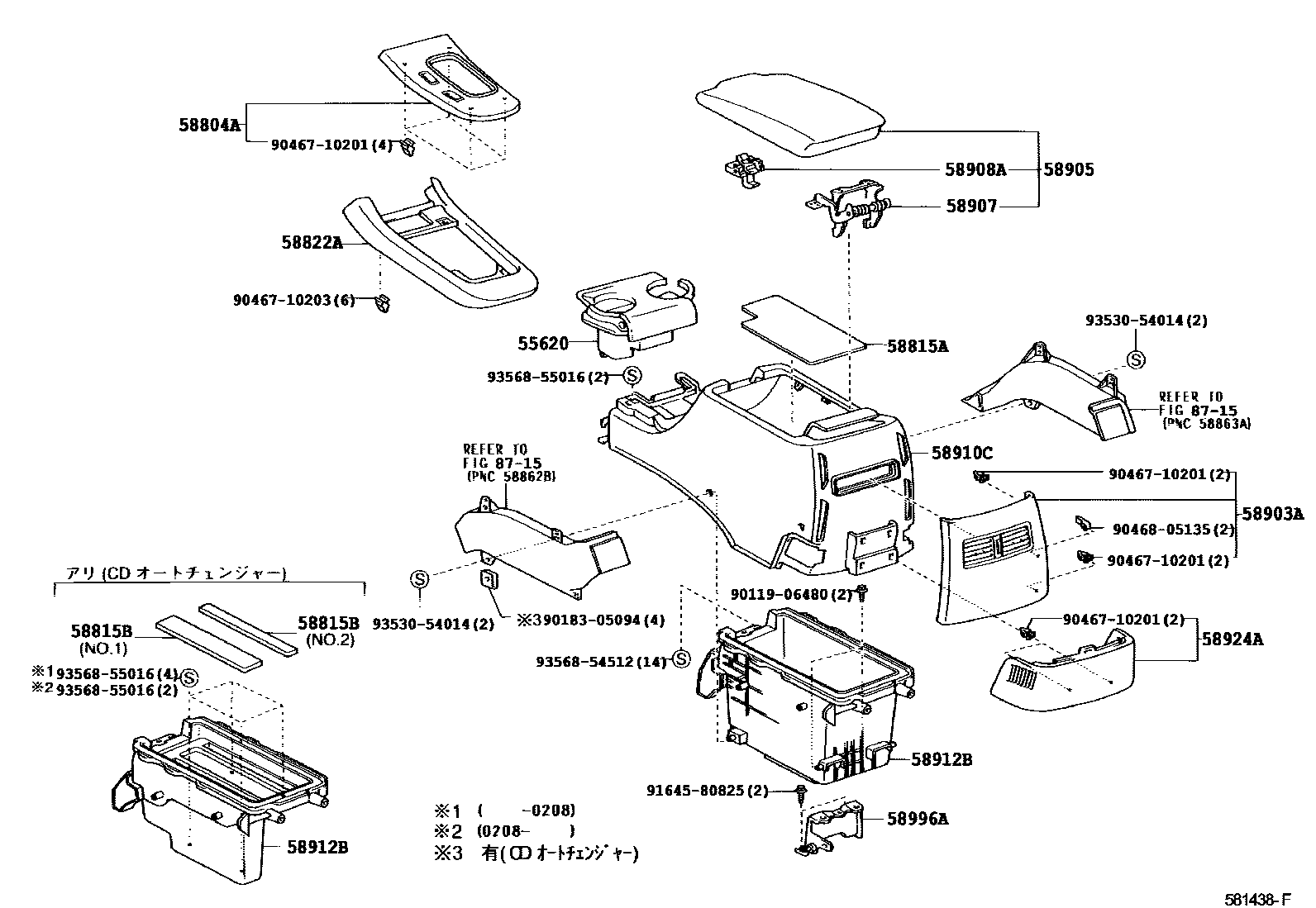

CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
REDDISH BROWN,TRIM2#
LIGHT BROWN,TRIM0#
58815ACARPET, CONSOLE BOX
58815BCARPET, CONSOLE BOX
58822APANEL, CONSOLE, UPPER REAR
58903APANEL SUB-ASSY, CONSOLE REAR END
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
58912BBOX, REAR CONSOLE, LOWER
58924APANEL, CONSOLE REAR END, NO.2
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8715
9011906480
9018305094
9046710201
9046710203
9046805135
9164580825
9353054014
9356854512
9356855016
23 parts on this diagram · 1 diagram in section
