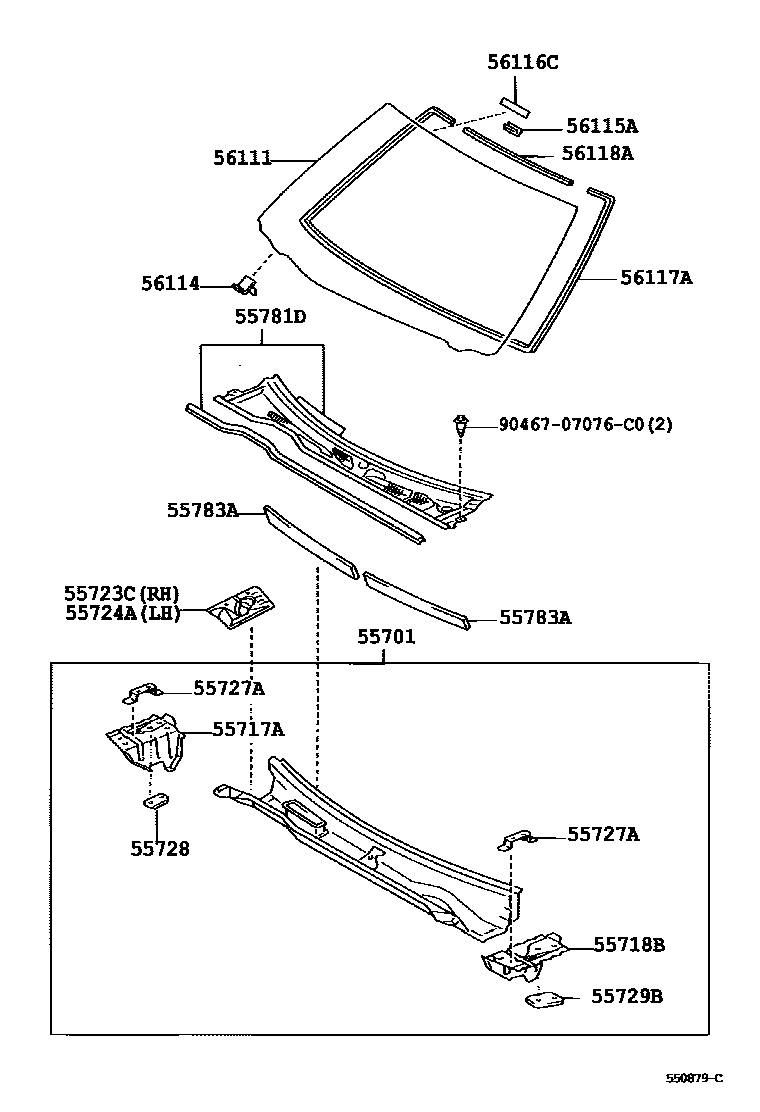

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-33240iMCV30200107-200406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030iMCV30200107-200203

main55717-33031iMCV30200203-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030iMCV30200107-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030iMCV30200107-200406

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33030iMCV30200107-200406

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030×2iMCV30200107-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020iMCV30200107-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020iMCV30200107-200406

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-33060iMCV30200107-200406

55783APAD, COWL TOP SILENCER

main55783-33050×2iMCV30200406

56111GLASS, WINDSHIELD

main56101-33510iMCV30200406

main56101-33520iMCV30200107-200406

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iMCV30200107-200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iMCV30200107-200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iMCV30200107-200406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33070iMCV30200107-200406

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-33060iMCV30200107-200406

9046707076C0

main90467-07076C0

17 parts on this diagram · 1 diagram in section
