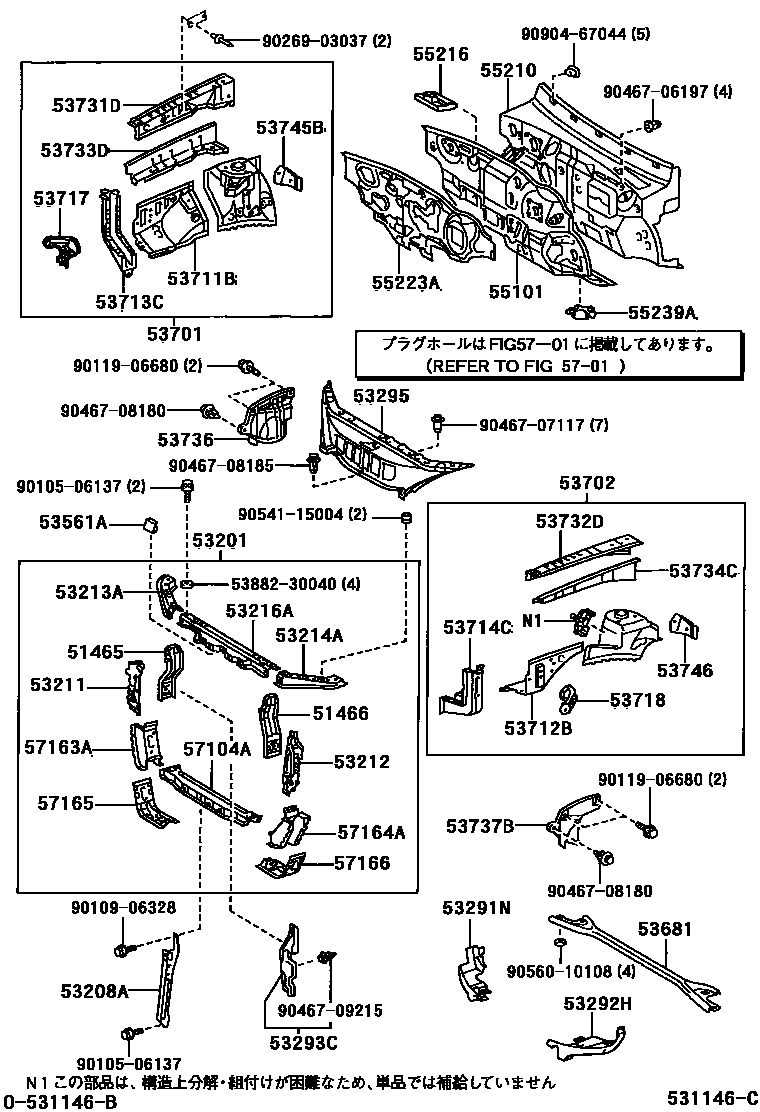

FRONT FENDER APRON & DASH PANEL
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53291NSEAL, RADIATOR SUPPORT TO FRAME, RH
53292HSEAL, RADIATOR SUPPORT TO FRAME, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53561AGUIDE, HOOD AUXILIARY CATCH HOOK
53681BRACE, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
5388230040PACKING, FRONT FENDER MAIN
main53882-30040
9010506137
main90105-06137
9010906328
main90109-06328
9011906680
main90119-06680
9026903037
main90269-03037
9046706197
main90467-06197
9046707117
main90467-07117
9046708180
main90467-08180
9046708185
main90467-08185
9046709215
main90467-09215
9054115004
main90541-15004
9056010108
main90560-10108
9090467044
main90904-67044
55 parts on this diagram · 1 diagram in section
