SPARE WHEEL CARRIER

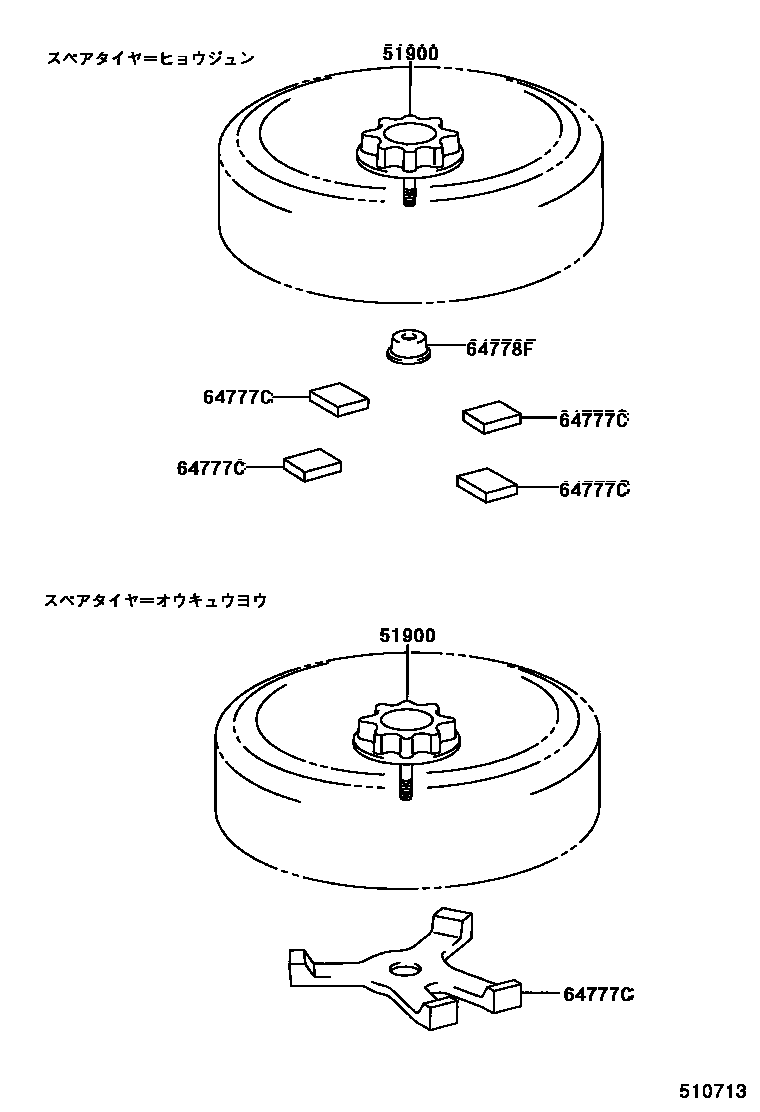

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51931-21030i200107-200406

main51931-22040i200107-200406

64777CCUSHION, SPARE WHEEL

main64777-22060i200107-200304

main64777-33020i200107-200406

main64778-32030i200304-200406

64778FPROTECTOR, SPARE WHEEL

main64778-33030i200107-200406

3 parts on this diagram · 1 diagram in section
