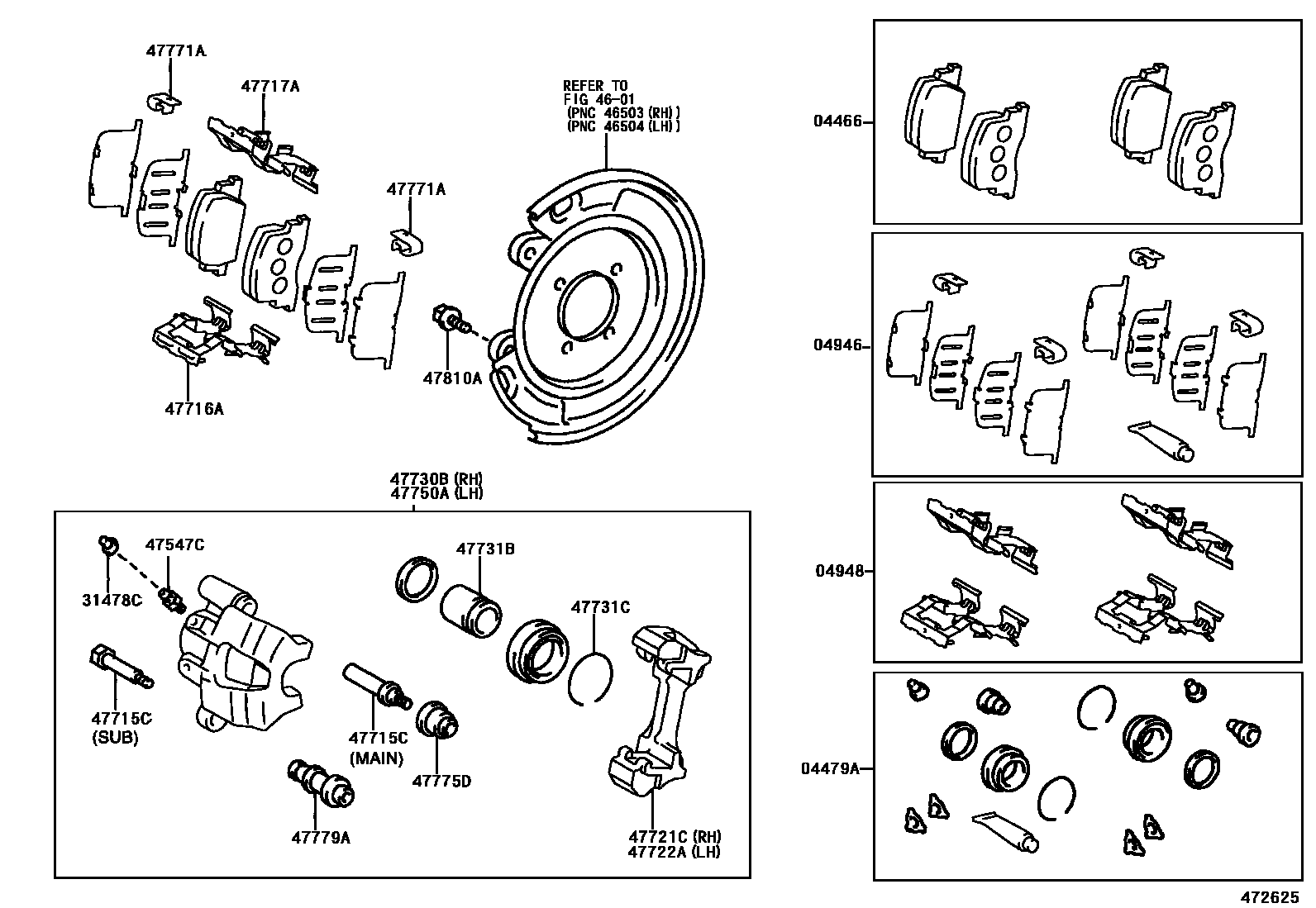

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33090iMCV30200107-200406

main04466-33140iMCV30200406

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48030iMCV30200107-200406

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33020iMCV30200107-200406

04948FITTING KIT, DISC BRAKE, REAR

main04948-33020iMCV30200107-200406

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCV30200107-200406

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCV30200107-200406

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020iMCV30200107-200406

main47715-32030iMCV30200107-200406

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33120iMCV30200107-200406

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33090iMCV30200107-200406

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-33150iMCV30200107-200406

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-33150iMCV30200107-200406

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-33210iMCV30200107-200406

47731BPISTON, REAR DISC BRAKE

main47731-48020iMCV30200107-200406

sub47731-30120

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iMCV30200107-200406

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-33210iMCV30200107-200406

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iMCV30200107-200406

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iMCV30200107-200406

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030iMCV30200107-200406

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCV30200107-200603

20 parts on this diagram · 1 diagram in section
