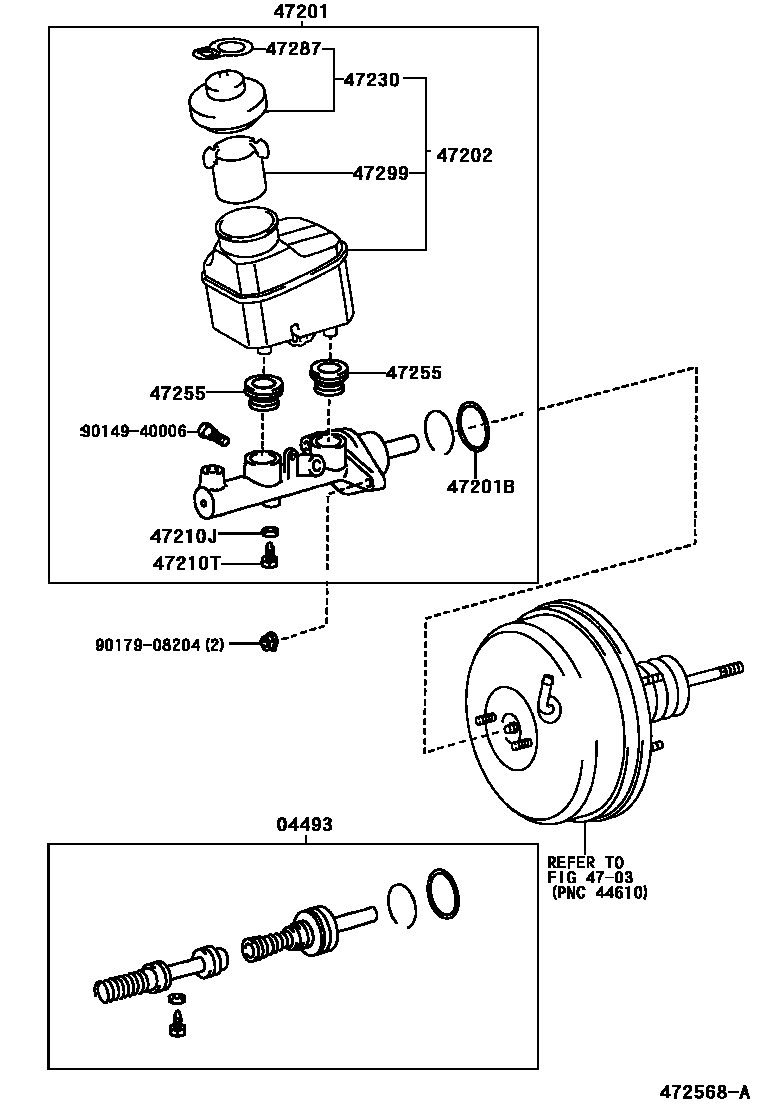

BRAKE MASTER CYLINDER

0001 1 0002 1��(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-33110iMCV30200107-200406

main04493-33120iMCV30..30X200107-200406

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33370iMCV30200107-200406

main47201-33420iMCV30..30X200107-200406

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCV30200107-200406

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33160iMCV30200107-200406

main47220-33210iMCV30200107-200406

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV30200112-200406

main90430-06104iMCV30200107-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV30200107-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iMCV30200107-200406

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV30200107-200406

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCV30200107-200406

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCV30200107-200406

9014940006

main90149-40006

9017908204

main90179-08204

13 parts on this diagram · 2 diagrams in section
