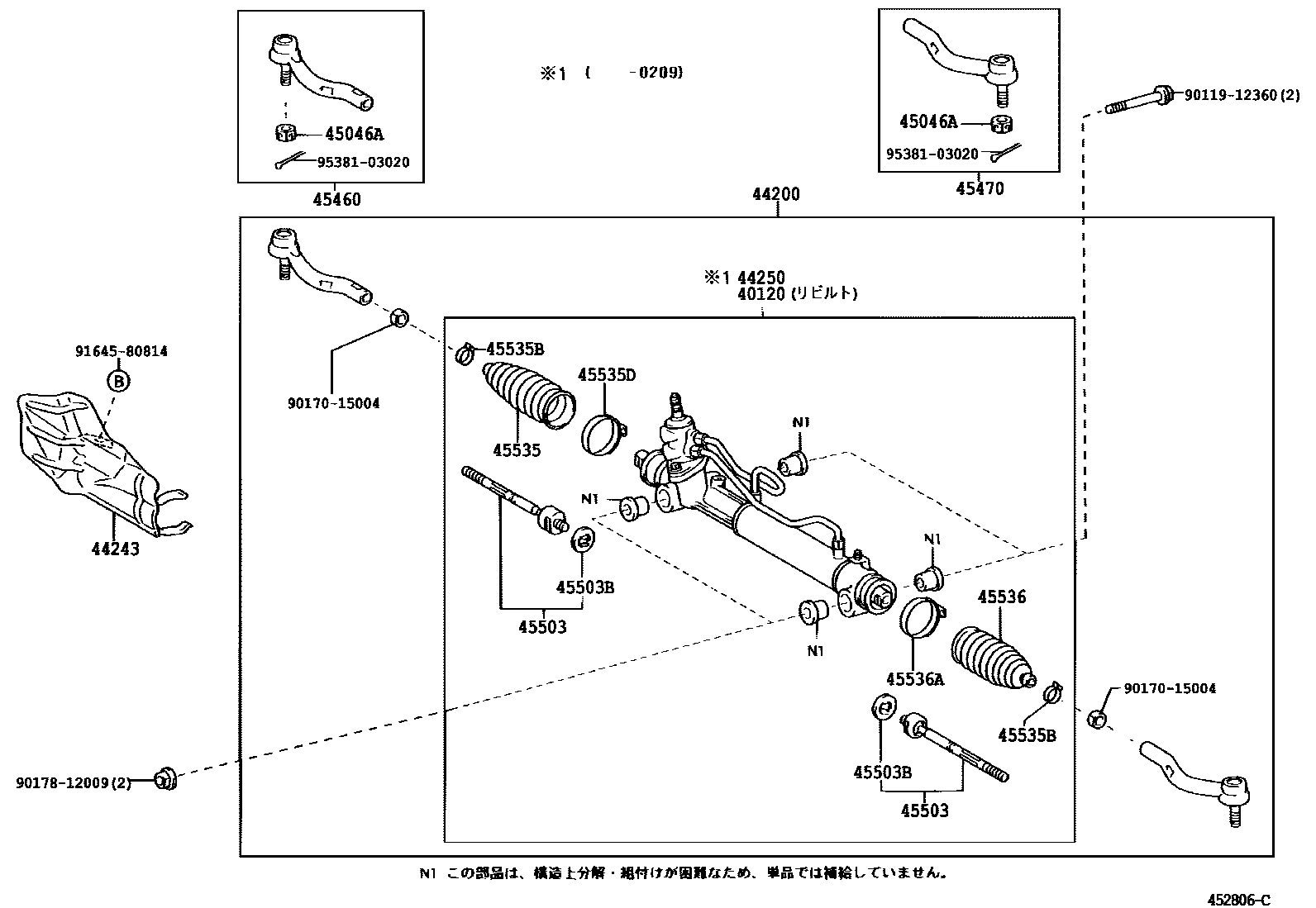

FRONT STEERING GEAR & LINK

0001 1 0002 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-33390iMCV30200107-200301

sub40120-33391

main40120-33391iMCV30200301-200406

44200LINK ASSY, POWER STEERING

main44200-33390iMCV30200107-200301

sub44200-33391

main44200-33391iMCV30200301-200307

sub44250-33391

main44200-33392iMCV30200307-200406

sub44250-33391

sub45460-39635

sub45470-39225

sub90170-15004

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-33020iMCV30200107-200406

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33390iMCV30200107-200209

sub44200-33390

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCV30200107-200406

45460ROD ASSY, TIE, RH

main45460-39615iMCV30200107-200307

main45460-39635iMCV30200307-200406

45470ROD ASSY, TIE, LH

main45470-39215iMCV30200107-200307

main45470-39225iMCV30200307-200406

45503END SUB-ASSY, STEERING RACK

main45503-39225iMCV30200107-200406

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009iMCV30200107-200406

45535BOOT, STEERING RACK, NO.1

main45535-06030iMCV30200107-200406

main45535-33030iMCV30200107-200406

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153iMCV30200107-200406

main90467-19017iMCV30200107-200204

sub90467-19021

main90467-19021iMCV30200204-200406

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46293iMCV30200107-200406

main90460-58007iMCV30200107-200406

45536BOOT, STEERING RACK, NO.2

main45535-06030iMCV30200107-200406

main45535-33030iMCV30200107-200406

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46293iMCV30200107-200406

main90460-58007iMCV30200107-200406

9011912360

main90119-12360

9017015004

main90170-15004

9017812009

main90178-12009

9164580814

main91645-80814

9538103020

main95381-03020

19 parts on this diagram · 2 diagrams in section
