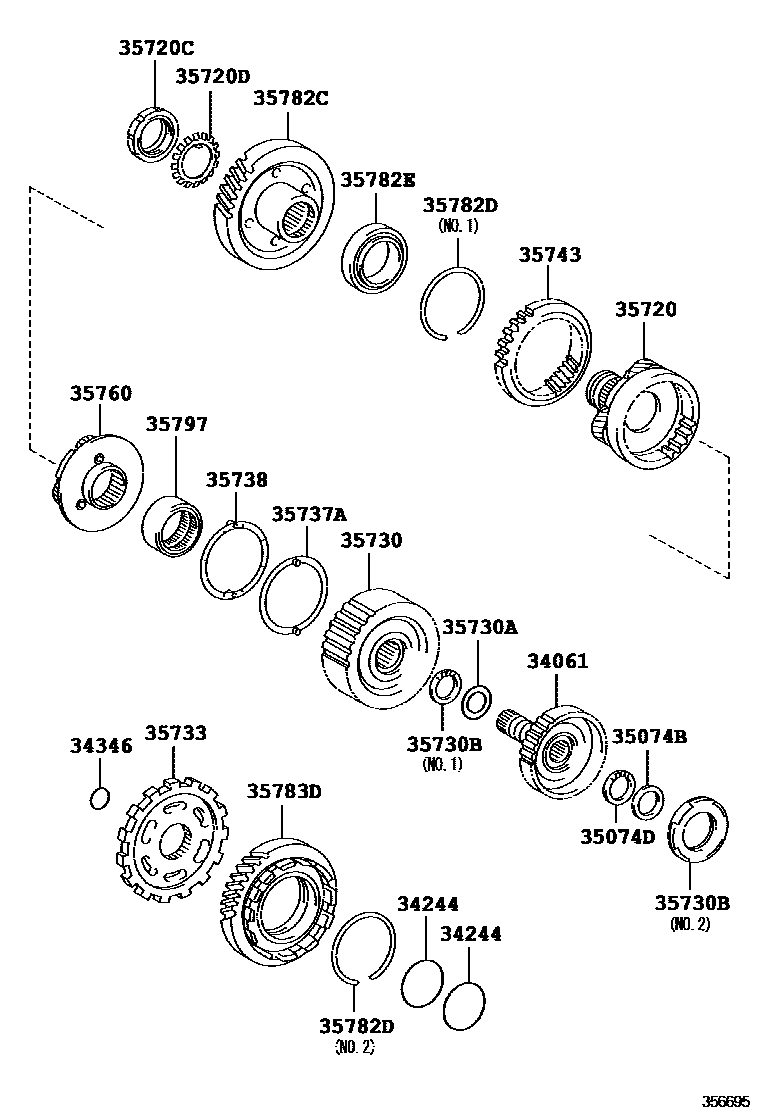

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34061HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH

main34061-33010iMCV30200107-200406

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iMCV30200107-200406

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-28010iMCV30200107-200406

sub34346-21011

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-33030iMCV30200107-200406

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-25010iMCV30200107-200406

35720GEAR ASSY, FRONT PLANETARY

main35720-28030iMCV30200108-200207

sub35720-28070

main35720-28070iMCV30200207-200406

main35720-33040iMCV30200107-200108

sub35720-28030

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iMCV30200107-200406

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iMCV30200107-200406

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33010iMCV30200107-200601

sub35730-33011

main35730-33011iMCV30200601

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iMCV30200107-200406

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-31007iMCV30200107-200406

main90374-55002iMCV30200406

main90374-55002iMCV30200107-200406

main90374-55003iMCV30200406

35733GEAR, PARKING LOCK

main35733-48010iMCV30200107-200406

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-28010iMCV30200107-200210

main35737-28020iMCV30200210-200406

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-33030iMCV30200107-200406

35743GEAR, FRONT PLANETARY RING

main35743-28010iMCV30200107-200406

35760GEAR ASSY, REAR PLANETARY

main35760-33040iMCV30200107-200406

sub35760-42010

sub35737-42010

35782CGEAR, COUNTER DRIVE

main35782-28010iMCV30200107-200406

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-87004iMCV30200107-200603

main90520-89002iMCV30200107-200406

sub90520-89004

main90520-89004iMCV30200406-200603

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iMCV30200107-200406

35783DGEAR, COUNTER DRIVEN

main35783-28010iMCV30200107-200406

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iMCV30200107-200406

21 parts on this diagram · 1 diagram in section
