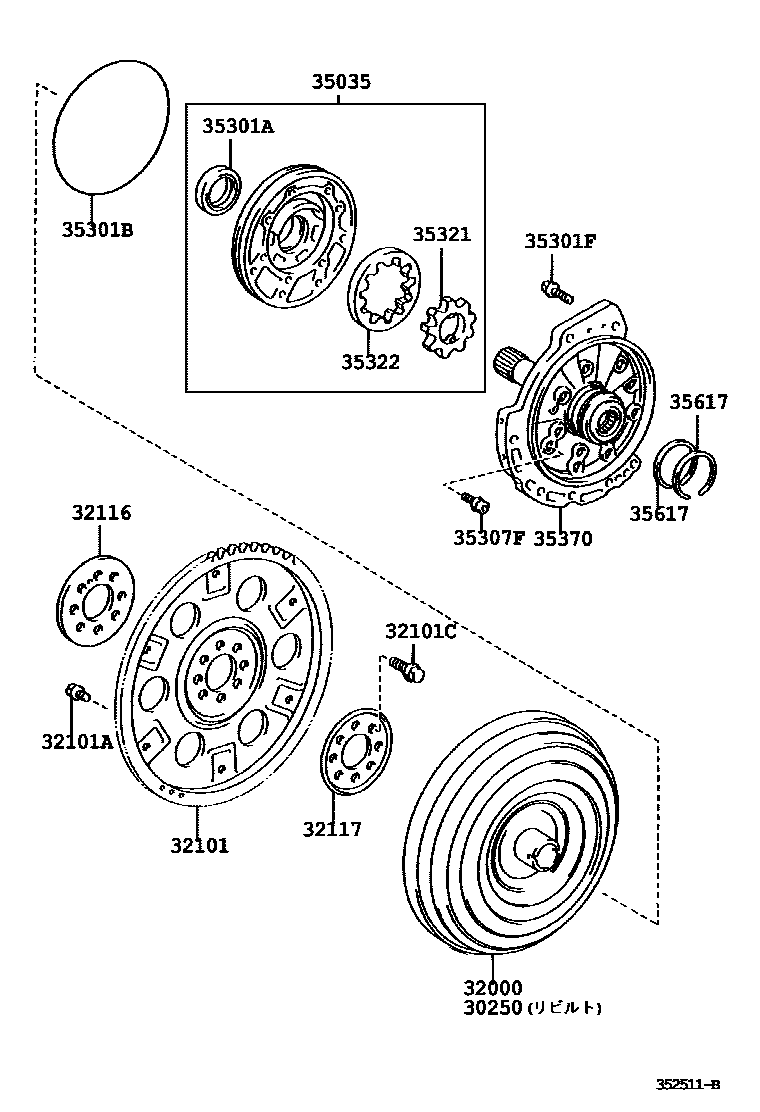

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-33110iMCV30200107-200603

32000CONVERTER ASSY, TORQUE

main32000-33110iMCV30200107-200603

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06010iMCV30200406

main32101-33010iMCV30200107-200211

sub32101-48010

main32101-48010iMCV30200211-200406

main32101-48010iMCV30200406

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMCV30200107-200406

main90109-09001iMCV30200406

main90119-09025iMCV30200406

main90119-09025iMCV30200107-200406

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iMCV30200107-200603

32116SPACER, DRIVE PLATE, FRONT

main32116-32020iMCV30200107-200406

32117SPACER, DRIVE PLATE, REAR

main32117-32020iMCV30200107-200406

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-33020iMCV30200107-200406

sub35035-12080

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iMCV30200107-200406

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99099iMCV30200107-200406

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iMCV30200107-200406

main90105-08198iMCV30200406

35307FBOLT (FOR STATOR SHAFT)

main90148-60027iMCV30200107-200406

35321GEAR, FRONT OIL PUMP DRIVE

main35321-33060iMCV30200107-200406

main35321-33070iMCV30200107-200406

main35321-33080iMCV30200107-200406

main35321-33090iMCV30200107-200406

main35321-33100iMCV30200107-200406

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-33060iMCV30200107-200406

main35322-33070iMCV30200107-200406

main35322-33080iMCV30200107-200406

main35322-33090iMCV30200107-200406

main35322-33100iMCV30200107-200406

35370SHAFT ASSY, STATOR

main35370-28010iMCV30200107-200406

sub35370-12110

35617RING, CLUTCH DRUM OIL SEAL

main35613-21010iMCV30200107-200406

16 parts on this diagram · 1 diagram in section
