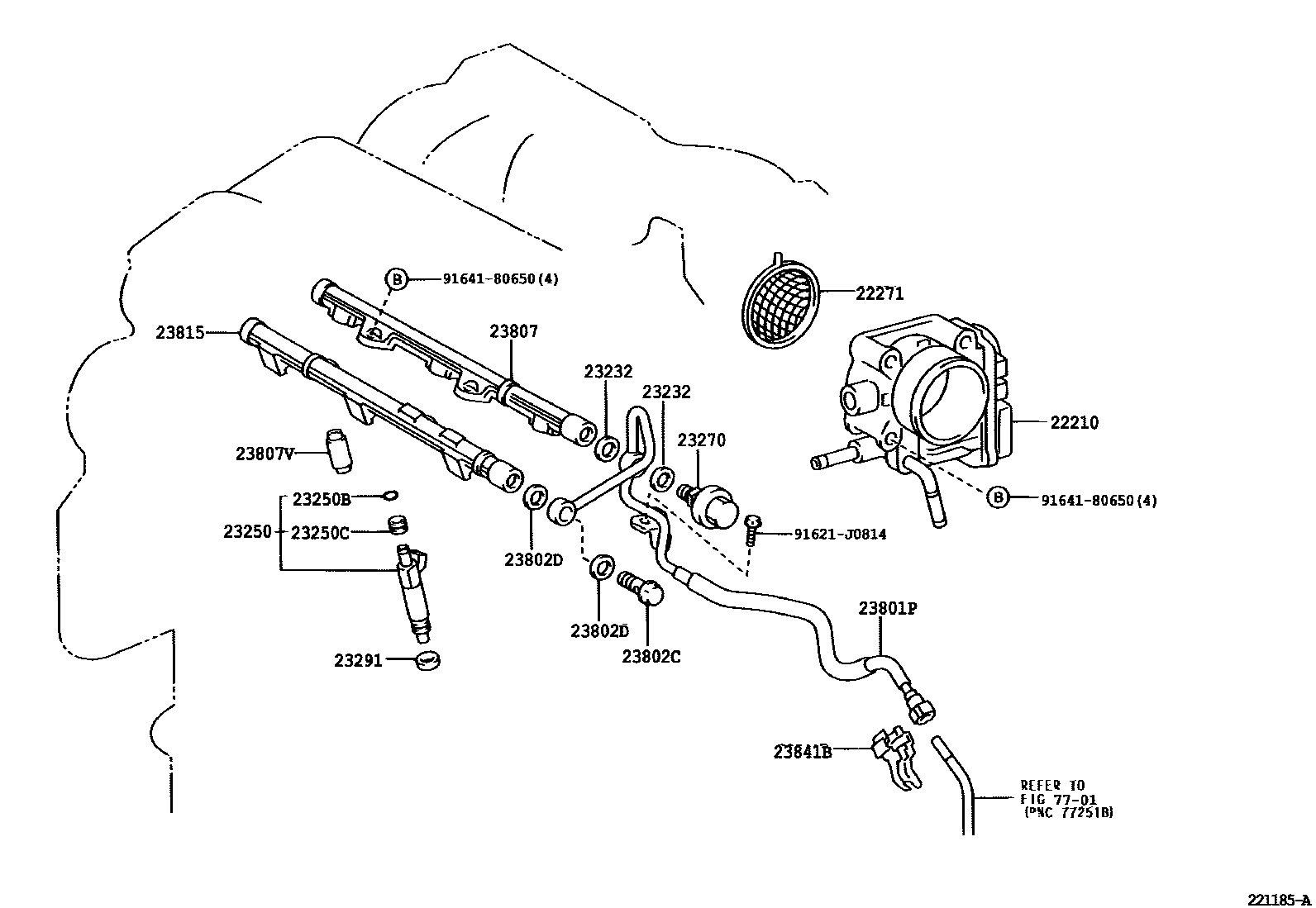

FUEL INJECTION SYSTEM

22210BODY ASSY, THROTTLE

main22030-20040i1MZFE..MCV30200107-200406

22271GASKET, THROTTLE BODY

main22271-20040i1MZFE..MCV30200107-200406

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i1MZFE..MCV30200107-200406

23250INJECTOR ASSY, FUEL

main23209-20030i1MZFE..MCV30200107-200406

sub23209-20040

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1MZFE..MCV30200107-200502

main90301-07037i1MZFE..MCV30200502

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1MZFE..MCV30200107-200406

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-62010i1MZFE..MCV30200107-200410

sub23270-62011

main23270-62011i1MZFE..MCV30200410

sub23207-20010

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1MZFE..MCV30200107-200406

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20150i1MZFE..MCV30200107-200406

main23801-20190i1MZFE..MCV30200406

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i1MZFE..MCV30200107-200406

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026i1MZFE..MCV30200107-200406

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCV30200107-200401

sub23814-20021

main23814-20021i1MZFE..MCV30200401-200406

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCV30200107-200406

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i1MZFE..MCV30200107-200401

sub23815-20021

main23815-20021i1MZFE..MCV30200401-200406

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i1MZFE..MCV30200107-200406

7701

91621J0814

main91621-J0814

9164180650

main91641-80650

18 parts on this diagram · 1 diagram in section
